MasterCraft 058-8489-4 User Manual

OPERATING INSTRUCTIONS
17

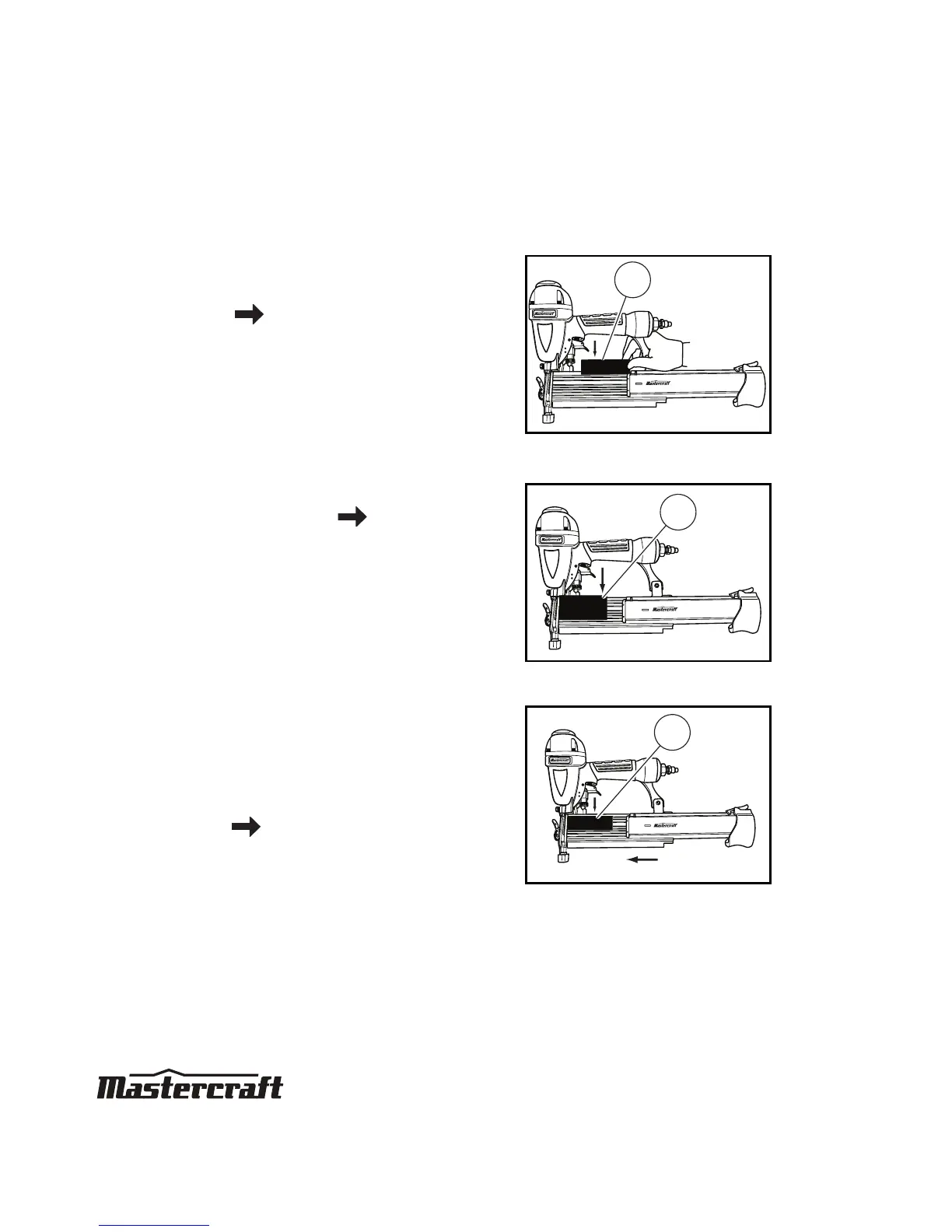

AIR-POWERED 3-IN-1 NAILER 058-8489-4
INSERTION METHODS
The Mastercraft
®
Air-powered 3-in-1 Nailer drives finishing nails, brad nails, and staples, which are
to be inserted using different insertion methods.
1. Finishing nails: Insert the nails (1) from
the top area of magazine into the centre
slot at the top of the magazine
(fig E) .
(see nail type icon on page 19)
2. Brad nails: Insert the brad nails (1) into
the channel along the left side of the
magazine
(fig F) . (see nail type
icon on page 19)
3. 7/32 Narrow Crown Staples: Insert the
staples (1) from the top area of the
magazine with one arm of the staple in
the centre slot of the magazine and the
other arm along the left side of the
magazine
(fig G) .
(see nail type icon on page 19)
MC-588489-06
fig E
1
MC-588489-07
fig F
1
MC-588489-08
fig G
1

MasterCraft 058-8489-4 Specifications

General

Brand	MasterCraft
Model	058-8489-4
Category	Nail Gun
Language	English
