INSTALLATION INSTRUCTIONS
2

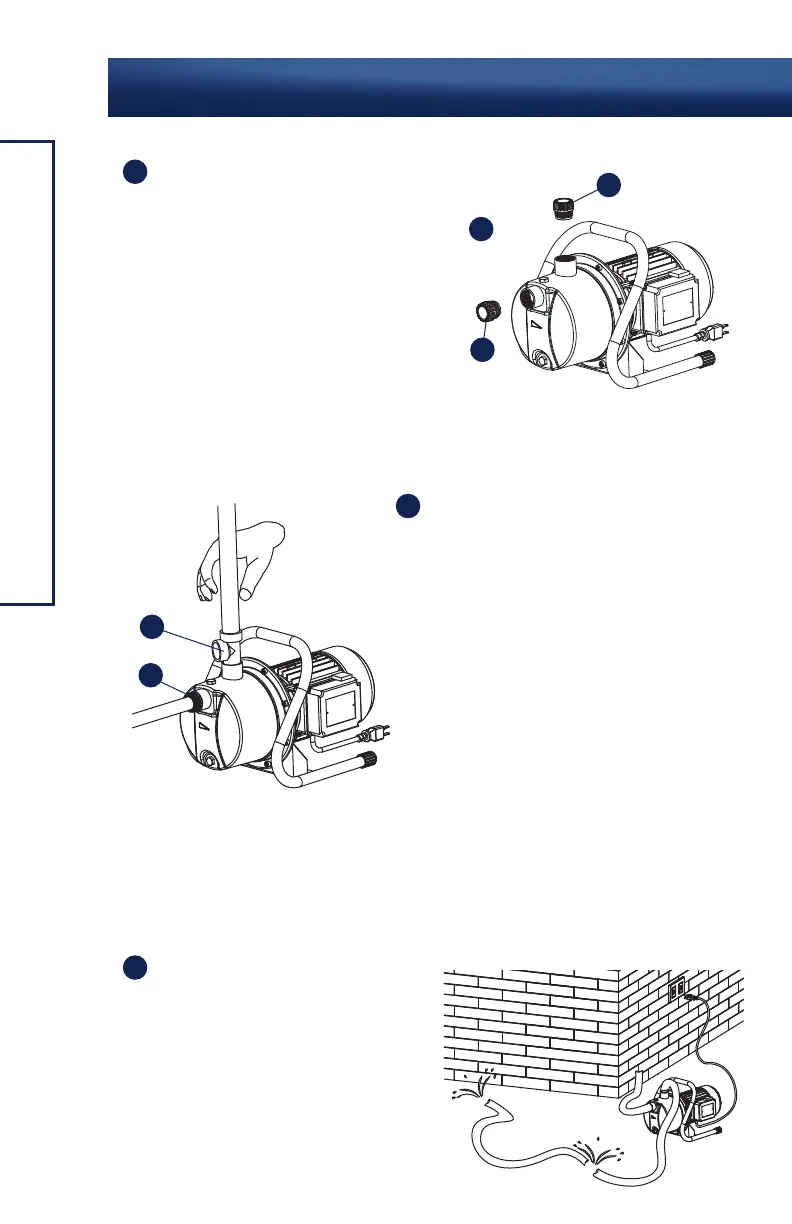

Positioning the Hose Adaptors
a. Wrap threads of discharge tee (sold
separately) with thread tape.
b. Thread a 1" (2.5 cm) discharge tee
(2) into the outlet of the pump.
c. Thread hose adaptors (B) into pump
outlet and into the discharge tee (2).
Note: Discharge tee is optional.
CAUTION: A|I connections must be
airtight. A single leak will prevent proper
operation of the pump and may cause
the pump to run dry. This will void the
warranty.
3
4
Installing the Pump:
a. Connect a 3/4" (1.9 cm) heavy-duty garden
hose (sold separately) to the pump inlet (1).
The inlet connection can also be used with 1"
(2.5 cm) PVC pipe (Note: If you are using a PVC
pipe, you will need a 1" (2.5 cm) male NPT X
slip adaptor).
Notice: The inlet hose must be a reinforced type
when pumping from lakes, ponds, or small
streams. A regular garden hose will collapse and
lead to pump failure.
Note: A foot valve MUST be used to maintain
prime during operation. Foot valves are sold
separately.
b. Connect an outlet pipe or 3/4" (1.9 cm)
standard garden hose (sold separately) to the
discharge tee (2). The outlet connection is
designed for a 1" (2.5 cm) NPT thread. Rigid
pipes such as PVC or a garden hose may be
used.
Connect your discharge hose to a
standard lawn sprinkler (maximum
2 sprinklers).
Note: This pump (A) is not designed to
be used with underground, pop-up
sprinklers (zoned systems). If you have
this type of system, purchase a
higher-capacity lawn or irrigation pump.
8
B
2
B
2
1
