INSTALLATION PREPARATION
Estimated Assembly Time (new installation): 30 minutes (or longer if installing
new sump pit).
Materials Required for Assembly (not included): Thread-sealant Tape, 2” (5 cm)
Check valve, 2” (5 cm) Elbow, 2” (5 cm) Union, 2” (5 cm) Nipple Pipe, 2” (5 cm)
Gate Valve
Tools Required for Assembly (not included): Wrench, Cross-head Screwdriver

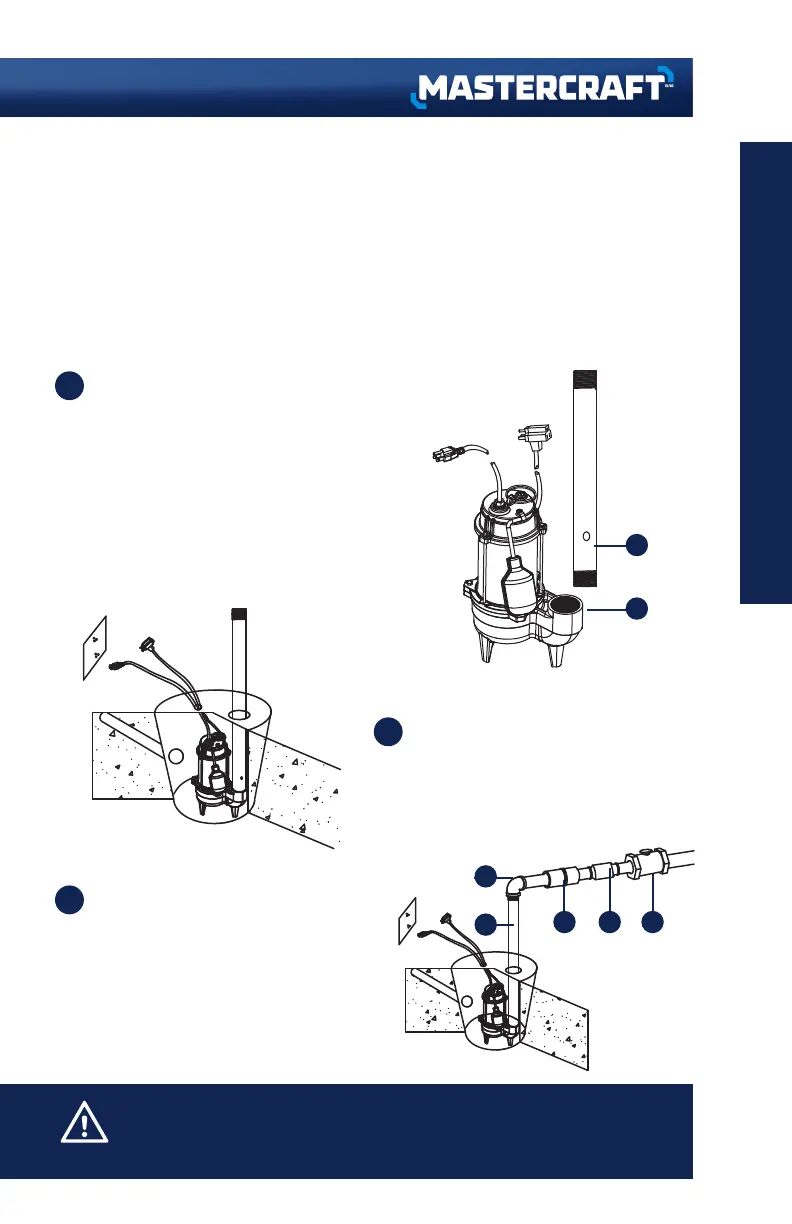

Connecting a discharge pipe to
the pump.
Wrap the threads of the
2” (5 cm) discharge pipe (1)
with thread-sealant tape.
Attach the discharge pipe (1) to
the discharge of the pump (2).
INSTALLATION INSTRUCTIONS
1
Connecting the check valve.
Connect the discharge pipe (1) to
the elbow (2), union (3), check
valve (4), and gate valve (5.)
3
2
2
1
Placing the pump in a basin.
Place the pump on a hard
surface inside a sewage basin.
53 4
2
1
WARNING:
Always use handle to lift pump. Never use power cord to lift pump. To avoid skin burns, unplug
and allow time for the pump to cool after periods of extended use.
