INSTALLING SANDPAPER
In order to properly adhere to the
accessories, the sandpaper that is used for
the detail and contour sander accessories
must be of the hook & loop design. The
following instructions describe how to
apply the sandpaper to each type of
sanding accessory.
Detail sander pad
Sandpaper pads are pre-cut to fit the
triangular shape of the detail sander
accessory. In order to apply the
sandpaper, align the pre-cut sandpaper (1)
with the bottom of the detail sander
accessory, and press it firmly onto the
base (2) (Fig. 10).
Contour sanding pads
Sandpaper pads are pre-cut into
rectangular pieces that will fit the shape of
the various contour sander accessories. In
order to apply the sandpaper, align the
pre-cut sandpaper with the “hooked”
bottom and side surfaces of the selected
contour accessory, and press it firmly onto
the hooked surfaces (Fig. 11, 12 & 13).
NOTES:
a) Apply the sandpaper to the accessory
so that it extends to the top of the rubber
pad.
b) If the sheet of sandpaper is too large to
fit the contour accessory properly, trim the
sandpaper to the proper size using an old
pair of scissors.
INSTALLING THE PAD ONTO THE
SANDER
1. Rotate the pad locking lever (1) counter-
clockwise in order to open the pad clamp
(2) (Fig. 14).
ASSEMBLY AND OPERATING INSTRUCTIONS

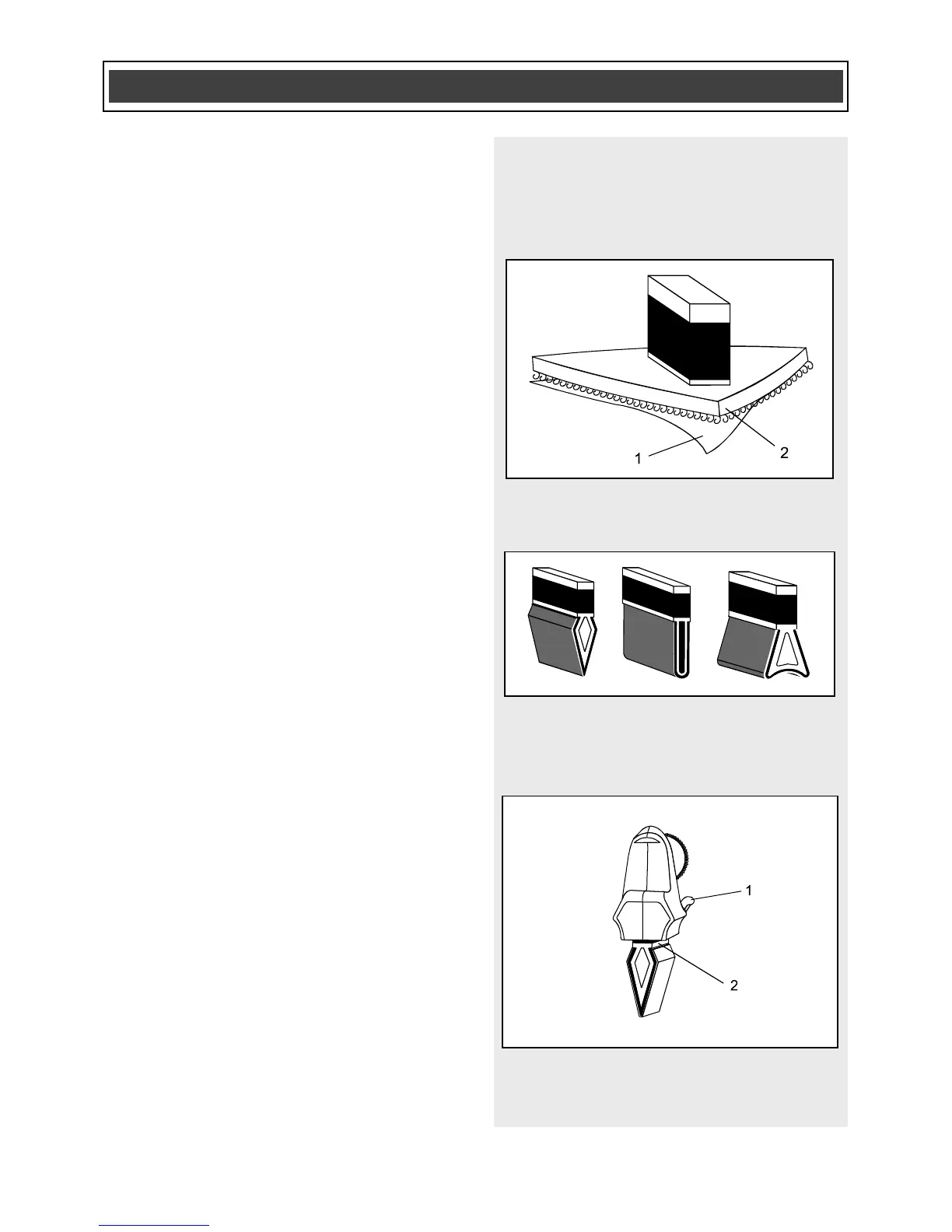

Fig. 10
Fig. 11
Fig. 12
Fig. 13
Fig. 14
