MasterCraft 55-6829-4 - Assembly and Adjustments

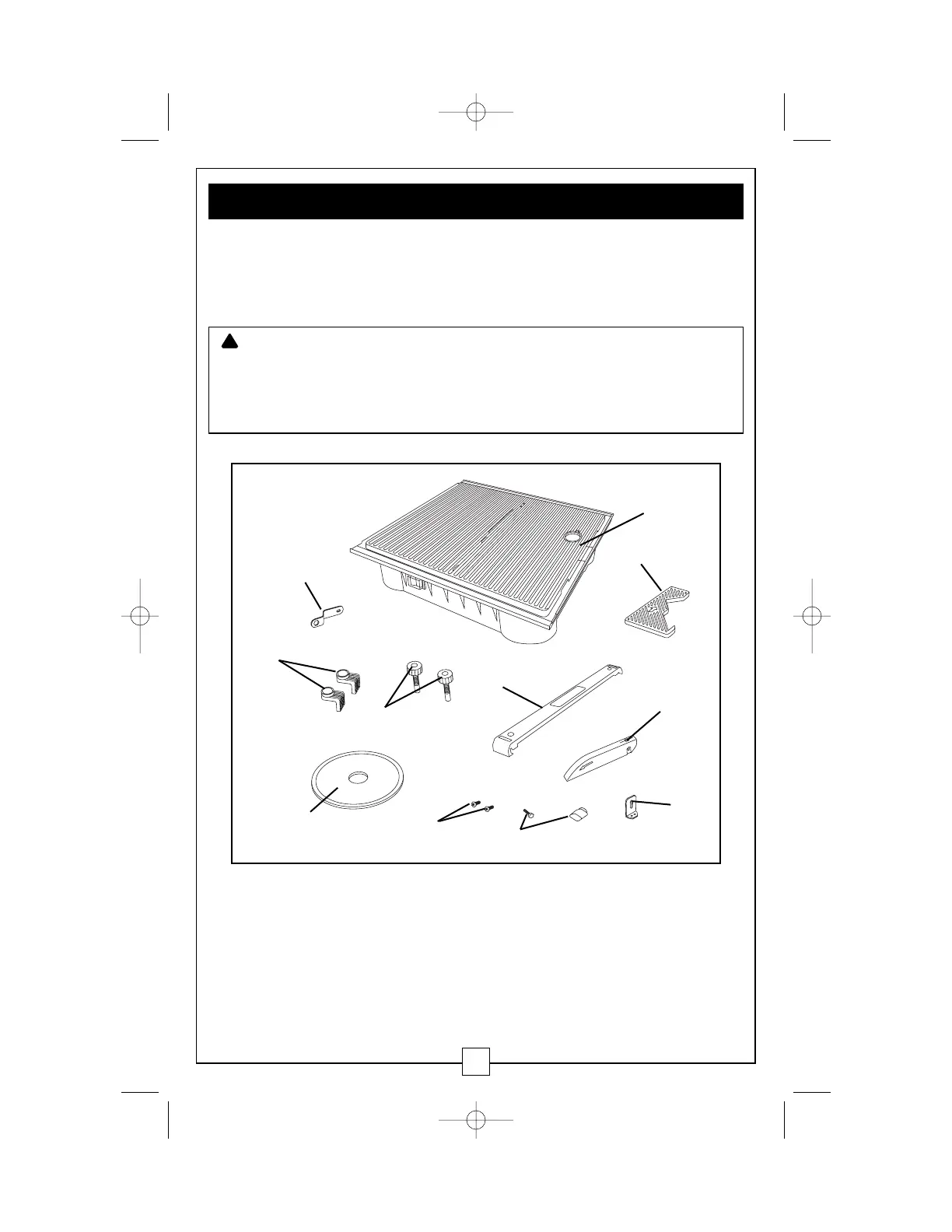

UNPACKING (Fig. 1)
1. Carefully remove the contents from the box.
2. Do not discard the box and packing material until you have examined all
the parts carefully.
⁄
WARNING: IF ANY PART IS MISSING OR DAMAGED, DO NOT
PLUG THE WET TILE SAW IN UNTIL YOU HAVE REPLACED THE
MISSING OR DAMAGED PART. THE POWER CORD MUST REMAIN
UNPLUGGED WHENEVER YOU ARE WORKING ON THE WET TILE
SAW.
VI. Assembly and adjustments
9
!
Fig. 1
a Wet tile saw
b 45˚ mitre gauge
c Blade guard
d Blade guard support
e Blade guard bolt and knob
f Blade guard screws
g 4 1/2" diamond-tipped tile
cutting blade
h Adjustable work fence
i Fence knobs
j S-clamp supports
k Wrench
a
k
h
i
j
f
c
b
e
d
g
