MasterCraft 55-6898-8 - Product Description; Identifying Saw Parts

9
DESCRIPTION
KNOW THE COMPOUND MITRE SAW
(See Fig. 1) Before attempting to use this Compound Mitre Saw, become familiar with
all its operating features and safety requirements.

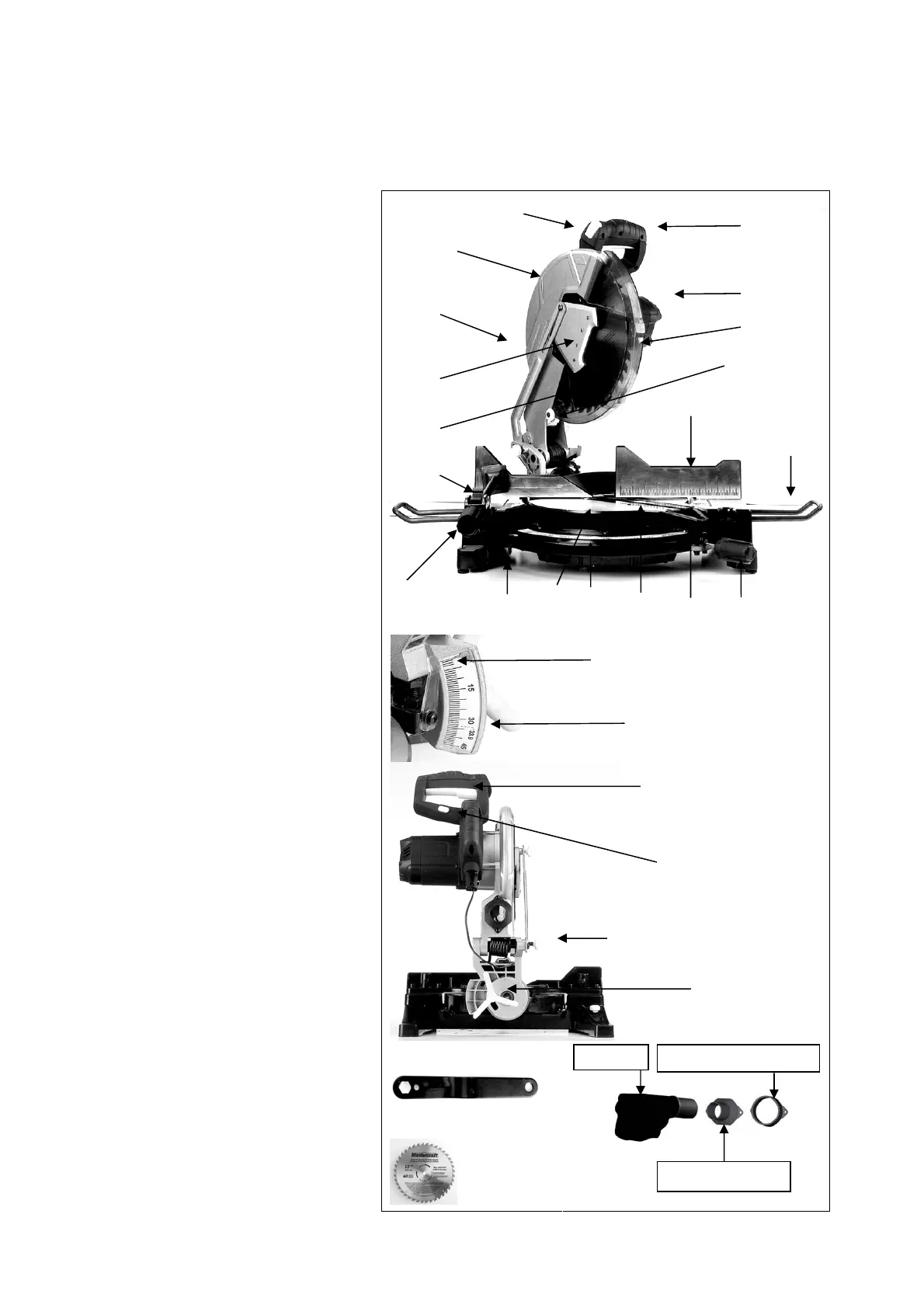

Fig.1
Blade Wrench
1 ON/OFF trigger switch
2 Horizontal, rubberized
D-handle
3 Safety lock-off button
4 Upper blade guard
5 Blade-screw guard
6 Dust-extraction port
7 Saw blade
8 Laser guide
9 Mounting holes
10 Mitre table
11 Mitre-angle scale
12 Throat plate
13 Mitre-angle indicator
14 Mitre lock
15 Clamp mounting holes
16 Fence
17 Lower blade guard
18 Spindle-lock button
19 Laser ON/OFF switch
20 Stop latch
21 Bevel-angle scale
22 Bevel lock
23 Bevel-angle indicator
24 Extension wings
25 Hold clamp
Saw Blade
1
2
3
4
5
6
7
10
11
12
13
9
16
21
23
8
18
19
20
14
22
15
17
24
25
Dust Bag Adapter
Sho
p
Vacuum Ada
p
te
r
Dust Ba
g
