MasterCraft 62-3520-6

Repair Parts 6
For parts or assistance, call customer service at 1-877-455-5508

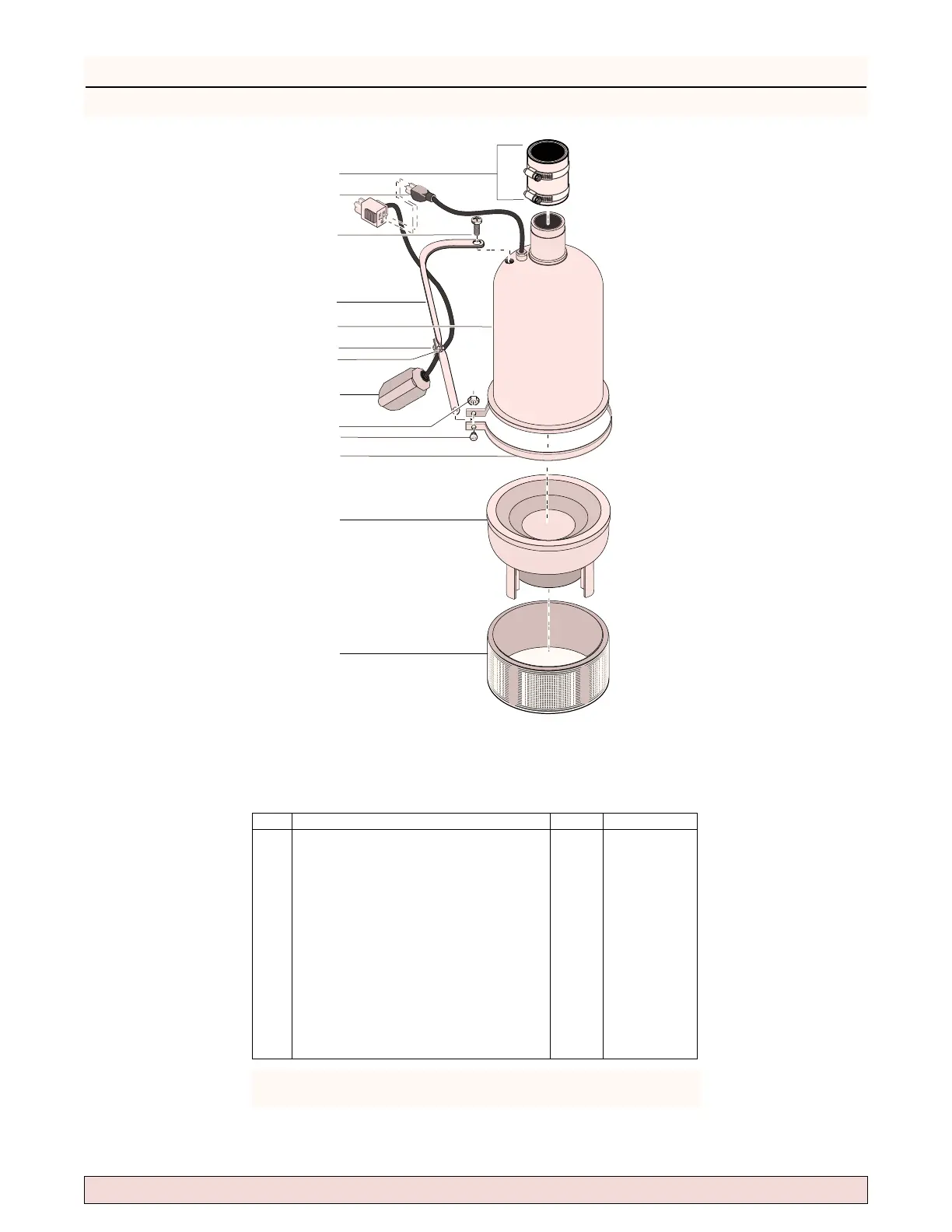

REPAIR PARTS
1
2
13
3
4
5
7
6
8
9
10
12
11
3101 1097 Mstrcrft
Key Part Description Qty. Part No.
1 Hose and Clamp Assembly 1 U74-68
2 Power Cord Assembly 1 PS17-98
3 Screw, Pump Handle 1 14000
4 Float Bracket Handle 1 PS54-14SS
5 Upper Pump Housing/Motor Assembly 1 **
6 Screw, 10-24 UNC SS 1 U30-971SS
7 Nut, Acorn 10-24 UNC SS 1 U36-203SS
8 Automatic Float Switch Assembly 1 PS117-123P
9 Hex Nut 1 U36-105SS
10 Screw, Phillips Pan Head 1 4327
11 Housing Clamp 1 15146
12 Lower Pump Housing 1 ***
13 Pump Screen 1 12924
*** Not available as a replacement part.
** If motor fails replace the entire pump.
