contacting the workpiece at all times.
INSTALL FLEXIBLE SHAFT ADAPTER

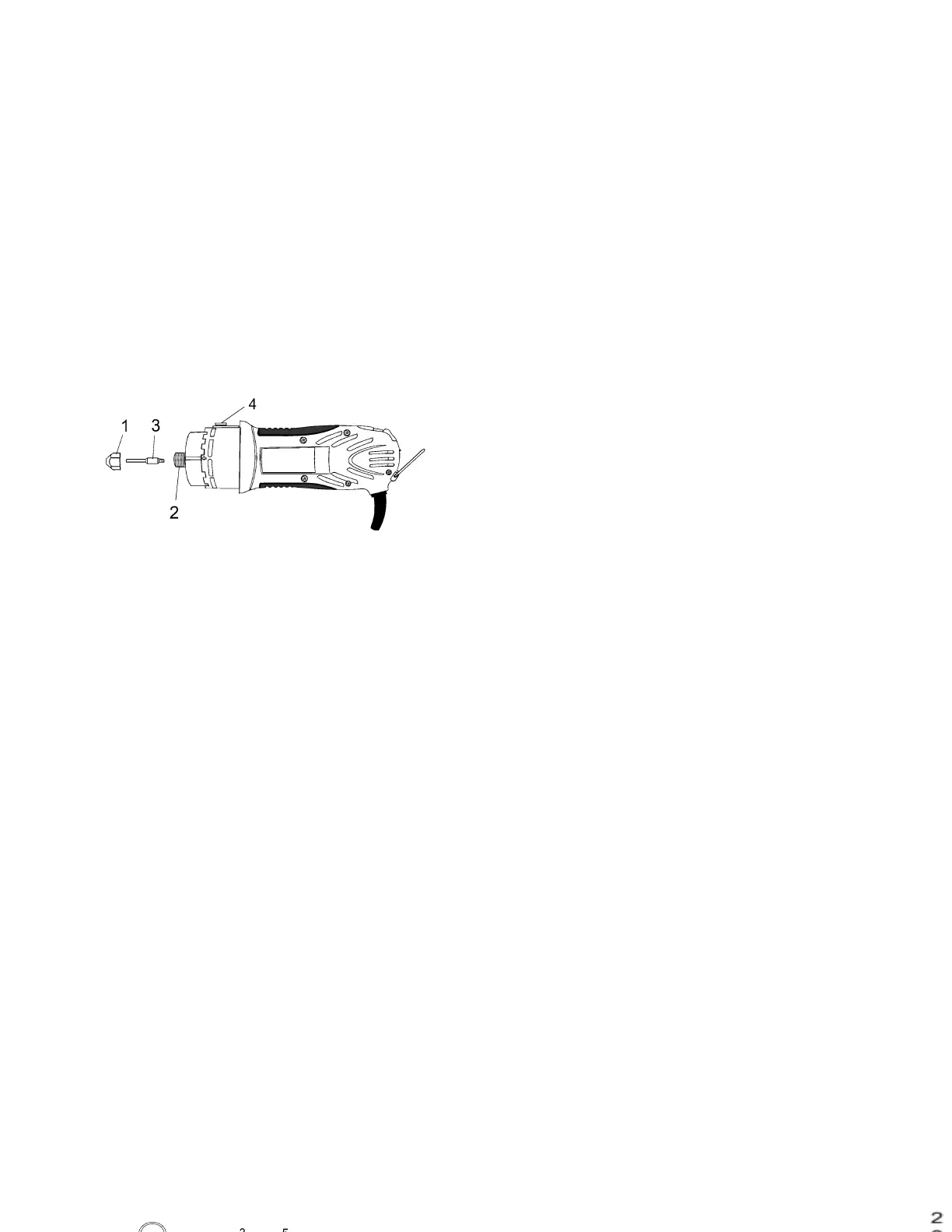

1. Remove collet nut (1) from the motor shaft (2)
and remove existing collet (see Fig 23).
2. Insert short end of flexible shaft adaptor (3) into motor
shaft.
3. Slide collet nut over flexible shaft adaptor and fasten
onto motor shaft by turning clockwise. Tighten collet
nut using collet wrench supplied.
NOTE: Press locking button (4) on motor housing to
lock motor shaft while tightening the collet nut.
INSTALL ANGLE GRINDER ATTACHMENT SIDE
HANDLE
1. Loosen angle grinder attachment side accessory
handle (1) by turning it counter-clockwise (see Fig.
24).
2. Slide mounting collar (2) over motor housing (3).
NOTES:
a) Make sure one of the eight slots (4) in mounting
collar slides over shaft locking button (5).
b) Collar can be rotated and positioned in eight
different positions for operator convenience.
3. When mounting collar is pushed fully onto the motor
housing, lock it in place by turning the handle
clockwise.
INSTALL ANGLE GRINDER ATTACHMENT
To Next Page
