MasterCraft MIG 140

STEP 3
Operation

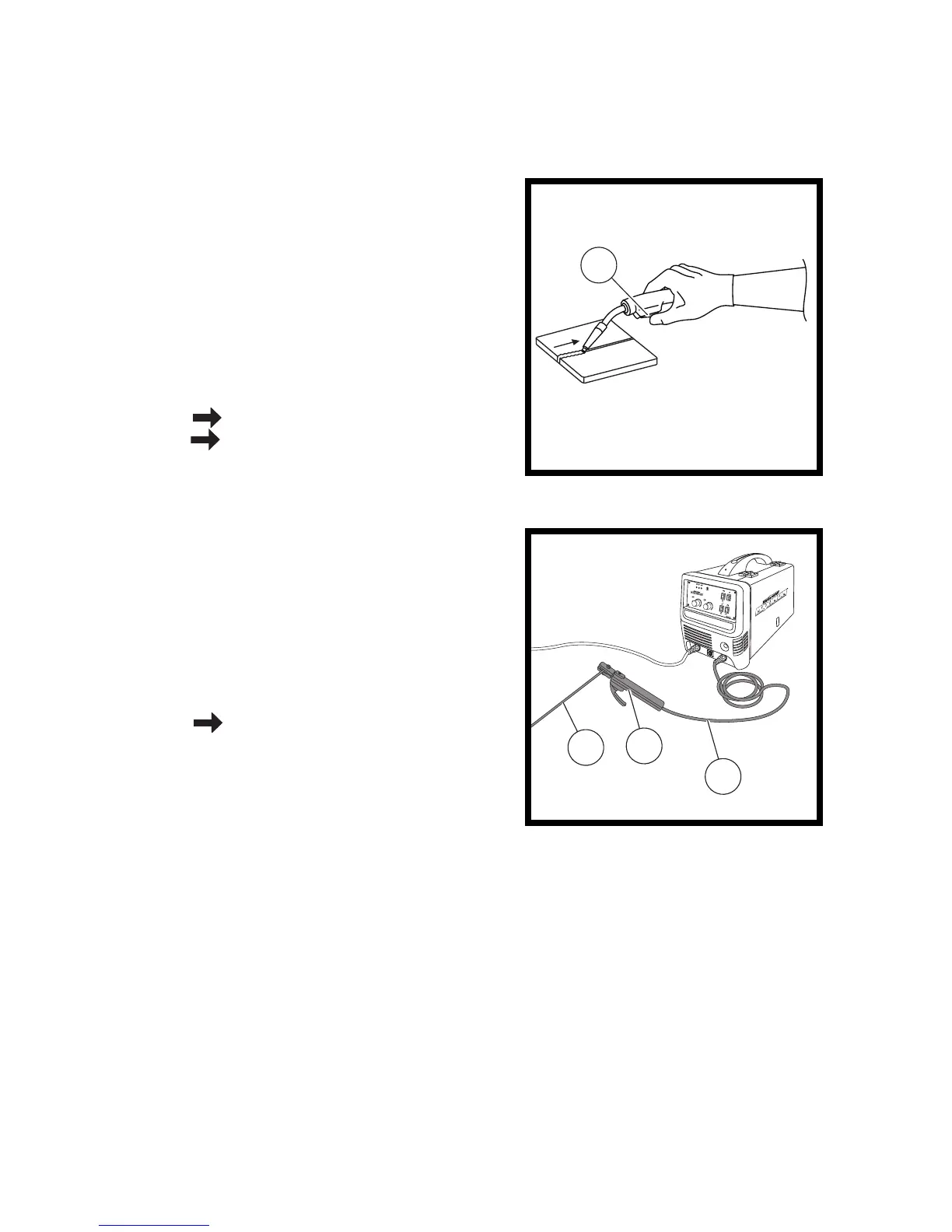

Hold the torch in one hand and set the wire
speed control with the other hand to its
maximum position. Pull the trigger (1) on the
torch to start an arc. Drag the torch on the
work piece while simultaneously turning the
wire speed control counterclockwise.
pages 30-31, steps 3-5
page 32 (refer to welding techniques)
Stick welding
STEP 1
Plug in the electrode holder cable (1) into the
electrode cable connection and attach the
electrode (2) in the electrode holder (3).
pages 19-20, steps 1-3
