ASSEMBLY INSTRUCTIONS
25
MIG 180 INVERTER WELDER 058-9306-4

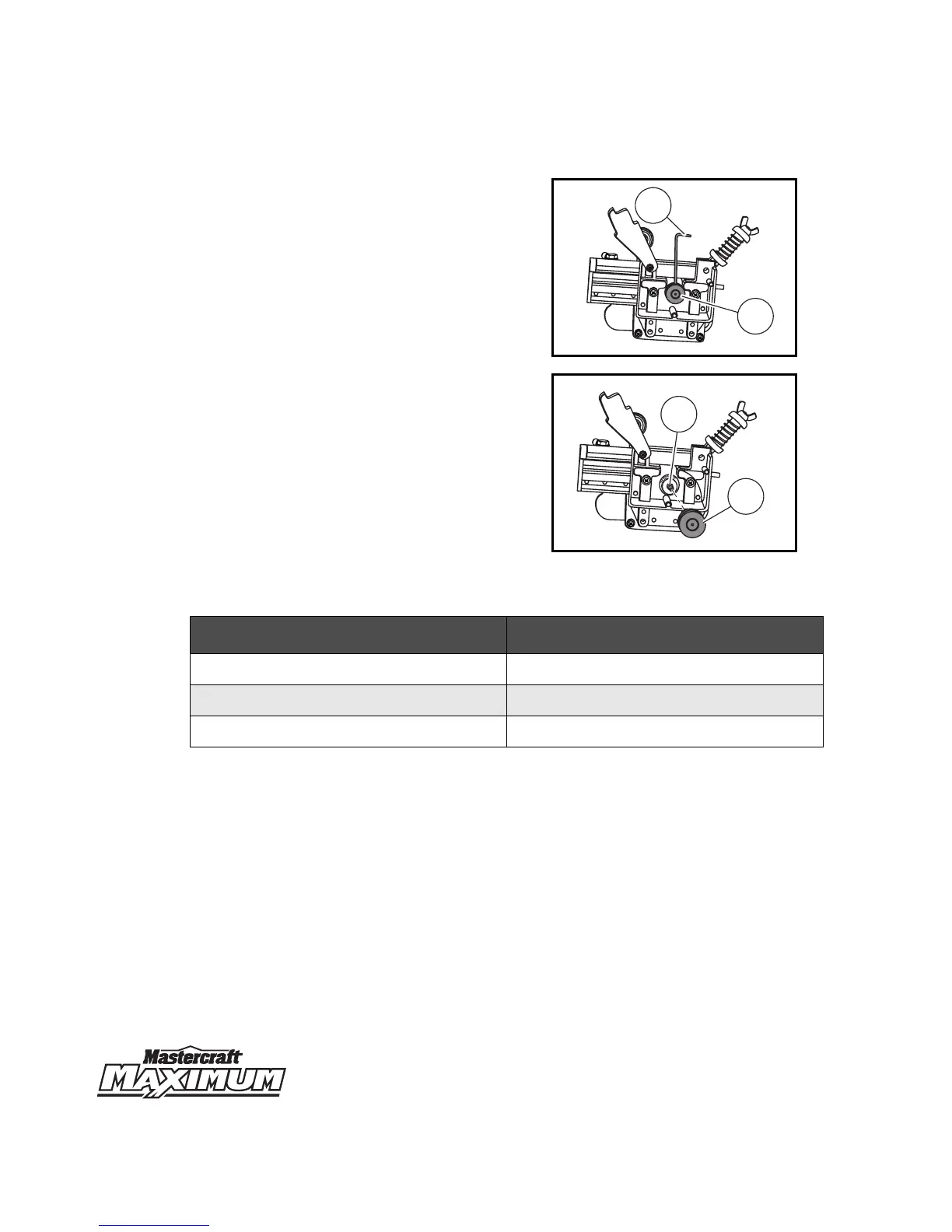

4. Loosen the set screw of the drive roll (1)
using L shaped hexagonal wrench (2)
(fig 1W)
.
5. Remove the drive roll (1) from the drive
roll shaft (2)
(fig 1X)
.
Refer the below chart to select the roll groove based on the wire diameter:
6. Attach the drive roll onto the drive roll
shaft and tighten the drive roll on to the
shaft using the wrench.
Note: When installing the drive roll, the number
stamped on the drive roll should face the user.
7. Close the wire drive compartment.
MC-589306-32
fig 1W
2
1
MC-589306-33
fig 1X
1
2
Wire diameter
Roll groove
0.023" 0.6
0.030" 0.9
0.035" 0.9
