Scrolling Through Multiple Messages
The title-bar of the fault code pop-up may indicate multiple mes-
sages, as in Diagnostic Message 1 of 3. Press or to
scroll through the different messages.

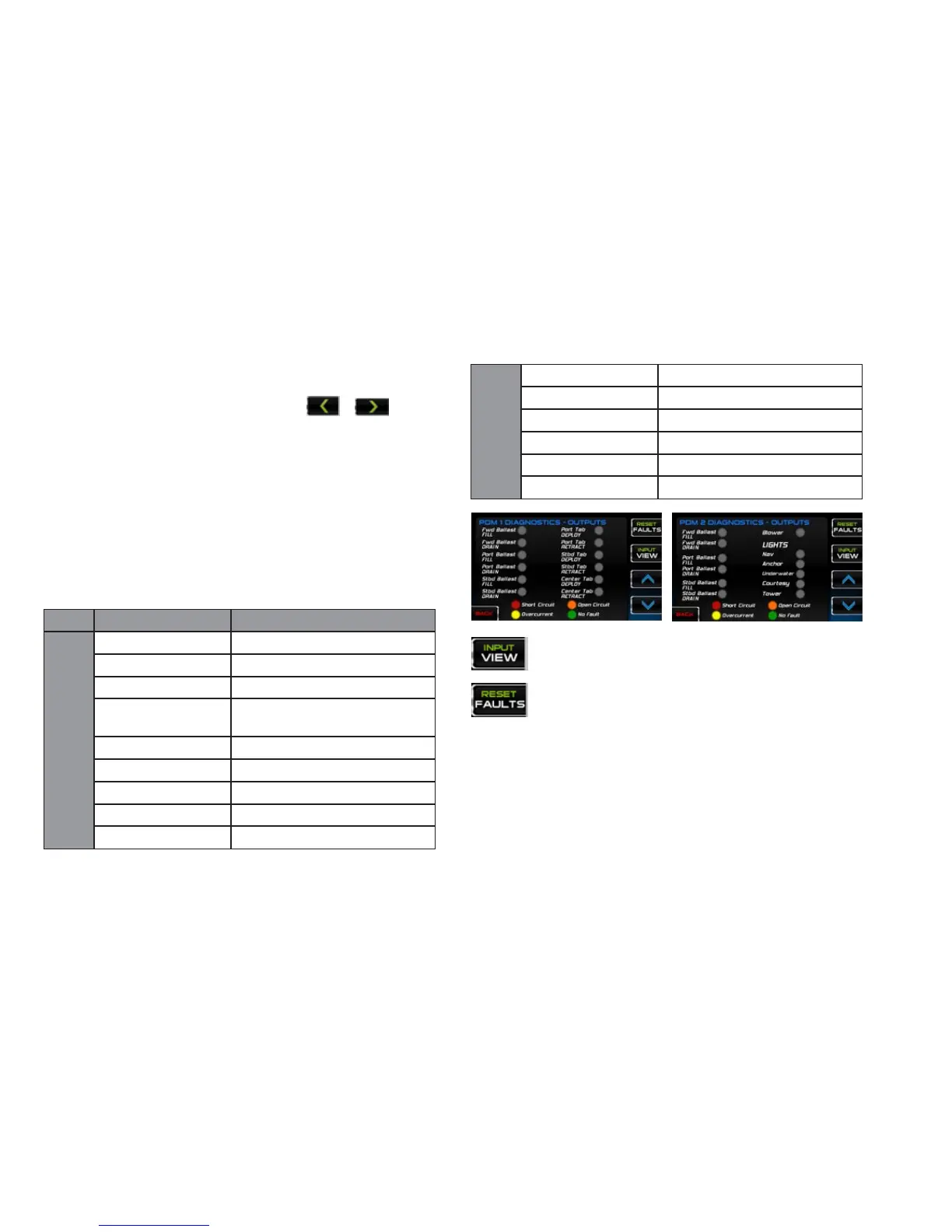

PDM Diagnostics
These screens will display color-coded faults that exist in the sys-
tem inputs and outputs of the engine.
Reported conditions include no faults, short circuits, open circuits
and over-currents for the following Input and Output components:
Inputs Outputs
PDM 1
Forward Ballast Forward Ballast Fill and Drain
Port Ballast Port Ballast Fill and Drain
Starboard Ballast Starboard Ballast Fill and Drain
Forward and Reverse
Throttle Ind.
Port Tab Deploy
Center Tab Port Tab Retract
Surf Tabs Starboard Tab Deploy
Fire Extinguisher Starboard Tab Retract
Navigation Lights Center Tab Deploy
Air Temp. (Analog) Center Tab Retract
PDM2
Courtesy Lights Forward Ballast Fill and Drain
Tower Lights Starboard Ballast Fill and Drain
Anchor Lights Port Ballast Fill and Drain
Underwater Lights Blower
Navigation Lights Navigation, Anchor, Tower Lights
Blower Underwater and Courtesy Lights
Alternate allows the user to
clear existing faults.
As between showing the
Inputs and the Outputs.
