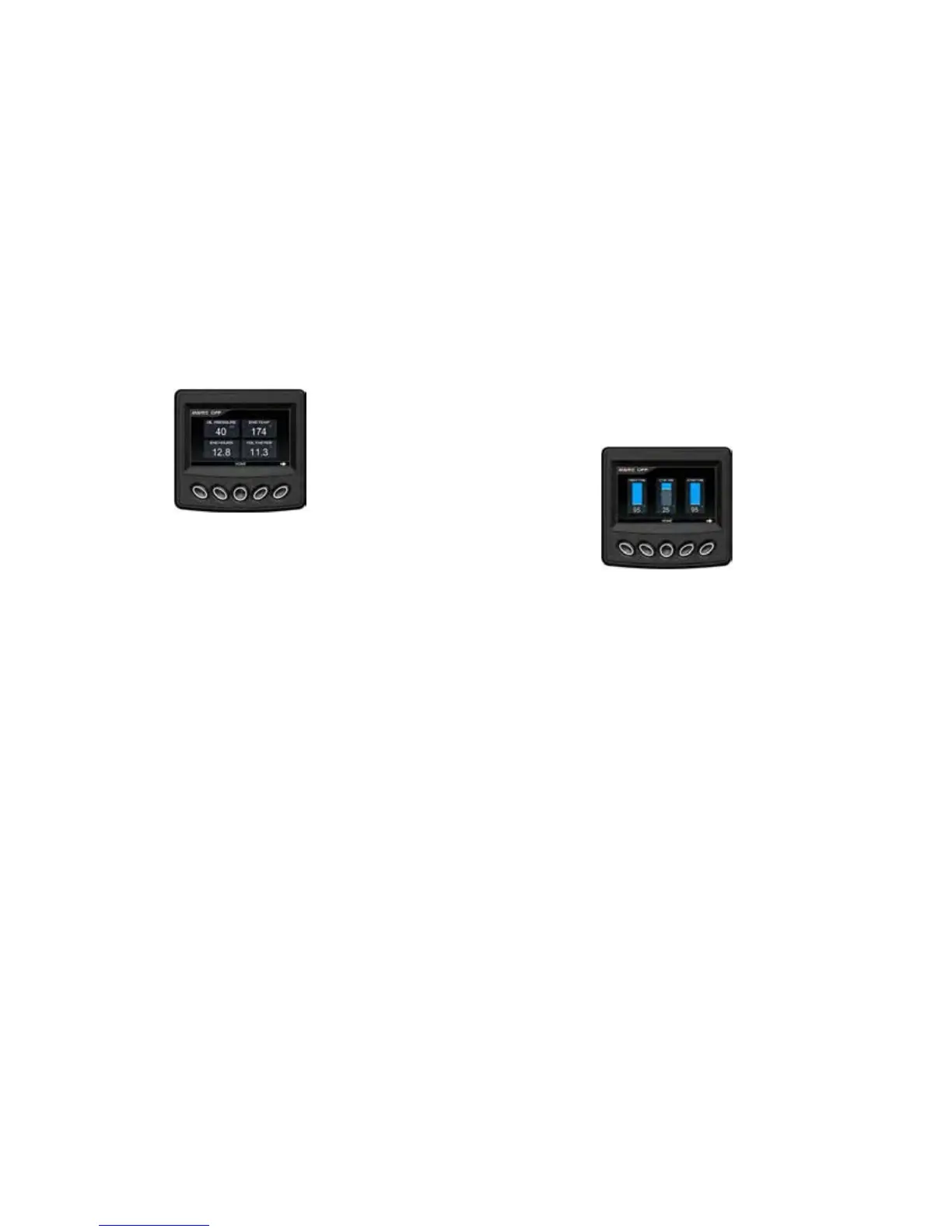

Trim
From the Home screen, the Trim screen can be accessed by press-
ing the Display Key under TRIM in the Menu Bar.
NOTE: The NXT Wake Shaping and Attitude Adjustment Plate
options can be disabled in the Factory Settings screen which would
also disable the Trim Screen. A Dealer Code is required to access
the Factory Setting screen.
Trim Screen Features
• Port NXT Wake Shaping Position
• CTR Attitude Adjustment Plate Position
• STBD (Starboard) NXT Wake Shaping Position
• Cruise ON or OFF
Press the HOME key to return to Home or press the ARROW key to
scroll to other screens.
NOTE: The Trim NXT Wake Shaping devices have multiple optional
settings. As an example, if the Center Attitude Adjustment Plate
and/ or the NXT Wake Shaping devices are disabled in the Factory
Settings screen, the trim display positions will reflect that. A Dealer
Code is required to access the Factory Setting Screen.
Main Menu
From the Home screen, the Main Menu screen can be accessed by
pressing the Display Key under MENU in the Menu Bar.
Main Menu Screen Features
• User Settings
• Service Information
• Engine Diagnostics
• Factory Settings
Press the Display Key under the UP and DOWN pointers to scroll the
list and highlight a feature. Press the Display Key under SELECT to
open a feature screen. Press the HOME key to return to the Home
screen or press the ARROW key to scroll to other screens.
