2016 OWNERS MANUAL / 0141

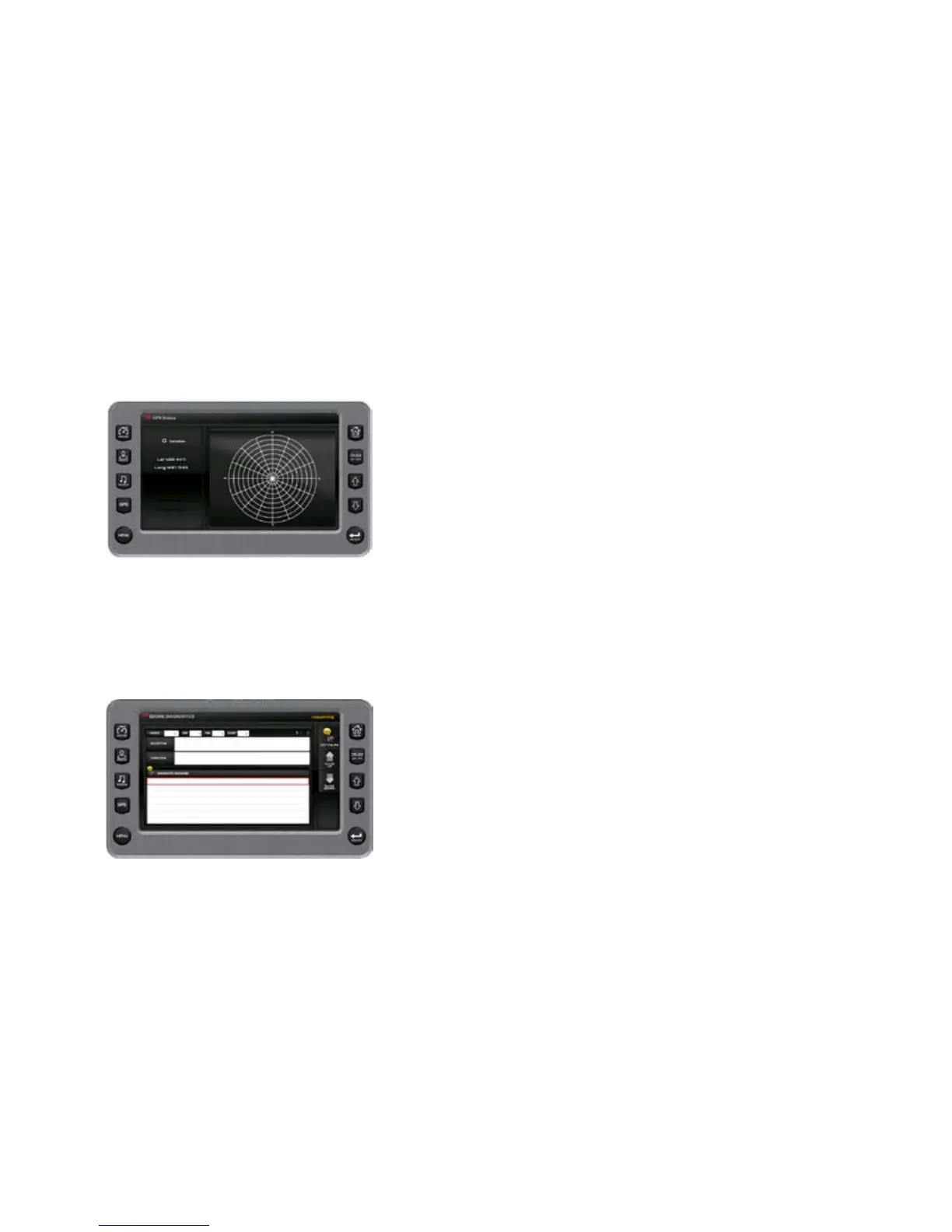

GPS Status
Shows the location of the satellites.
ENGINE DIAGNOSTICS
When choosing this selection, the display will query the engine’s
ECU, and provide feedback on any diagnostic codes that have been
activated and stored in the ECU for service needs.
Engine Diagnostics–Soft Key Commands
GET FAULTS—Queries the engine’s ECU for feedback on
diagnostic codes that have been activated and stored in the ECU
for service needs.
UP—DOWN—Navigates through the fault list.
The following is a list of field definitions contained on the ENGINE
DIAGNOSTICS screen:
Source—Identifies the component having the fault: engine 1, 2
or auxiliary.
Status—Indicates whether the fault has been corrected.
SPN—“Suspect parameter Number”—fault code. If not translated
into text by the display, see an authorized MasterCraft dealer.
FMI—“Failure Mode Indicator’’—fault code. The FMI is defined
by SAW J1939. If not translated into text, see an authorized
MasterCraft dealer.
Count—The number of times the event has been flagged.
Description—Most common SPNs and FMIs have text for the
description
stored in the display. If there is no text, then this SPN and FMI must
be defined by referring to the engine manufacturer or the SAE
J1939 standard.
NOTE: This field is only used with certain models of engines.
Correction—Suggested action for correction.
To Next Page
