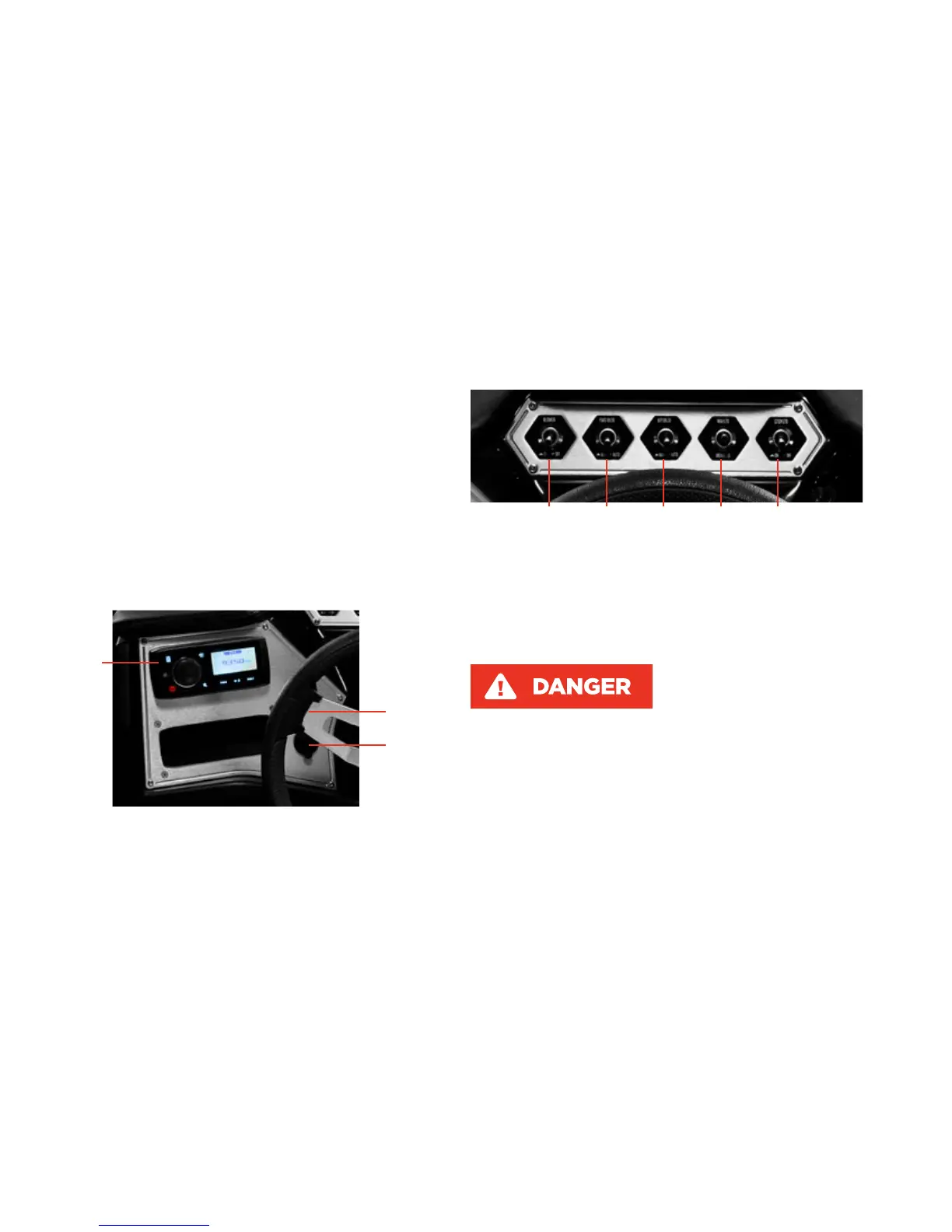

PORT SIDE OF DASH
A = Fusion RA 205 AM/FM stereo system
(where equipped) with four (4) 6.6” JL Audio MX-Series
speakers. (See separate, accompanying owners manual from the
manufacturer for details regarding operation and care.)
B = 12-volt receptacle. Note that any item plugged into the 12-volt
receptacle draws power from the battery(ies). Depending on the
item, long term use without the boat engine turned ON could result in
excessive drain on the system, affecting the ability to start the engine.
C = USB/Auxiliary input.
Top Center of Dash
D = Blower switch. A two-position switch activates the engine box
ventilation blower. Push the toggle switch UP to turn the blower ON.
NOTE: The blower must operate for a minimum of four (4)
minutes before starting the engine at any time.
The blower must also be operated during idle and slow-speed
running, but is not necessary during cruising speed.
To prevent a possible explosion, operate the blower for at least
four (4) minutes before starting the engine and always when at idle
or slow-running speed. Explosive gasoline and/or battery fumes
may be present in the engine compartment. Failure to operate the
blower as instructed may cause improper ventilation of the boat
engine and bilge areas, and fuel vapors can accumulate in this
area, causing a fire or explosion which may result in serious injury
or death!
A.
D. E. F. G. H.
B.
C.
