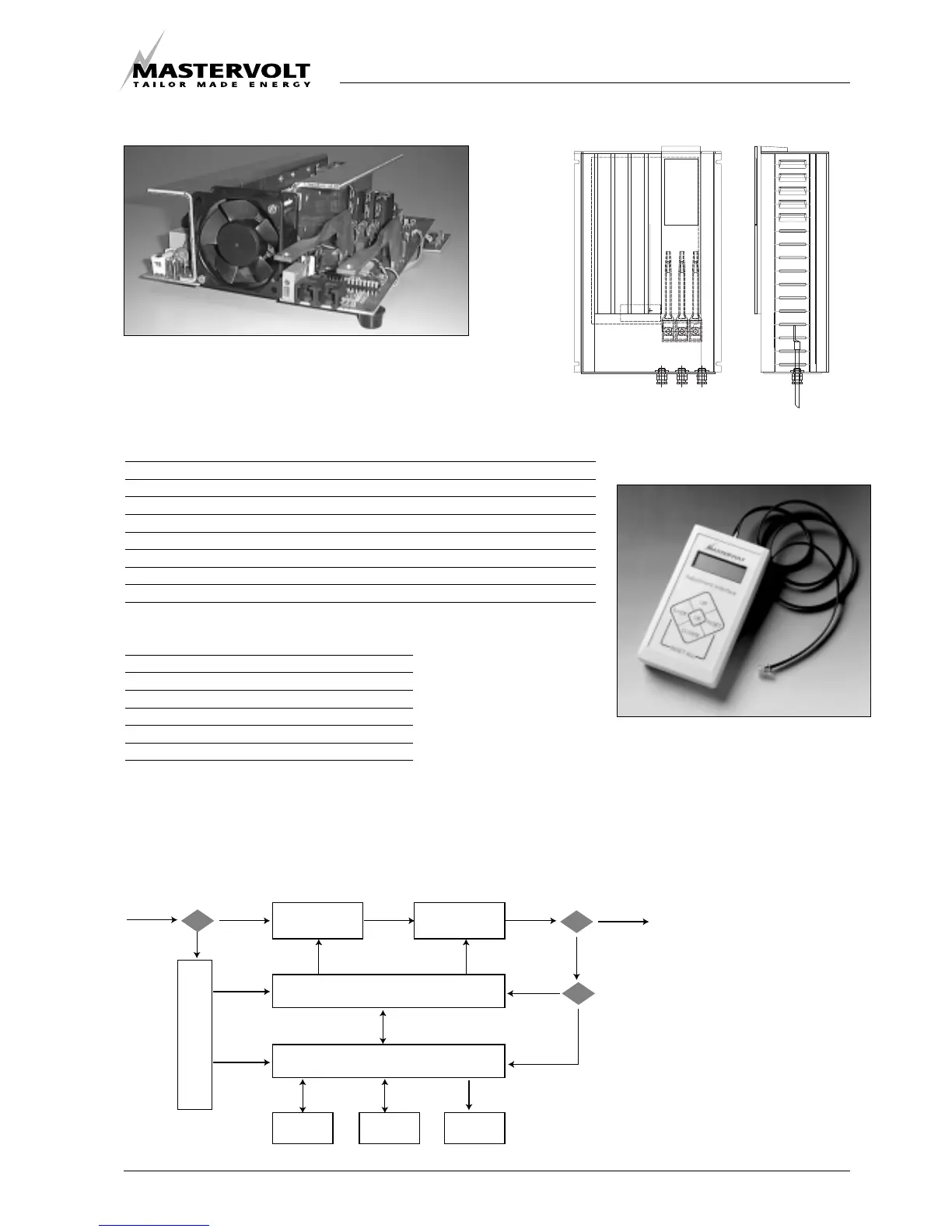

Mastervolt MASS 12/30-2 User Manual

Apendix A
37
DATA SHEETS
ACCESSORIES & REMOTES
Article no description
04-15-00100 basic remote control LED’s
-- standaard remote contol LED’s current control
-- advanced remote control display with owner’s settings
04-15-00300 MASS 1 temperature sensor
-- MASS 1 cable set
-- MASS 1 remote cable set
00-17-05000 Adjustment Interface
-- Smart alarm control box
SERVICE INFORMATION
Article no description
-- sub assy, main PCB board
-- complete aluminium heatsink
-- cover module
-- connection module
-- front indicator module
-- installation blocks
OPERATING PRINCIPLE
Fully automatic power factor switch mode battery charger, suitable as power supply using a separate non-isolated pre regulator
boost converter for power factor correction, followed by a double forward converter controlled by a combination of analogue
hardware and microprocessor control.
New ‘high tech’ enclosure.
Main PCB of the MASS 12/30-2.
PFC DC/DC
HARDWARE CONTROL
SOFTWARE CONTROL
remote select RS232
DC output
AC input
Aux. power supply
Adjustment Interface, art. no 02-17-05000.
The below mentioned data can be adjusted with this
digital instrument:
• adjustment charge voltage (e.g. traction)
• ‘return’ Amps etc.

Mastervolt MASS 12/30-2 Specifications

General

Brand	Mastervolt
Model	MASS 12/30-2
Category	Battery Charger
Language	English
