Mass Combi Pro 12/3000-150, 24/3500-100 – User and Installation Manual
5 INSTALLATION
During installation and commissioning of the Mass Combi
Pro, the Safety Guidelines & Measures are applicable at all
times. See chapter 2 of this manual.
5.1 Unpacking
In addition to the Mass Combi Pro the delivery includes:
 a battery temperature sensor;
 this user’s manual;
 MasterBus terminating device.
After unpacking, check the contents for possible damage.
Do not use the product if it is damaged. If in doubt, contact
your supplier.
Check from the identification label (see section 1.6)
whether your Main battery voltage is the same as the DC-
input voltage of the Mass Combi Pro (e.g. 24 V main
battery set for a 24 V input voltage). Also check that the AC
output voltage and output power of the Mass Combi Pro
complies with your system and loads.
5.2 Environment
Obey the following stipulations during installation:
 The Mass Combi Pro is designed for indoor use only.
 Ambient temperature: -25 ˚C to 60 ˚C, (power derating
above 40 ˚C).
 Maximum usage/installation height: 2000 m.
 Humidity: 0-95 % non-condensing.
 Mount the Mass Combi Pro on a solid surface, with the
connecting cables downwards.
 Make sure that the hot air produced during operation
can be discharged. The Mass Combi Pro must be
mounted in such a way that obstruction of the airflow
through the ventilation openings will be prevented.
 No objects must be located within a distance of 10 cm /
4 inch around the Mass Combi Pro. Keep at least 15
cm / 6 inch free space below the Mass Combi Pro.
 Do not locate the Mass Combi Pro in the same
compartment as the batteries.
 Do not install the Mass Combi Pro straight above the
batteries because of possible corrosive fumes.
5.3 Wiring
The wiring is connected inside the connection
compartment. If necessary, the wiring can be fed from the
top to the bottom side of the cabinet along the back of the
cabinet.
Always use the strain reliefs to fix the wiring. Fix the phase
line wire to terminal L, the neutral wire to terminal N and
the ground wire to terminal PE, see figure 5-1.

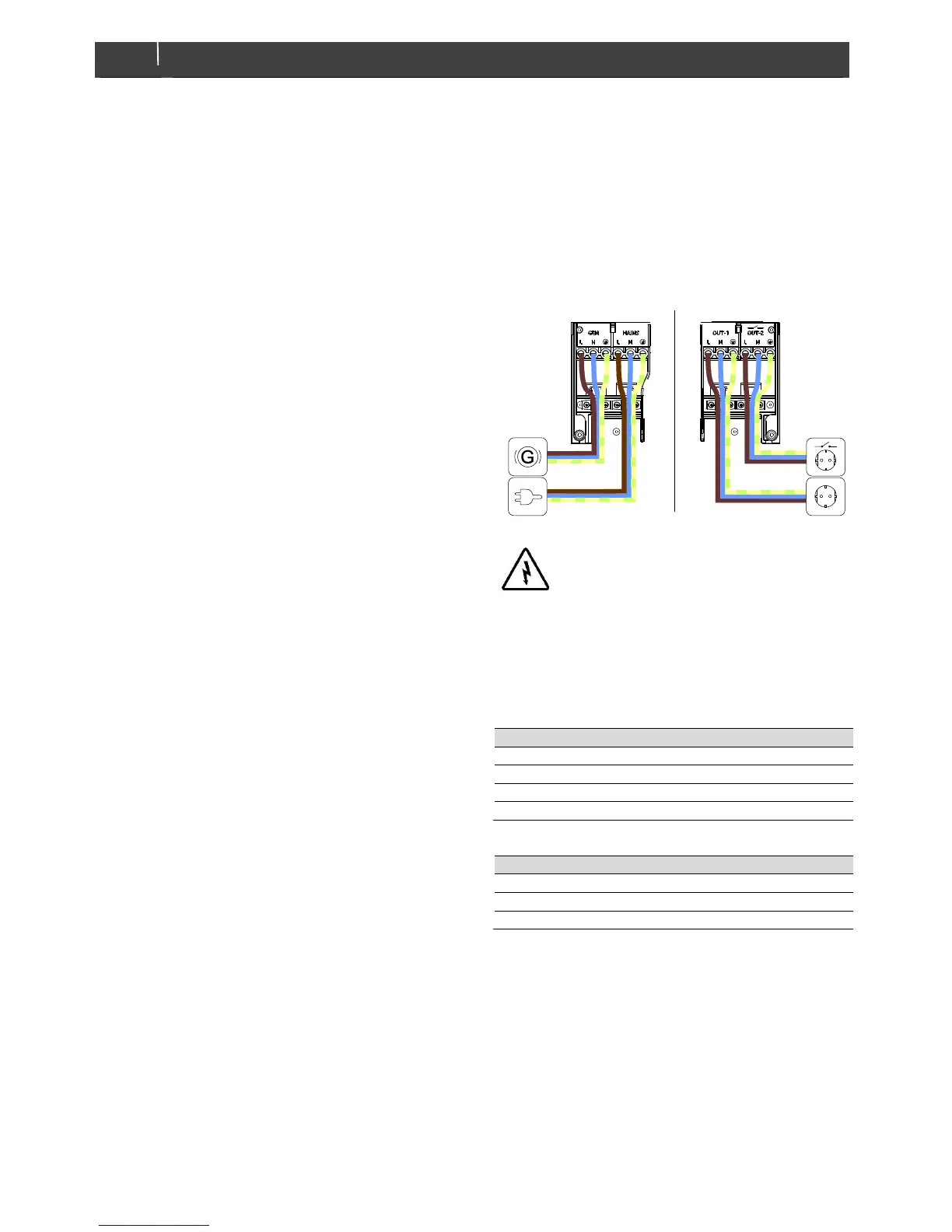

Figure 5-1: AC terminal connections
WARNING
NEVER connect shore power to the generator
input. This may result in an electric shock!
5.3.1 AC-wiring
For a safe installation the correct wire cross section must
be applied. Don’t use a cross section that is smaller than
indicated. See table below to select the appropriate cross
section for the AC wiring:
AC-Current
Minimum cross section:
0-20 A
2.5 mm²
AWG 13
20-32 A
4 mm²
AWG 11
32-48 A
6 mm²
AWG 9
48-80 A
10 mm²
AWG 7
Recommended wire colours (refer to local rules and fig 5-1)
Wire color
Meaning
Connected to:
Brown or black
Phase
L1
Blue
Neutral
N
Green/Yellow
Earth
PE / GND
The current entering the Mass Combi Pro must be limited.
Therefore the AC-input must be protected by a fuse in the
L cable, as specified below. Maximum rating of the
generator AC input fuse: 50 A and Mains AC input fuse: 30
A. The PE/GND cable cross section must be at least equal
to L1.
