28
November 2000 / Mass Sine 12/1200, 12/2000, 24/1500, 24/2500 & 48/2500/ EN
3.3 MOUNTING OF THE CABINET
To mount the MASS inverter follow the described
instructions:
1 Determine the mounting points (see fig. 2 and 3).
2 Drill mounting holes for the cabinet.
3 Mount the MASS inverter with four screws or
bolts (M6) to the wall.
4 Fasten all screws or bolts securely.
INSTALLATION

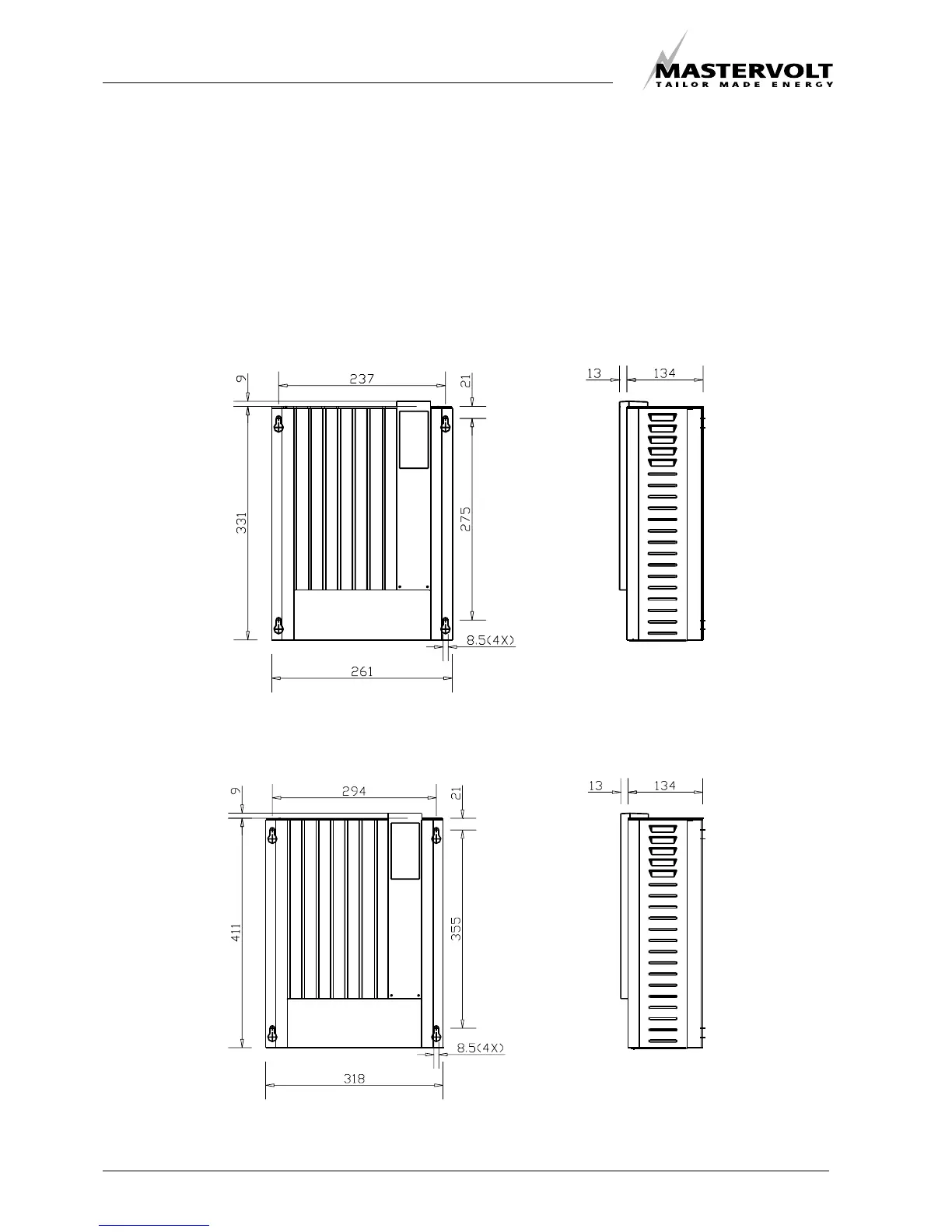

Fig. 2: Mounting points Mass Sine 12/1200, 24/1500 230V / 50Hz and Mass Sine 12/1000, 24/1000 117V / 60Hz.
Fig. 3: Mounting points Mass Sine 12/2000, 24/2500, 48/2500 230V / 50Hz and Mass Sine 12/2000, 24/2500 117V / 60Hz.
