10 October 2011 / Sunmaster XS4300-3200-2000 / EN

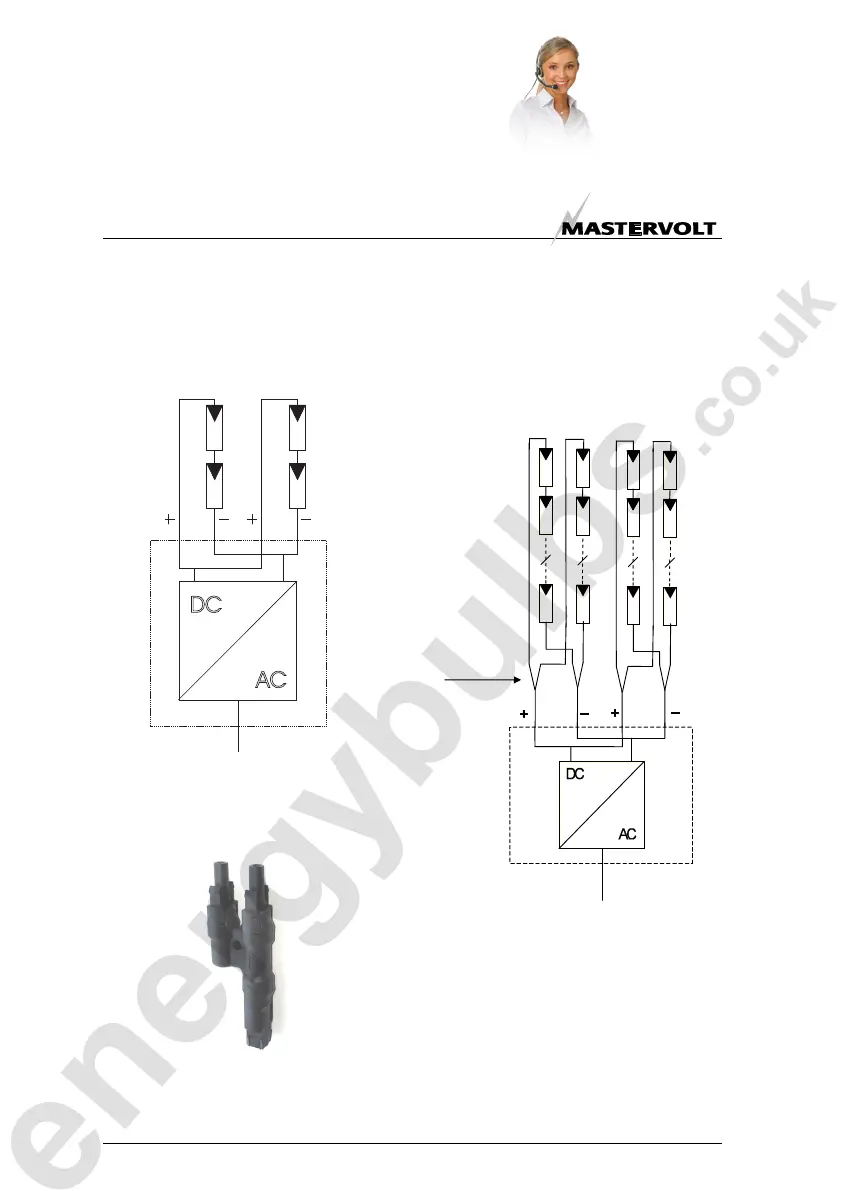

3.8.1 Connection of two strings (standard)
Two strings can be connected to the Sunmaster directly.
See section 3.6 for the maximum power connected to
each Solar-input. The total input power must be distributed
equally over both Solar-inputs as much as possible.
See figure 3-2.
3.8.2 Connection of more than two strings
(option)
In case more than two strings should be connected to the
Sunmaster, Multicontact Y-adapters may be used to
combine the strings (see figure 3-3 and ordering
information chapter 8). The strings connected to the same
Solar-input should exist of an equal number of identical
PV-modules. See figure 3-4.
Figure 3-3: Y-adapter
String 1 + 2 String 3 + 4
AC grid
MultiContact
Y-adapters
Figure 3-4
String 1
AC grid
String 2
Figure 3-2
DC
AC
