INTRODUCTION
EN/ Whisper 6/8/12/16 Ultra for mobile applications / May 2009 / Copyright © 2009 Mastervolt 3
1 INTRODUCTION
1.1 GENERAL
This installation manual applies to the installation of
Mastervolt Whisper gensets in vehicles. This manual is
valid for the following models:
Part number Description
51105020 Whisper 6 Ultra 230V 1500rpm
Mobile / keel cooling
51105026 Whisper 6 Ultra 230V 1500rpm
Mobile / keel cooling -ungrounded
51106020 Whisper 8 Ultra 230V 1500rpm
Mobile / keel cooling
51106026 Whisper 8 Ultra 230V 1500rpm
Mobile / keel cooling -ungrounded
51107020 Whisper 12 Ultra 230V 1500rpm
Mobile / keel cooling
51107026 Whisper 12 Ultra 230V 1500rpm
Mobile / keel cooling -ungrounded
51108020 Whisper 16 Ultra 230V 1500rpm
Mobile / keel cooling
51108026 Whisper 16 Ultra 230V 1500rpm
Mobile / keel cooling -ungrounded
For other models see our website: www.mastervolt.com
WARNING
A warning symbol draws attention to special
warnings, instructions or procedures which, if
not strictly observed, may result in damage or
destruction of equipment, severe personal
injury or loss of life.
DANGER
This danger symbol refers to electric danger
and draws attention to special warnings,
instructions or procedures which, if not strictly
observed, may result in electrical shock which
will result in severe personal injury or loss of
life.
WARNING!
Before working (installation) on the system
read the section safety instructions in the
user’s manual
1.2 GENERATING SETS FOR VEHICLES
1.2.1 Marine and mobile generators
Whisper Generators originate from the marine sector. But
there are also specially designed Whispers available for
mobile applications, suitable for supplying power on board
of vehicles to use professional apparatus and equipment,
strong lightning and air conditioning etc. The cooling
system and exhaust system on vehicles is completely
different from standard marine systems. Standard marine
generators are cooled by seawater that nowhere exceeds
30° Celsius and is seldom warmer than 20° Celsius in the
northern territories. Cold seawater is pumped through the
alternator, through the heat exchanger and is injected in
the exhaust. The exhaust gasses are therefore cooled and
rubber exhaust hose can be used.
On vehicles the engine and alternator are individually
cooled by radiator with an electric (12V/24V or 230V)
driven fan. The radiators can be fitted below, on top or in
the side of the vehicle.
The exhaust is of the dry type and includes a stainless
flexible bellow and high quality mufflers.
Never use rubber exhaust hose, neither
fibreglass nor plastic exhaust parts in a dry
exhaust system as applied on vehicles.

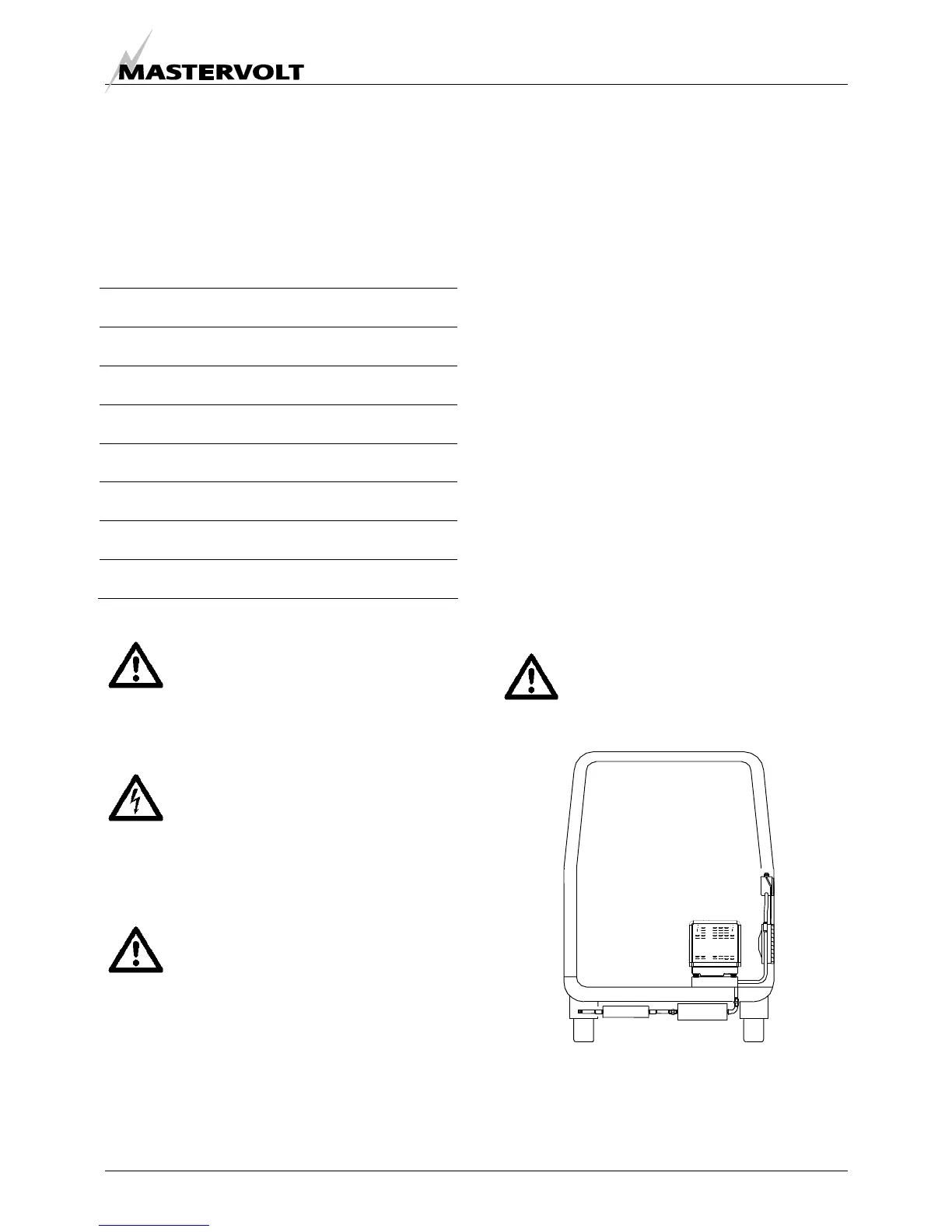

Figure 1: Typical vehicle application radiator side mounted
