Mastervolt WHISPER 12 ULTRA

DIAGRAMS & DRAWINGS
EN/ Whisper 6/8/12/16 Ultra for mobile applications / May 2009 / Copyright © 2009 Mastervolt 43
4.11 REMOTE CONTROL PANEL DRAWINGS

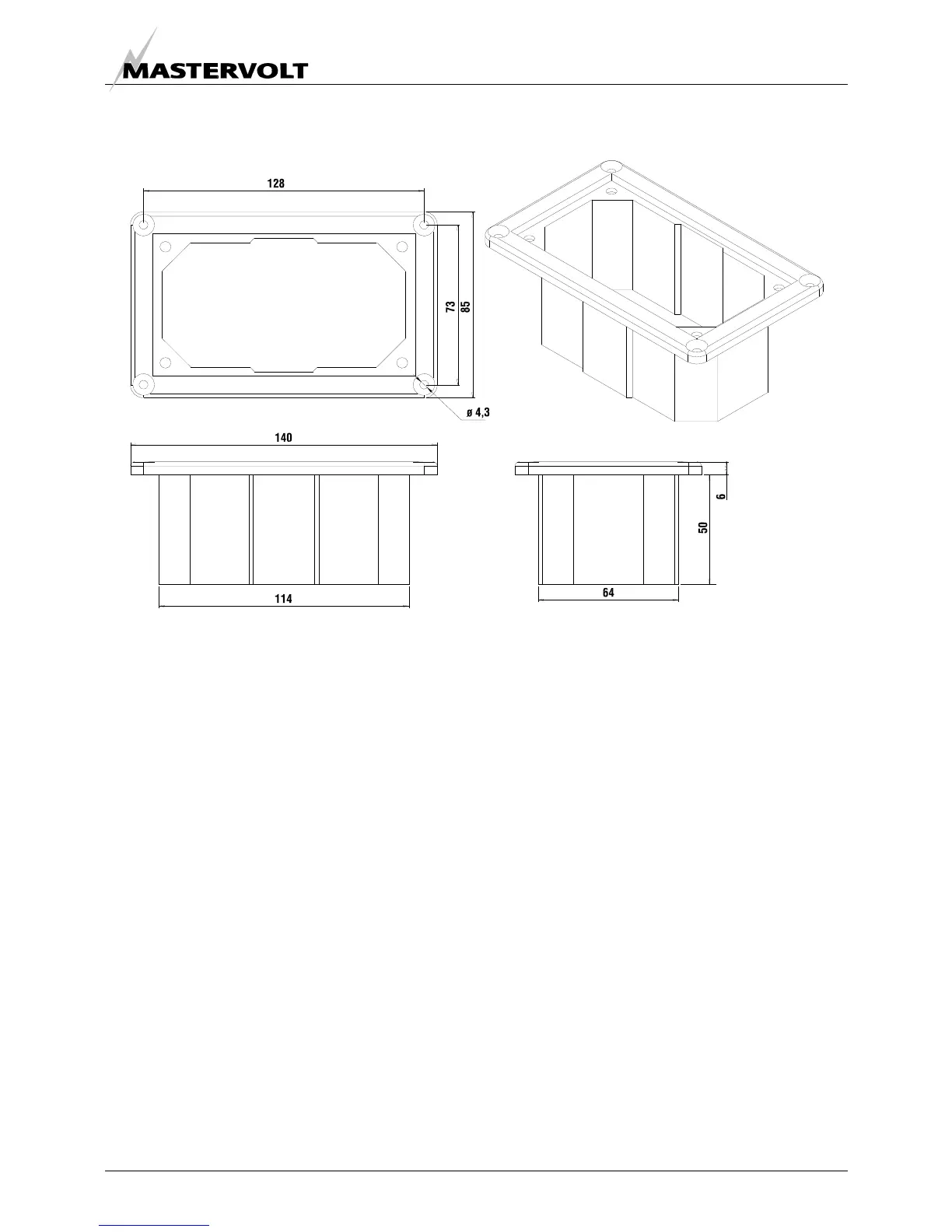

Fig. 48: Whisper remote panel
The remote panel comes in a carton that can be used as a template to drill the mounting hole
