4.13 DIMENSIONS WHISPER 8 ULTRA

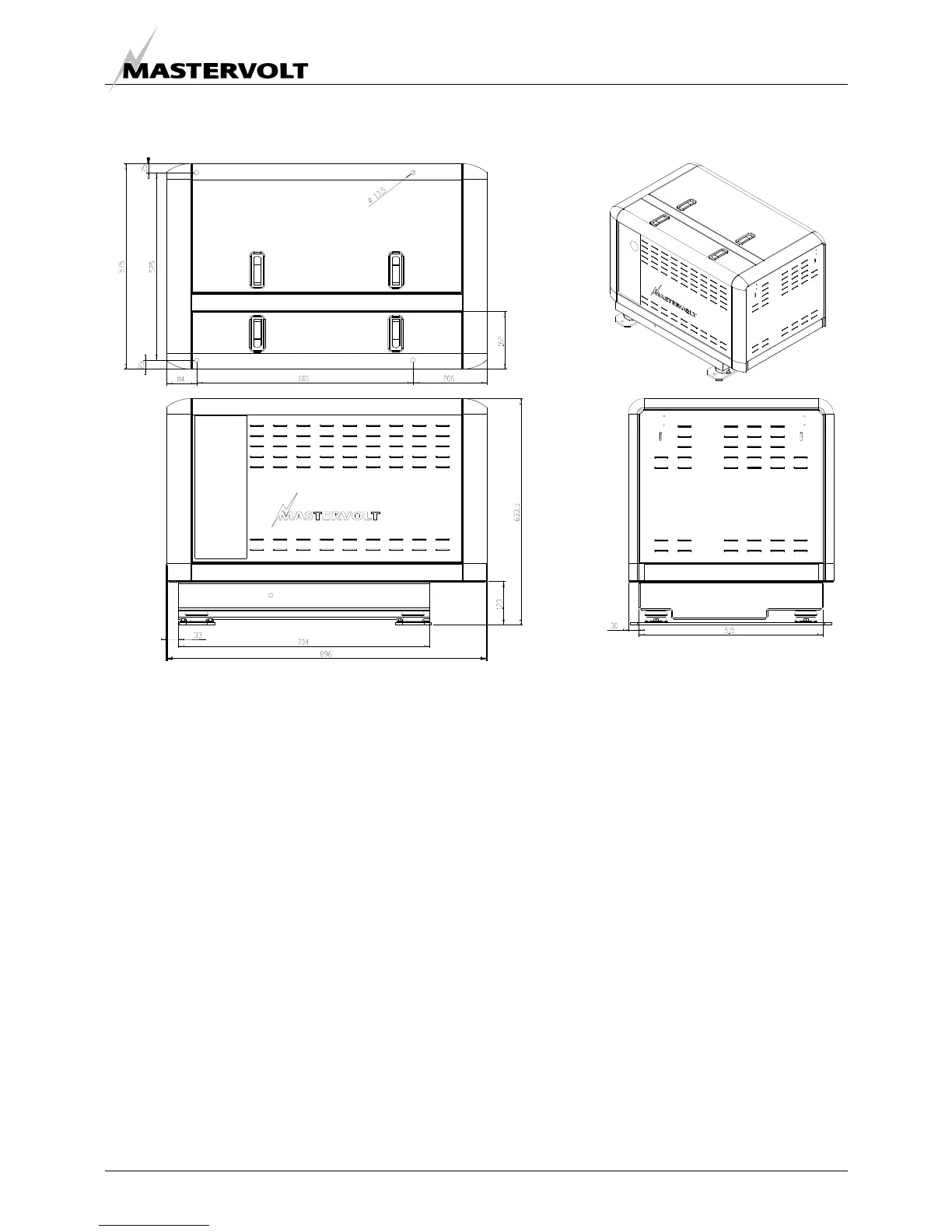

Fig. 50: Outer dimensions (mm) Whisper 8 Ultra
CONNECTIONS WHISPER 8 Ultra: BOX DIMENSIONS WHISPER 8 ULTRA
• exhaust: 1 ½” • length 900 mm (35.4”)
• fuel hose: 5/16” (8 mm) • width 575 mm (22.6”)
• radiator alternator: 3/4” (19 mm) • height 640 mm (25.2”)
• radiator engine: 1¼” (32 mm) • weight 335 kg
• battery +: AWG 2 (25 mm2)
• battery -: AWG 2 (25 mm2)
POWERCABLES ISO 13297 annex A (not included)
• 3x6 mm2 (not included)
REMOTE CONTROL:
• 15 meter 8 wire communication cable (included)
