DIAGRAMS & DRAWINGS
44 Copyright © 2009 Mastervolt / May 2009 / Whisper 6/8/12/16 Ultra for mobile applications / EN
4.12 DIMENSIONS WHISPER 6 ULTRA

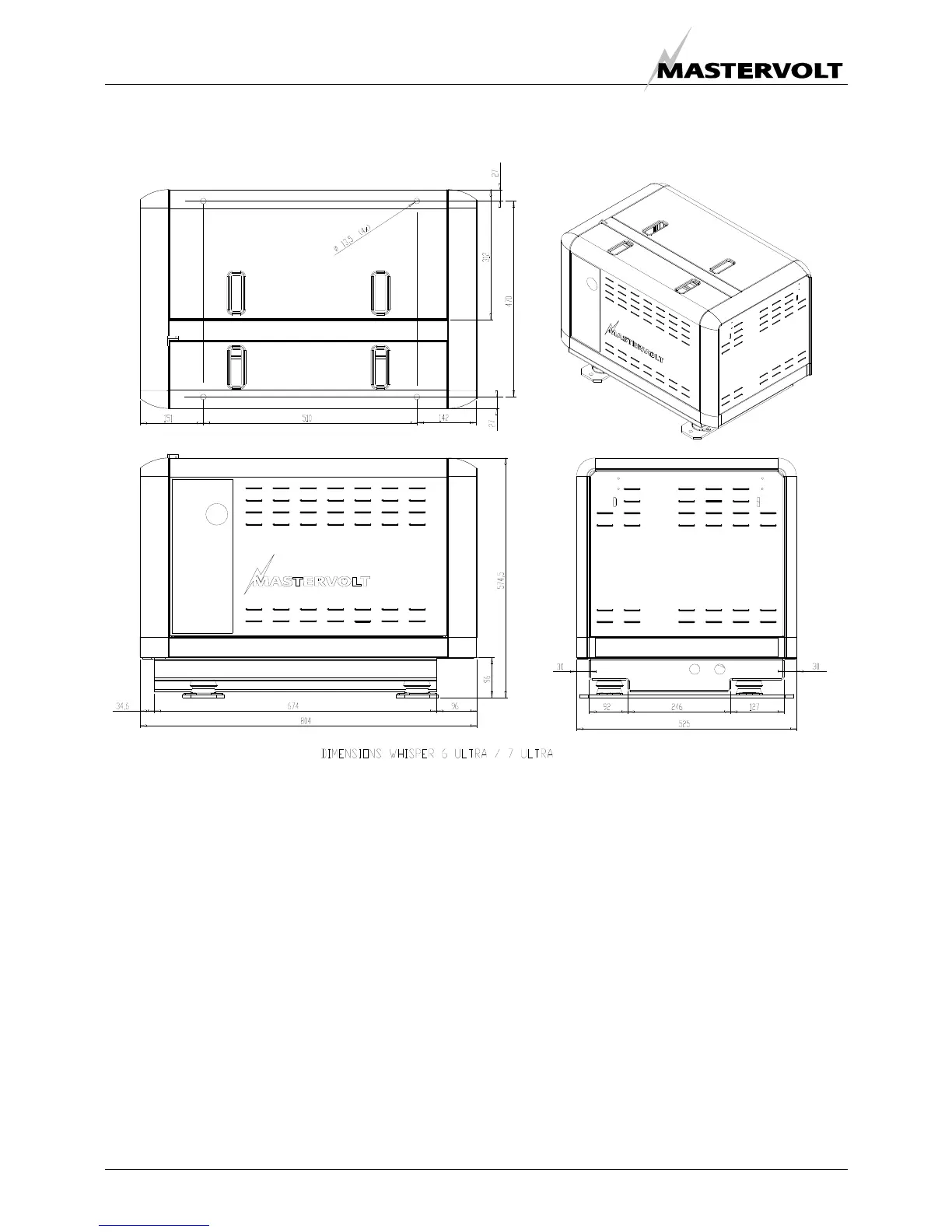

Fig. 49: Outer dimensions (mm) Whisper 6 Ultra
CONNECTIONS WHISPER 6 Ultra: BOX DIMENSIONS WHISPER WHISPER 6 Ultra
• exhaust: 1 ½” • length 80.5 cm (31.7’)
• fuel hose: 5/16” (8 mm) • width 52.5 cm (20.7’)
• radiator alternator: 3/4” (19 mm) • height 58.0 cm (22.8’)
• radiator engine: 1” (25.4 mm) • weight 240 kg (530 Lbs)
• battery +: AWG 2 (25 mm2)
• battery -: AWG 2 (25 mm2)
POWERCABLES ISO 13297 annex A
• 3 x AWG 12 (4 mm2) (not included)
REMOTE CONTROL:
• 15 meter (45 ft) 8 wire communication cable (included)
To Next Page
