INSTALLATION
US / Whisper 7/9.5/15/20 Ultra for mobile applications / May 2009 / Copyright © 2009 Mastervolt 11

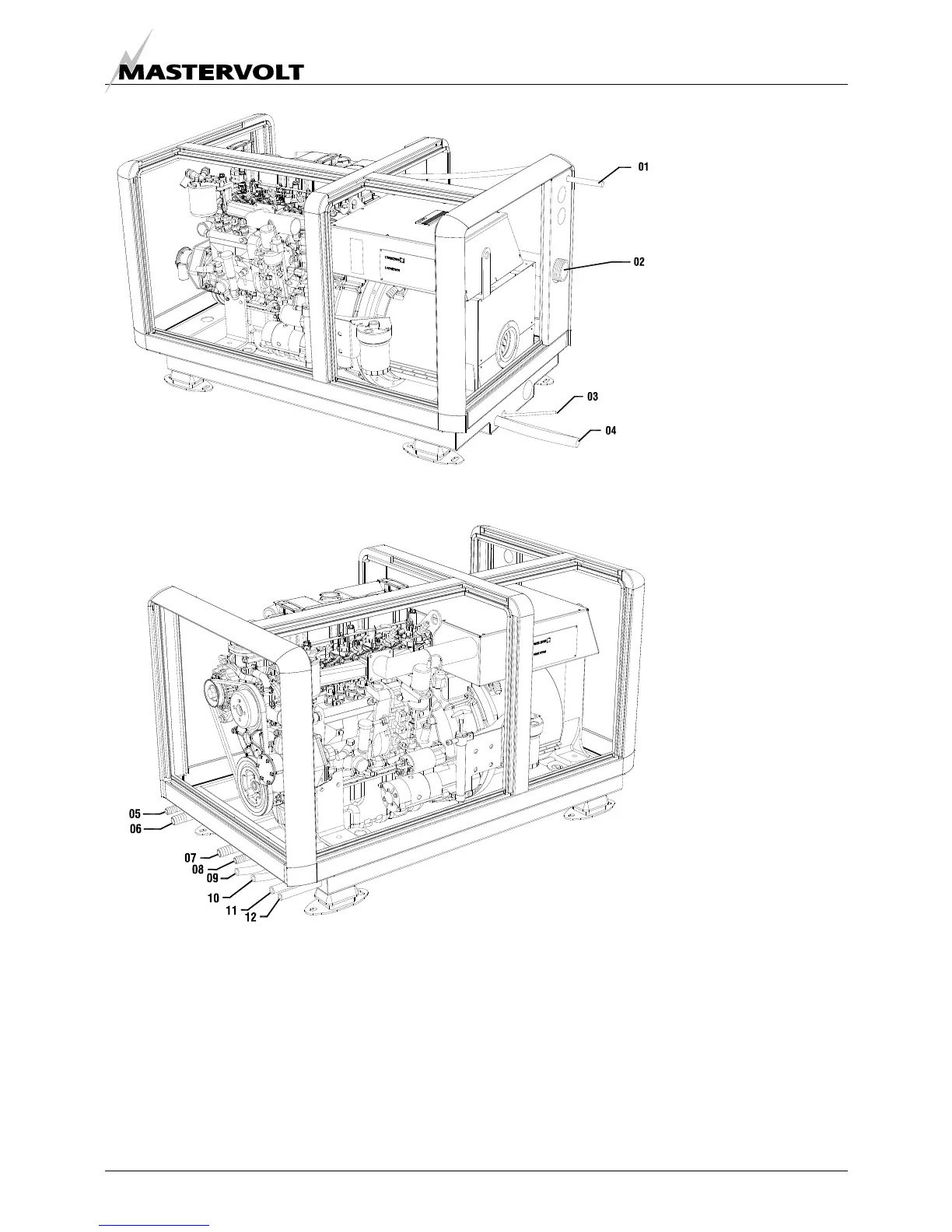

Fig. 10a Connections Whisper 20 Ultra
Fig. 10b Connections Whisper 20 Ultra
01 Expansion tank Ø5/16’
(Ø8mm)
02 Exhaust 1½”
03 Remote control
04 AC power output
05 Coolant engine out
06 Coolant generator out
07 Coolant generator in
08 Coolant engine in
09 Battery + (POS)
AWG2 (35mm2)
10 Battery – (NEG)
AWG2 (35mm2)
11 Fuel in Ø5/16’ (8mm)
12 Fuel out Ø5/16’ (8mm)
