INSTALLATION
10 Copyright © 2009 Mastervolt / May 2009 / Whisper 7/9.5/15/20 Ultra for mobile applications / US

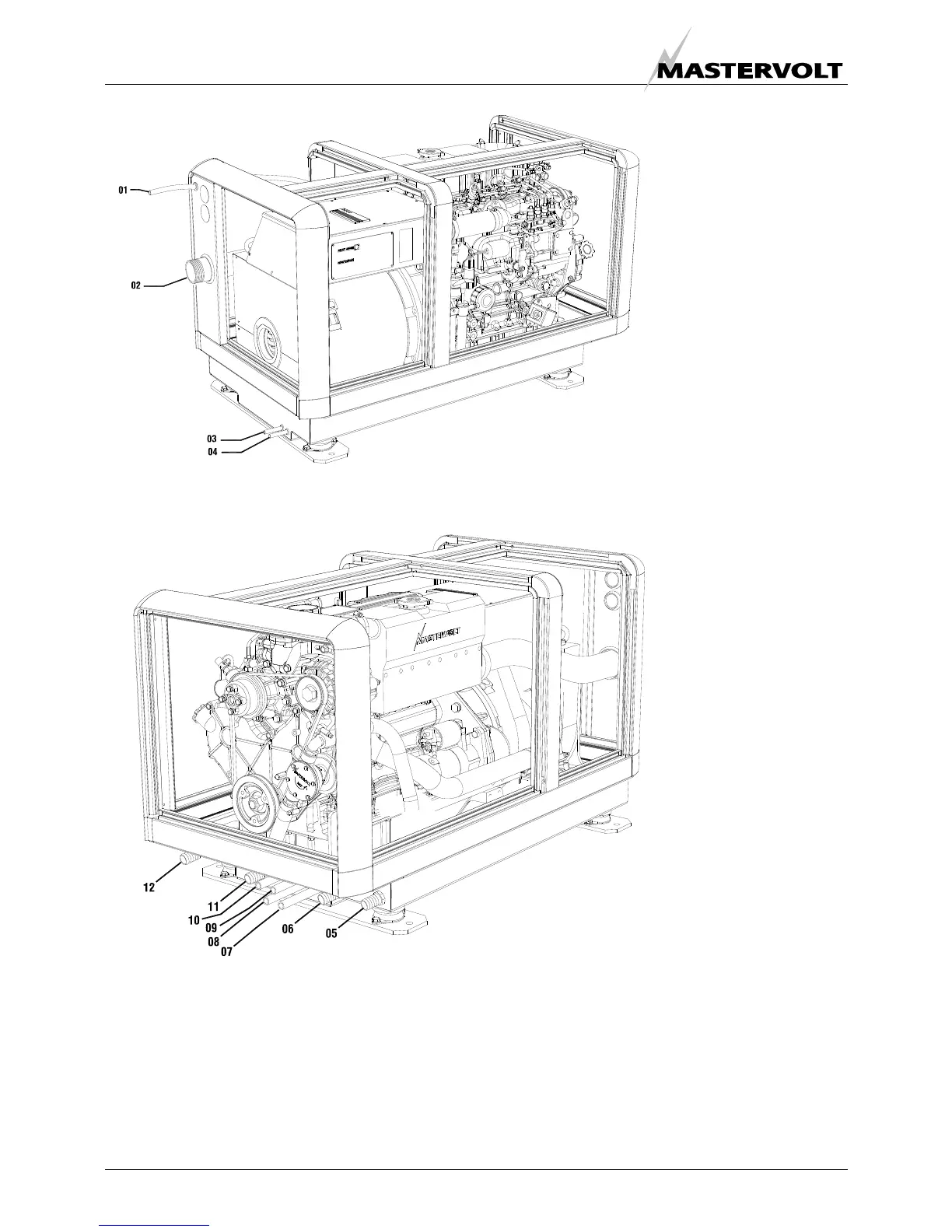

Fig. 9a Connections Whisper 15 Ultra
Fig. 9b Connections Whisper 15 Ultra
05 Coolant engine out
06 Coolant generator out
07 Fuel out Ø5/16’ (8mm)
08 Fuel in Ø5/16’ (8mm)
09 Battery – (NEG)
AWG3 (25mm2)
10 Battery + (POS)
AWG3 (25mm2)
11 Coolant generator in
12 Coolant engine in
01 Expansion tank Ø5/16’
(Ø8mm)
02 Exhaust 1½”
03 Remote control
04 AC power output
