Mastervolt WHISPER 15 ULTRA Installation Manual

INSTALLATION
US / Whisper 7/9.5/15/20 Ultra for mobile applications / May 2009 / Copyright © 2009 Mastervolt 9

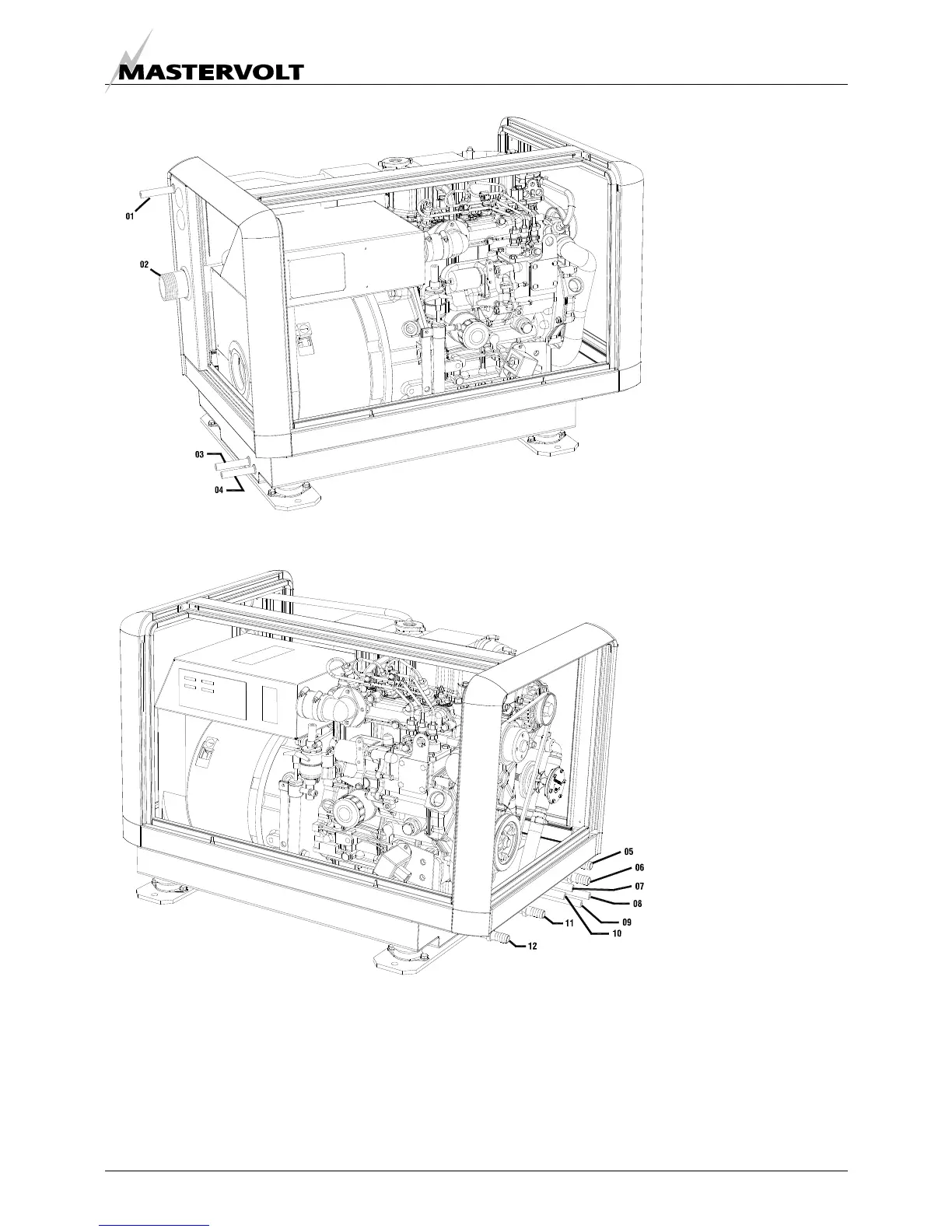

Fig. 8a Connections Whisper 9.5 Ultra
Fig. 8b Connections Whisper 9.5 Ultra
01 Expansion tank Ø5/16’
(Ø8mm)
02 Exhaust 1½”
03 Remote control
04 AC power output
05 Coolant engine out
06 Coolant generator out
07 Battery – (NEG)
AWG3 (25mm2)
08 Fuel out Ø5/16’ (8mm)
09 Fuel in Ø5/16’ (8mm)
10 Battery + (POS)
AWG3 (25mm2)
11 Coolant generator in
12 Coolant engine in
