INSTALLATION
EN / WHISPER 3.5 / October 2009 / Copyright © 2009 Mastervolt 13
1 See figure 15 Insert a MasterBus terminating device
into one of both communication ports (it doesn’t
matter which one) of the Digital Diesel Control Panel
on the generating set. Insert the communication cable
in the other communication port

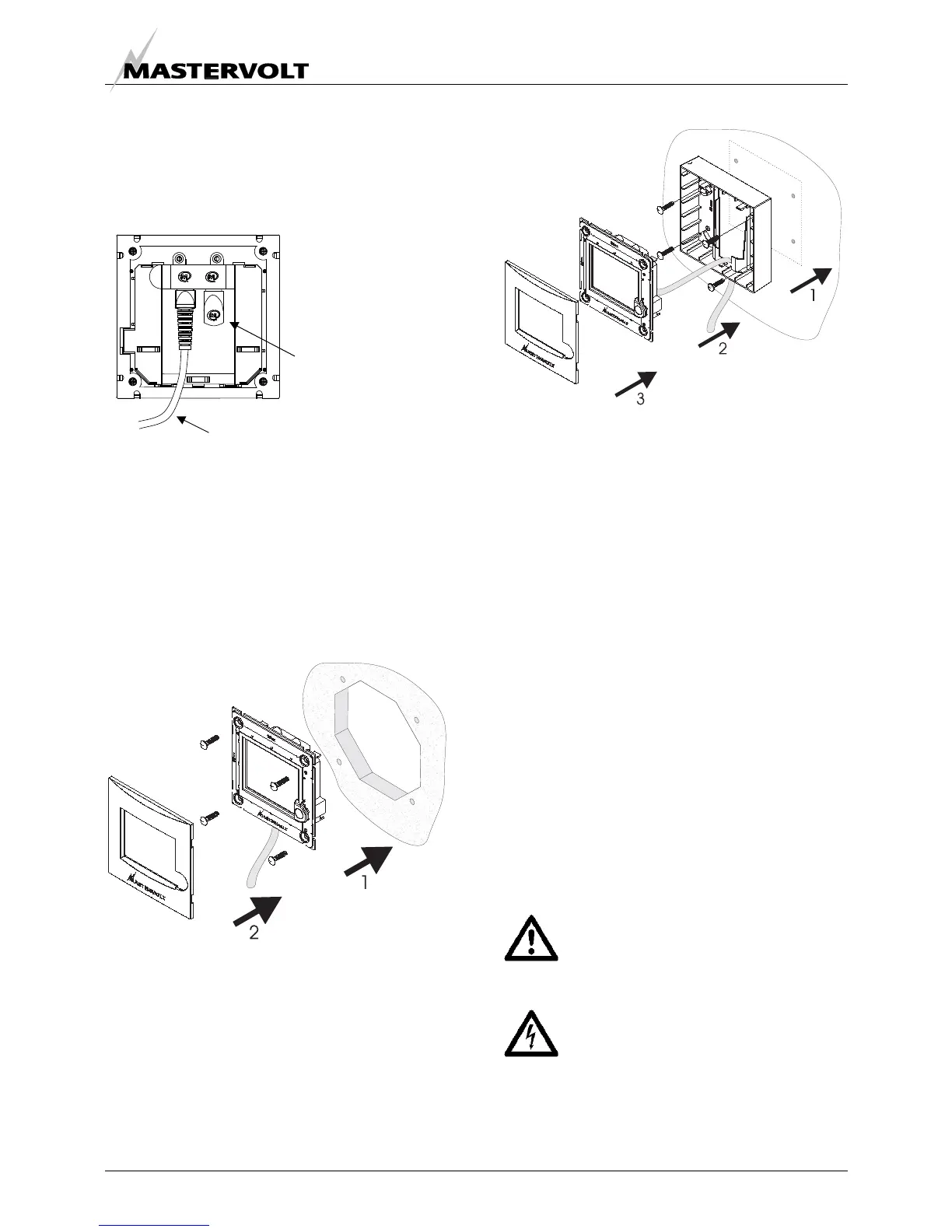

Figure 16
2 See figure 16. Connect the other end of the
communication cable to one of both communication
ports of the MasterView Easy. Insert a MasterBus
terminating device into the other communication port.
3 The Masterview Easy can be flush mounted or panel
mounted on a wall or board:
Figure 17
o Flush mounting (see figure 17):
• Remove the outer housing and remove the front
from the panel.
• Make a cut out in the mounting wall and drill the
holes using the saw template in the box or using
the dimensions at the back of the front plate.
• Mount the MasterView Easy onto the panel (1)
and then reattach the front (2).
Figure 18
o Panel mounting (see figure 18):
• Remove the outer housing and remove the front.
• Drill the holes using the dimensions at the back of
the front plate and fasten the outer housing (1).
• Click the panel into the outer housing (2).
• Reattach the front (3)
During first commissioning the generator set will be
recognized by the MasterBus network automatically. This
may take a few seconds. Then the Masterview Easy will
show the initial screen
Refer to the operation manual of the MasterView Easy for
initial settings and operating instructions
Event based commands
One of the main features of MasterBus is the possibility of
programming for interactive operation of the connected
devices, including automatic starting and stopping of the
generator set. This is done by means of event based
commands. Refer to the operation manual of the
MasterView Easy for details about programming these
event based commands.
Mastervolt cannot be held responsible for
damage caused by unattended running of
the generator due to the use of event
based commands
Using event based commands the
generator can start unexpectedly. When
working on the electrical system, the 30
Amp fuse must be removed from the Local
Control Panel and the battery plus cable
must be removed from the battery.
MasterBus
terminating device
MasterBus communication cable
Rear side MasterView
Easy
