Mastervolt whisper 3.5m User Manual

DIAGRAMS & DRAWINGS
EN / WHISPER 3.5 / October 2009 / Copyright © 2009 Mastervolt 27

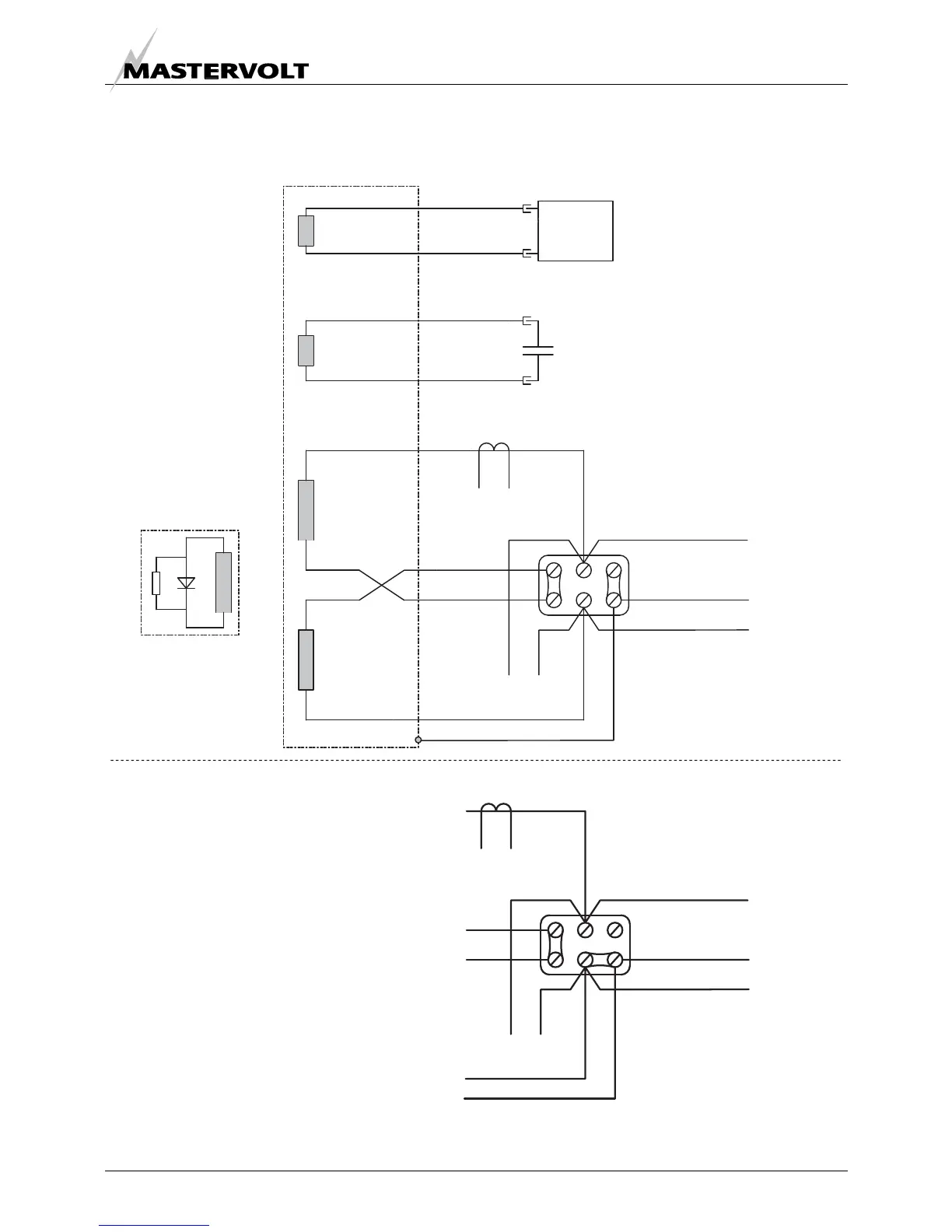

3.3 AC WIRING DIAGRAM 230V / 50HZ
Figure 30 AC wiring diagram
230V 50Hz
N
PE
L1
DDC/ct-1
(11)
RED
TRANSFORMER
(11)
BLACK
CURRENT
DDC/AC-1
YELLOW/GREEN
BLUE
YELLOW/GREEN
BROWN
BROWN (33) BLUE (33)
EARTH AND NEUTRAL
CONNECTED
STATOR
ROTOR
L1
N
PE
BLACK
TRANSFORMER
YELLOW/GREEN
CAPACITOR
MAIN WINDING
MAIN WINDING
(4)
(3)
(4)
CURRENT
CHARGER
WINDING
EXCITATION
BATTERY
(3)
(2)
(1)
RED
(10)
(10)
BLUE
BROWN
ALT
YELLOW/GREEN
ALT
REGULATOR
WCH
J1
J2
(11) (11)
DCC/ct-1
DCC/AC-1
BROWN (33)
BLUE (33)
EARTH AND NEUTRAL
NOT CONNECTED
230V 50Hz
