INSTALLATION
12 Copyright © 2009 Mastervolt / October 2009 / WHISPER 3.5 / EN
If the generating set and the exhaust system have been
installed correctly, neighbouring boats will not be disturbed
by generating set noise, With the "super silent" exhaust
system, generating set noises are almost inaudible. For
optimal noise reduction, the sea water outlet from the
exhaust/water separator (center outlet on the unit) should
be installed below the water level to eliminate noisy
splashing of the effluent sea water.

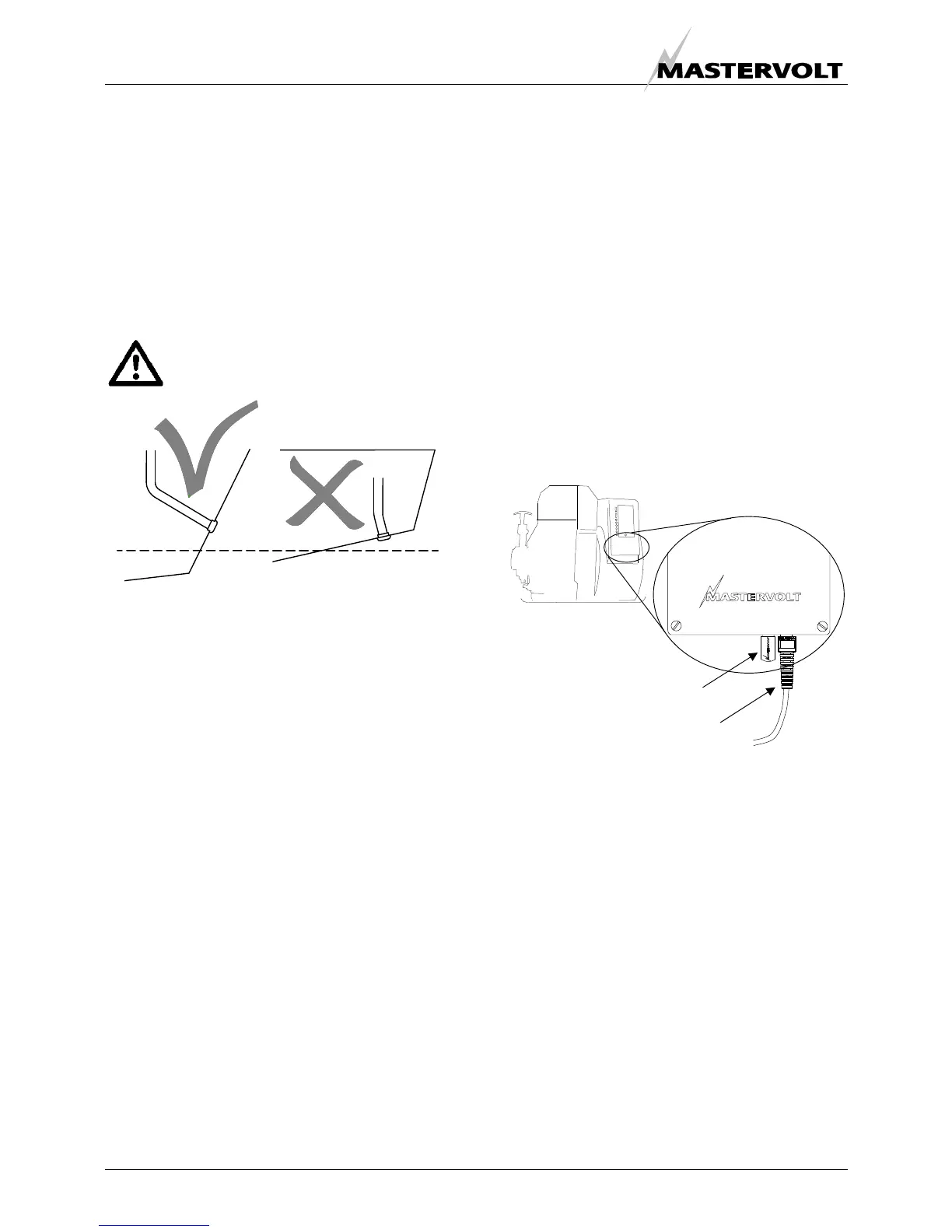

The through-hull outlet for the exhaust fumes should not
direct the fumes directly toward the water surface as this
will cause excessive noise (refer to figure 14).
Do not direct the outlet directly toward the
water surface.
Figure 14
1.4.4 Control system
1 DC CONTROL SYSTEM
The electrical control system is standard in 12 Volt with
negative earth. Non- earth return is available as an option
for aluminium vessels to prevent corrosion.
All electrical wiring has been prepared on the generating
set prior to despatch from the factory. Operation of the
engine is controlled by a microprocessor based control
system called “Digital Diesel Control”. The Digital Diesel
Control Panel is integrated in the generating set.
MasterBus
The generating set is compatible with MasterBus: a fully
decentralized data network for communication between
the different Mastervolt system devices such as the
inverter, battery charger, generator, batteries and many
more. See chapter 4 for details
The generating set as well as the rest of the electrical
system can be monitored and controlled by any MasterBus
compatible remote control panel. The MasterView Easy is
a MasterBus compatible monitoring and control panel that
is standard included in the delivery of the generating set.
Important to know:
This generating set is only feasible for the connection of
MasterBus compatible remote control panels. Connection
of other remote control panels such as the Digital Diesel
Control panel, the System Manager AC + Whisper panel
and the Power System Control Panel is not possible.
The Masterview Easy must be mounted on an easy
accessible location, protected against rain, moist, dust and
condensation. For good visibility avoid installing the panel
in direct sunlight
Installation of the MasterView Easy
Below mentioned steps describe a basic installation of the
MasterView Easy in combination with the generating set.
Refer to the separate user’s manual of the Masterview
Easy if you want to add any other Mastervolt system
devices to the MasterBus network (see
www.mastervolt.com)
Figure 15
DIGITAL DIESEL CONTROL PANEL
MasterBus terminating device
MasterBus communication cable
OK!
WRONG!
