INSTALLATION SPECIFICATIONS
EN / WHISPER 3.5 / October 2009 / Copyright © 2009 Mastervolt 19
2.5 INSTALLATION MATERIALS WHISPER 3.5

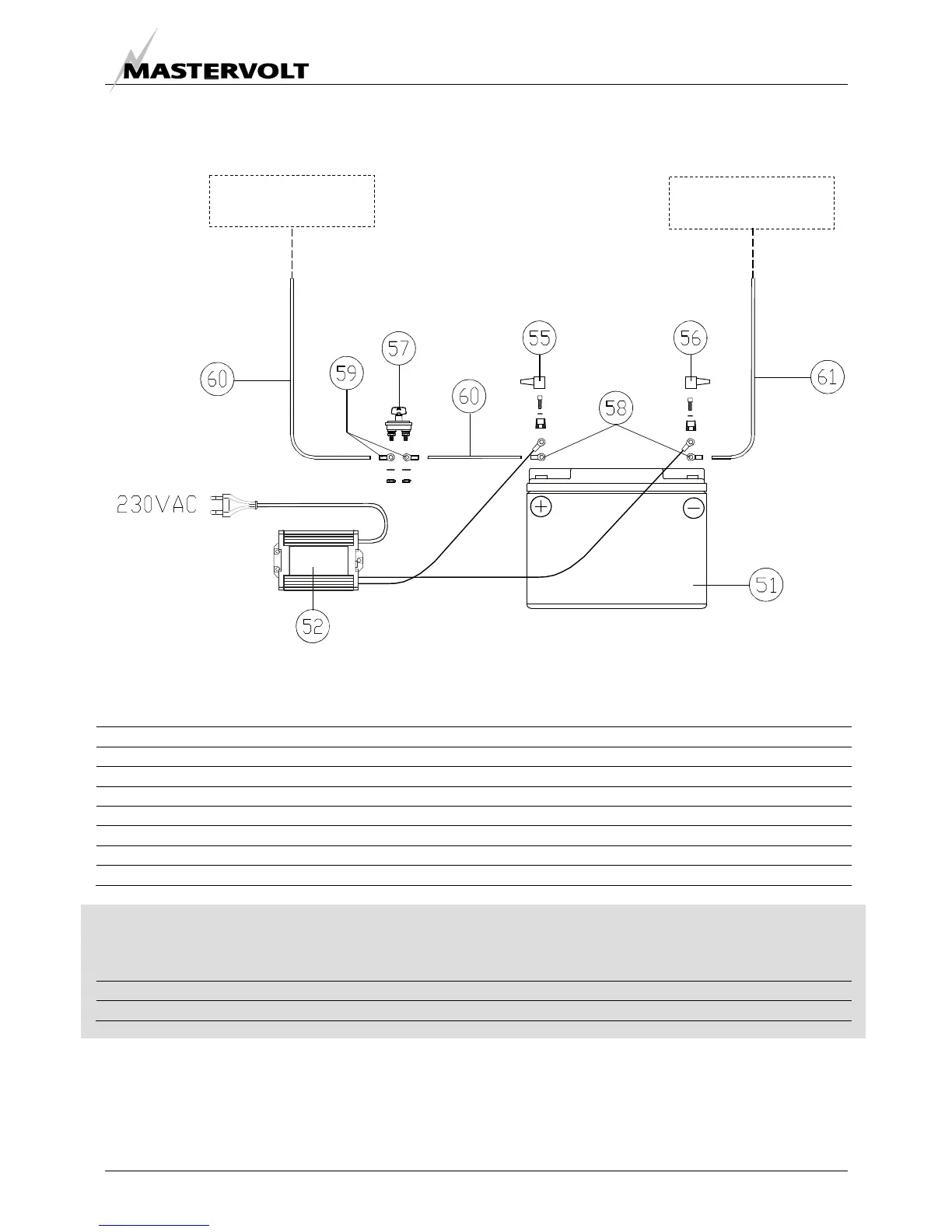

Figure 24: Installation materials battery installation kit
BATTERY INSTALLATION KIT 55 Ah
pos. qty article no description
51 1 62000550 MV 12/55 Ah AGM Battery
52 1 43011000 IVO Smart 12/10 230V/50-60Hz IP65 battery charger
55 1 68230302 Terminal Cover RED 230N3V02
56 1 68230314 Terminal Cover BLACK 230N3V14
57 1 79006005 Battery switch ON/OFF with key 250A
58 2 6503001606 Cable lug 16mm² / M6
59 2 6503001610 Cable lug 16mm² / M10
TOTAL 50230208 BATTERY INSTALLATION KIT 55Ah
OPTIONAL INSTALLATION MATERIALS
• Additional installation parts
pos. qty article no description
60 6501208010 Cable 16mm² red per 100 meter
61 6501208020 Cable 16mm² black per 100 meter
Generator
battery positive (+)
Generator
battery negative (–)
