INSTALLATION
6 Copyright © 2009 Mastervolt / October 2009 / WHISPER 3.5 / EN

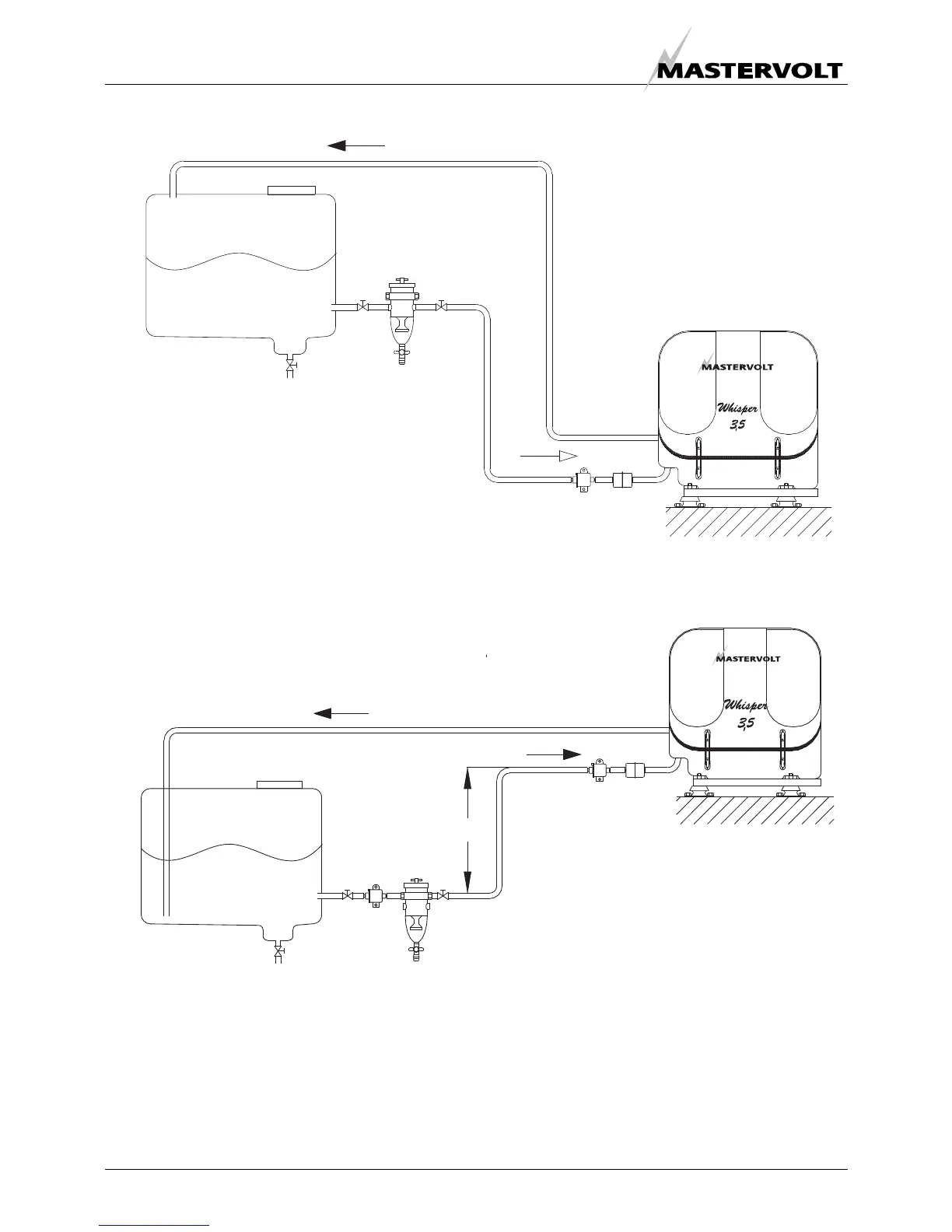

Figure 3: Fuel supply (fuel tank is above the generating set)
Figure. 4: Fuel supply (fuel tank is above the generating set)
> 1m
1
2
3
4
5
6
7
1 Fuel return;
2 Fuel supply;
3 Prefilter / water separator (optional);
4 Extra fuel lift pump (optional);
5 Fuel tank;
6 Standard fuel lift pump;
7 Standard fuel filter.
1
2
3
5
6
7
1 Fuel return;
2 Fuel supply;
3 Prefilter / water separator (optional);
5 Fuel tank;
6 Standard fuel lift pump;
7 Standard fuel filter.
