Matchless G80CS - BRAKE SHOE ADJUSTMENT; Brake Drums; Brake Shoes; Brake Shoe Adjustment Procedure

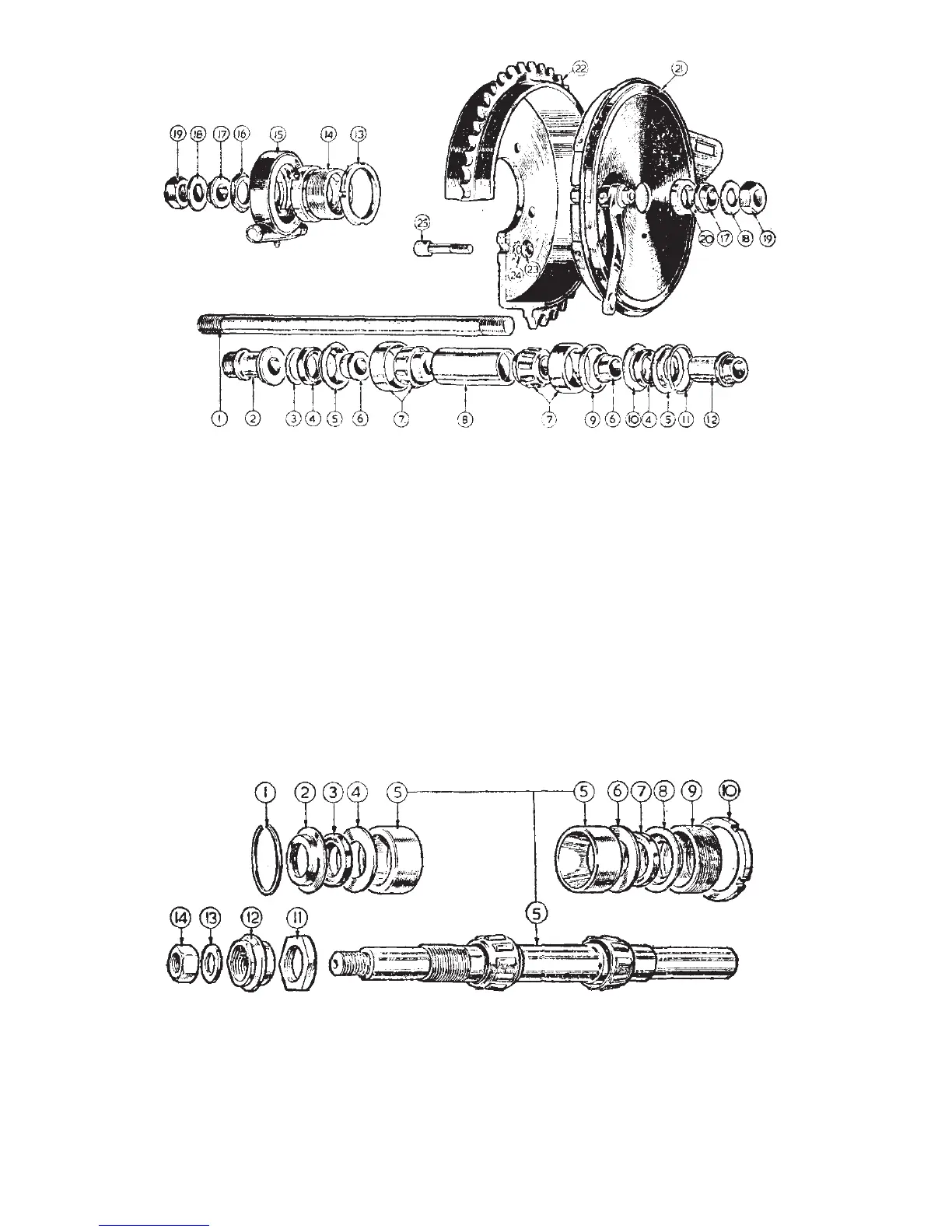

Illustration 23
Showing rear wheel bearings and brake drum
(Rigid Frame Models)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
CENTRE SOLID WHEEL SPINDLE.
SPEEDOMETER GEAR BOX SLEEVE.
RING RETAINING OIL SEAL (Small).
OIL SEAL.
CUP FOR OIL SEAL.
OIL SEAL DISTANCE PIECE.
TAPER ROLLER BEARING COMPLETE.
SPACER BETWEEN BEARINGS.
BEARING SPACING COLLAR (Brake Side).
RING RETAINING OIL SEAL (Large).
CIRCLIP.
INNER SPACER FOR BRAKE COVER PLATE.
LOCK NUT FOR ADJUSTING RING.
ADJUSTING RING.
1. CIRCLIP.
2.OIL SEAL CUP
3. OIL SEAL
4. WASHER RETAINING SEAL.
5. WHEEL SPINDLE COMPLETE.
6. WASHER RETAINING SEAL.
7 OIL SEAL
8. OIL SEAL CUP.
9. ADJUSTING RING.
10. ADJUSTING RING LOCKNUT.
11. NUT LOCATING BRAKE COVER PLATE.
12. NUT SECURING BRAKE COVER PLATE.
13. SPINDLE END WASHER.
14. SPINDLE END NUT.
Illustration 24
Front wheel bearings
15
16
17
18
19
20
21
22
23
24
25
SPEEDOMETER GEAR BOX COMPLETE.
SPEEDOMETER GEAR BOX FIXING NUT.
SPACER FOR FORK END.
SPINDLE END WASHER.
SPINDLE END NUT.
OUTER SPACER FOR BRAKE COVER
PLATE.
BRAKE COVER PLATE COMPLETE.
BRAKE DRUM.
BRAKE DRUM FIXING BOLT NUT.
BRAKE DRUM FIXING BOLT LOCK
WASHER.
BRAKE DRUM FIXING BOLT.
65
