Matchless G80CS - Showing Front Hub and Brake also Rear Hub; Showing Rear Wheel Bearings and Brake Drum

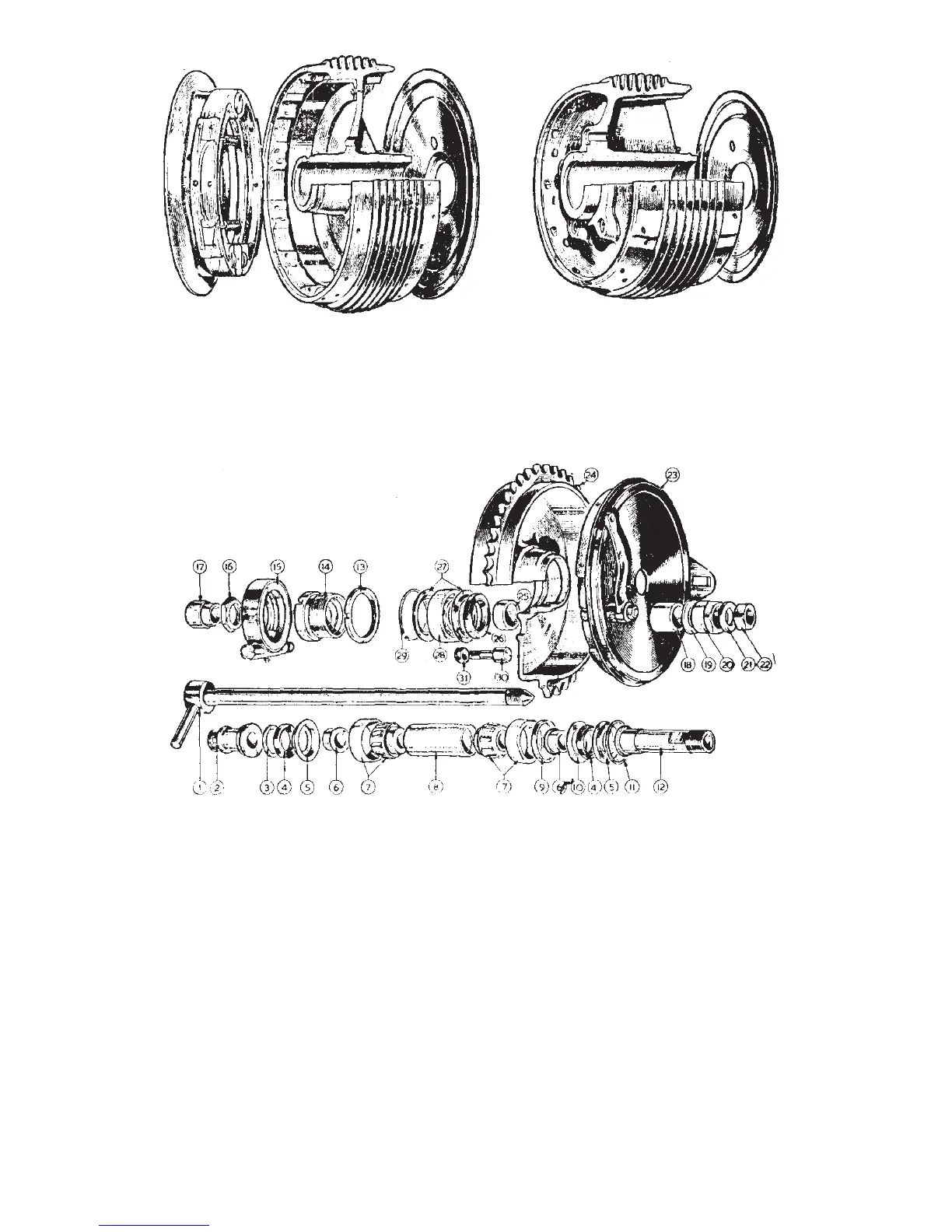

Illustration 21
Showing front hub and brake also rear hub
Illustration 22
Showing rear wheel bearings and brake drum
(Spring Frame Models)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
WITHDRAWABLE WHEEL SPINDLE
SPEEDOMETER GEAR BOX SLEEVE.
RING RETAINING OIL SEAL (Small).
OIL SEAL.
CUP FOR OIL SEAL.
OIL SEAL DISTANCE PIECE.
TAPER ROLLER BEARING COMPLETE.
SPACER BETWEEN BEARINGS.
BEARING SPACING COLLAR (Brake Side).
RING RETAINING OIL SEAL (Large).
CIRCLIP.
BRAKE DRUM DUMMY SPINDLE.
LOCK NUT FOR ADJUSTING RING.
ADJUSTING RING.
SPEEDOMETER GEAR BOX COMPLETE.
SPEEDOMETER GEAR BOX FIXING NUT.
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
SPACER FOR WITHDRAWABLE SPINDLE.
OUTER SPACER FOR BRAKE COVER
PLATE.
WASHER FOR COVER PLATE FIXING NUT.
BRAKE COVER PLATE FIXING NUT.
SPINDLE END WASHER.
SPINDLE END NUT.
BRAKE COVER PLATE COMPLETE.
REAR BRAKE DRUM.
INNER SPACER FOR BRAKE COVER PLATE.
BRAKE DRUM BEARING OIL SEAL,
BRAKE DRUM OIL SEAL WASHERS.
BRAKE DRUM BALL BEARING.
CIRCLIP RETAINING BEARING.
DRIVING PEG (5 Off).
NUT SECURING DRIVING PEG (5 Off).
64
