Nov.2018 Rev 1.0 www.mateksys.com
S4
S3
S2
S1
GND
4in1 ESC
w/o current sensor
5V
GND
VBAT

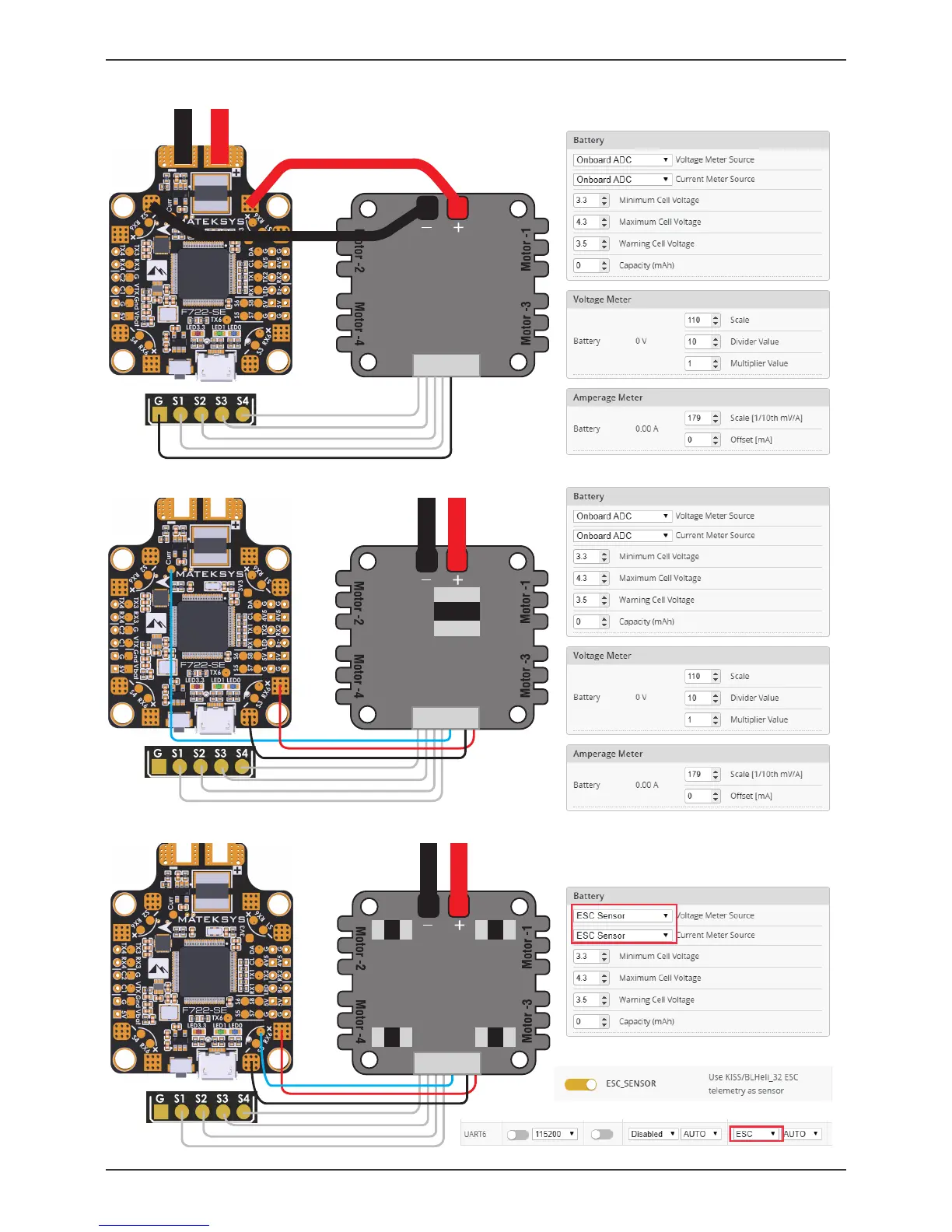

Wiring (4in1 ESC)
MCU
STM32F722RET6
LIPO
14~16AWG
Use the current sensor scale of 4in1
MCU
STM32F722RET6
MCU
STM32F722RET6
F722-SE Current sensor 184A, scale 179
S4
S3
S2
S1
CRNT
4in1 ESC
w/ current sensor
5V
GND
VBAT
LIPO
S4
S3
S2
S1
TLM
5V
4in1 ESC BLHELI32
w/ individual current sensor
GND
VBAT
LIPO
