23

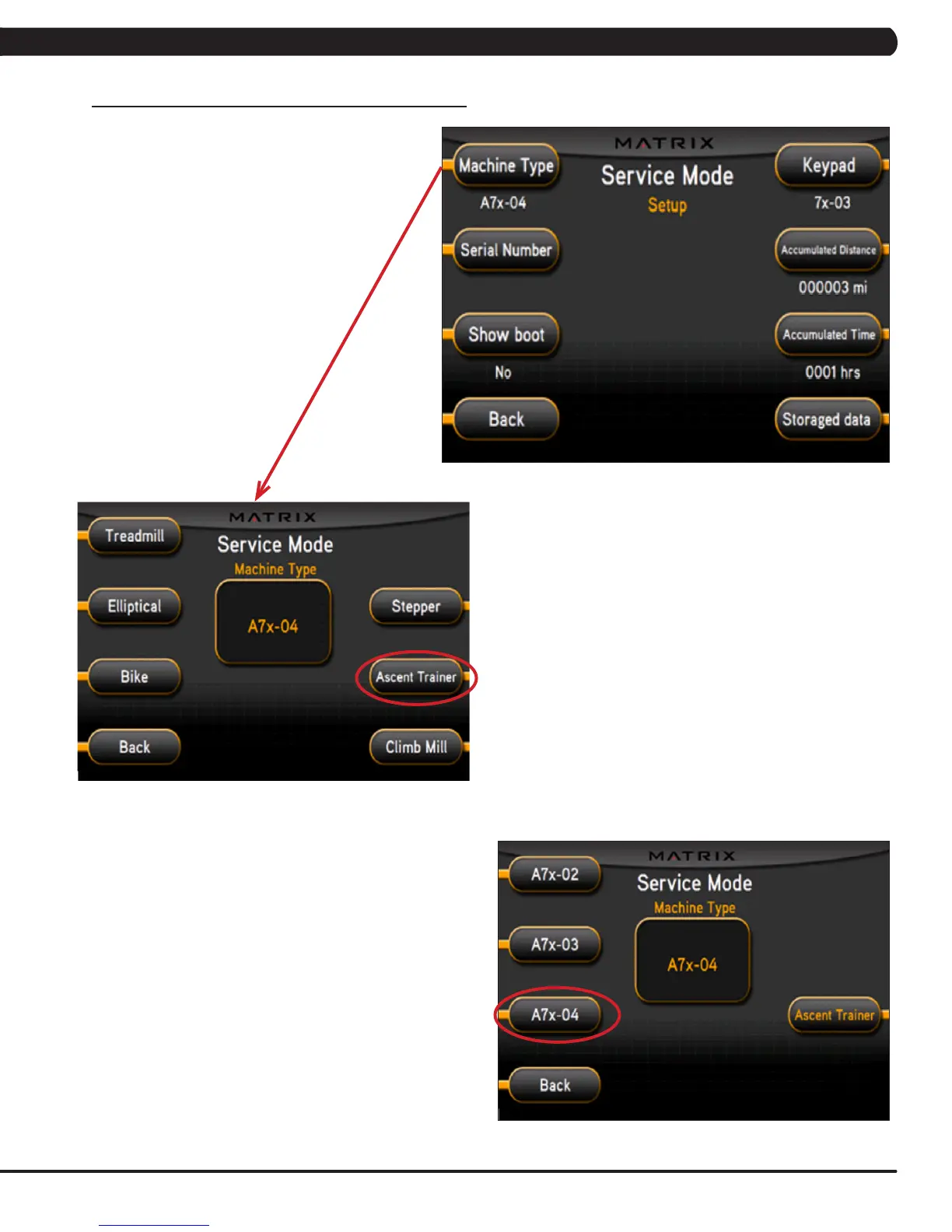

This setting
is for
non-self powered
frames (A5x-02-F).
This setting
is for
self powered
frames (A5x-03-F)
with dual
incline motors.
.
This setting
is for
the new
suspension style Ascent Trainer
(A5x-04-F).
This is
the setting
that should
be used
for this
model.
7.2 SERVICE
MODE -
SETUP
T
AB
- CONTINUED
CHAPTER
7:
SER
VICE
MODE
25
27
Table of Contents
Default Chapter
2
Table of Contents
2
Chapter 1: Serial Number Location
4
Chapter 2: Important Safety Instructions
6
Read and Save These Instructions
6
Electrical Requirements
7
Chapter 3: Preventative Maintenance
8
Recommended Cleaning Tips
8
Check for Damaged Parts
8
Care and Maintenance Instructions
9
Chapter 4: Console Overlay and Workout Description
10
Console Description
10
Workout Setup Steps - Manual
11
Workout Setup Steps - Fat Burn
11
Workout Setup Steps - Training Workout
11
Workout Setup Steps - Cooper Fitness Test
12
Workout Setup Steps - Target Heart Rate
13
Workout Setup Steps - Constant Watts
13
Auto Calibration Procedure
14
Chapter 5: Manager Mode
15
Manager Mode Overview
15
Manager Mode - about Tab
15
Manager Mode - Time Tab
16
Manager Mode - Defaults Tab
17
Manager Mode - Language Tab
18
Manager Mode - TV Tab
19
Manager Mode - Other Tab
19
Chapter 6: Engineering Mode
20
Engineering Mode Overview
20
Engineering Mode - Calibration Tab
21
Engineering Mode - Statistics Tab
22
Engineering Mode - Self Power Tab
22
Engineering Mode - Clubs Tab
23
Engineering Mode - Club ID Tab
23
Chapter 7: Service Mode
24
Service Mode Overview
24
Service Mode - Setup Tab
25
Service Mode - Test Tab
28
Service Mode - Date / Time Tab
29
Service Mode - Log Tab
30
Chapter 8: Troubleshooting
31
Electrical Diagram
31
LCB Error Indicators
34
Console Error Codes
35
TV Troubleshooting - Overview
36
Error Code Troubleshooting - 0140 / 01B2
37
Error Code Troubleshooting - 01A0
38
Troubleshooting - no Power to the Console
39
Troubleshooting - Heart Rate Issues
40
Chapter 9: Part Replacement Guide
41
Front Disk Replacement
41
Front Shroud Replacement
42
Lower Control Board (LCB) Replacement
45
Generator Replacement
46
Generator Belt Replacement
48
Drive Belt Replacement
49
Pulley Axle Set Replacement
50
Drive Axle Set Replacement
51
Crank Set Replacement
55
Console Replacement
56
Overlay / Keypad Replacement
57
Console Mast Handlebar Replacement
59
Incline Motor Replacement
60
Dual Action Handlebar Replacement
63
Foot Pedals Replacement
64
Pedal Arm Replacement
65
Link Arm Replacement
66
Swing Arm Replacement
67
Vertical Stabilizer Arm Replacement
68
Incline Arm Cover Replacement
69
Handlebar Service
70
Testing the Ascent Trainer
71
Chapter 10 : Exploded Diagrams
72
Ascent Trainer Specifications
72
Ascent Trainer Assembly Steps
74
Stabilizing the Ascent Trainer
86
TV Programming Instructions
87
Chapter 11 : Software Upgrade Procedure
90
Software Upgrade Procedure
90
