Matrix A7X-04 User Manual

67
9.21 HANDLEBAR SERVICE
CHAPTER 9: PART REPLACEMENT GUIDE

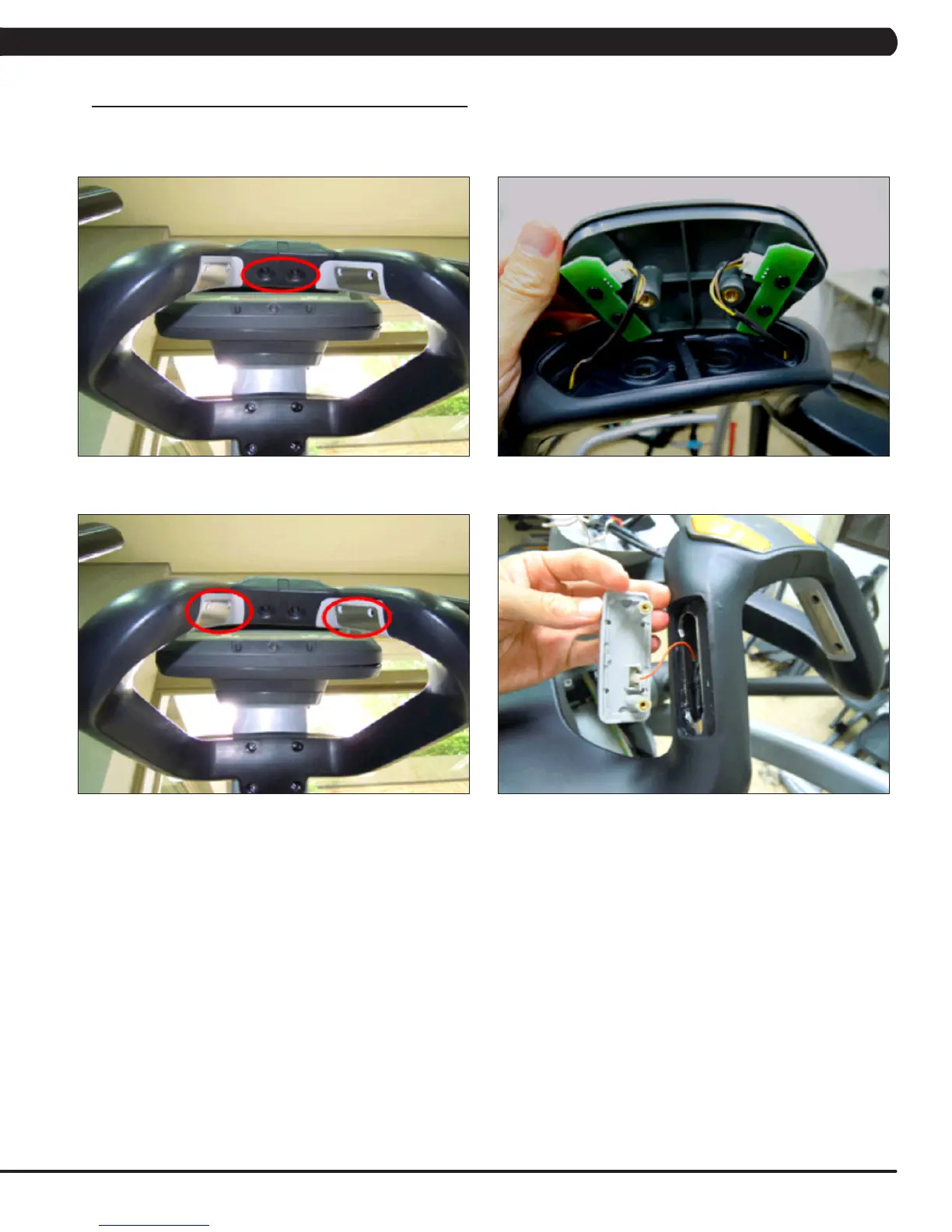

1) All items on the handlebar are removed using a Phillips screwdriver from the underside of the bar.
2) Once the screws are removed, lift the part carefully, then disconnect any wire connections to fully remove the part. This includes any
resistance & elevation buttons and heart rate grip plates (Figures A - D).
FIGURE D
FIGURE B
FIGURE C
FIGURE A
