Matrix A7X-04 User Manual

58

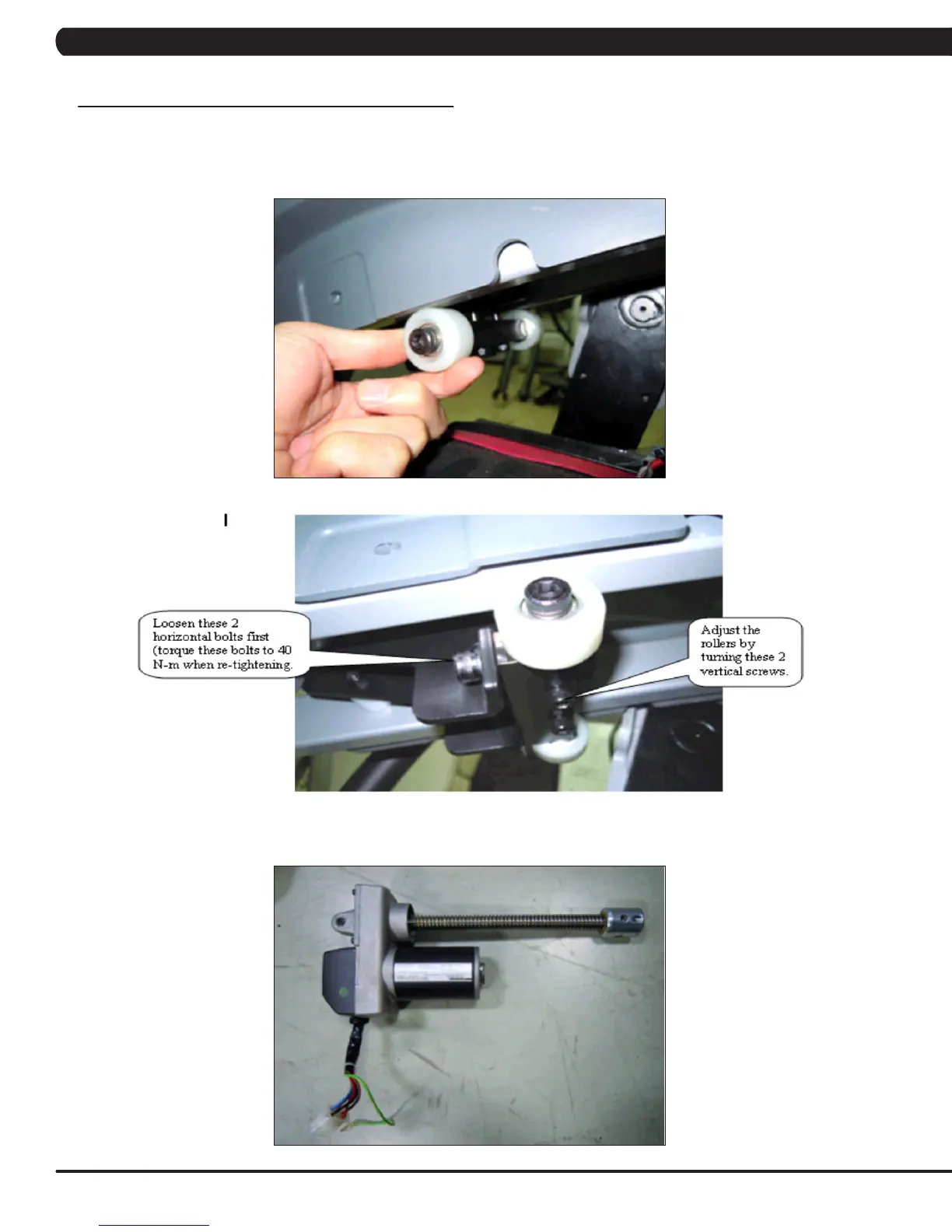

9.13 INCLINE MOTOR REPLACEMENT - CONTINUED
CHAPTER 9: PART REPLACEMENT GUIDE
FIGURE E
FIGURE F
7) While the incline motor is out, the carriage rollers should be checked. Turn the rollers. The rollers should turn smoothly with only a small
amount of friction (Figure E).
8)Iftherollersneedtobeadjusted,loosenthehorizontalboltssimultaneouslyrst,thenadjusttherollerfrictionbyadjustingtheverticalscrews
simultaneously (Figure F).
9) Prepare the new incline motor for installation. The new incline motor should have the nut placed close to the end of the shaft (Figure G).
FIGURE G
