10

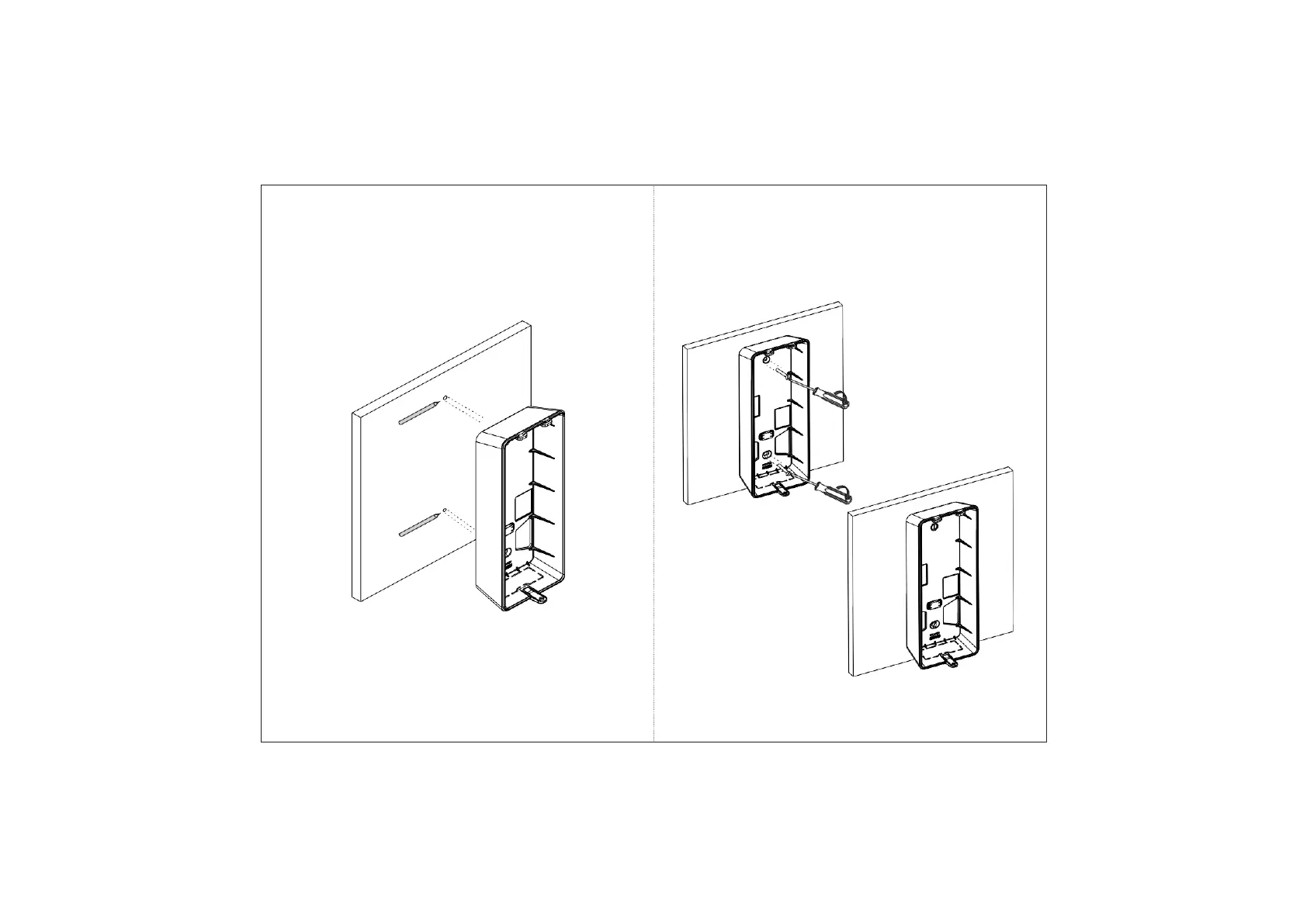

Step 2:
Drill the screw holes along the traced markings. Fix Wall
Mounting plate with the supplied screws. Tighten the screws with a
screw driver.
9
2
1
Installation Instruction: Wall Mounting
Step 1:
Place the Wall Mounting plate and trace screw holes 1
and 2 on the wall where the device is to be installed.
