Flush Mounting
Plate
Step 2: Place and fix the Flush Mounting plate with the supplied
screws. Tighten the screws with a screw driver.
Figure 9
15
C
D
D
C
A
B
Flush Mounting
Template
B
Figure 8
Figure 7
A
Installation Instruction: Flush Mounting

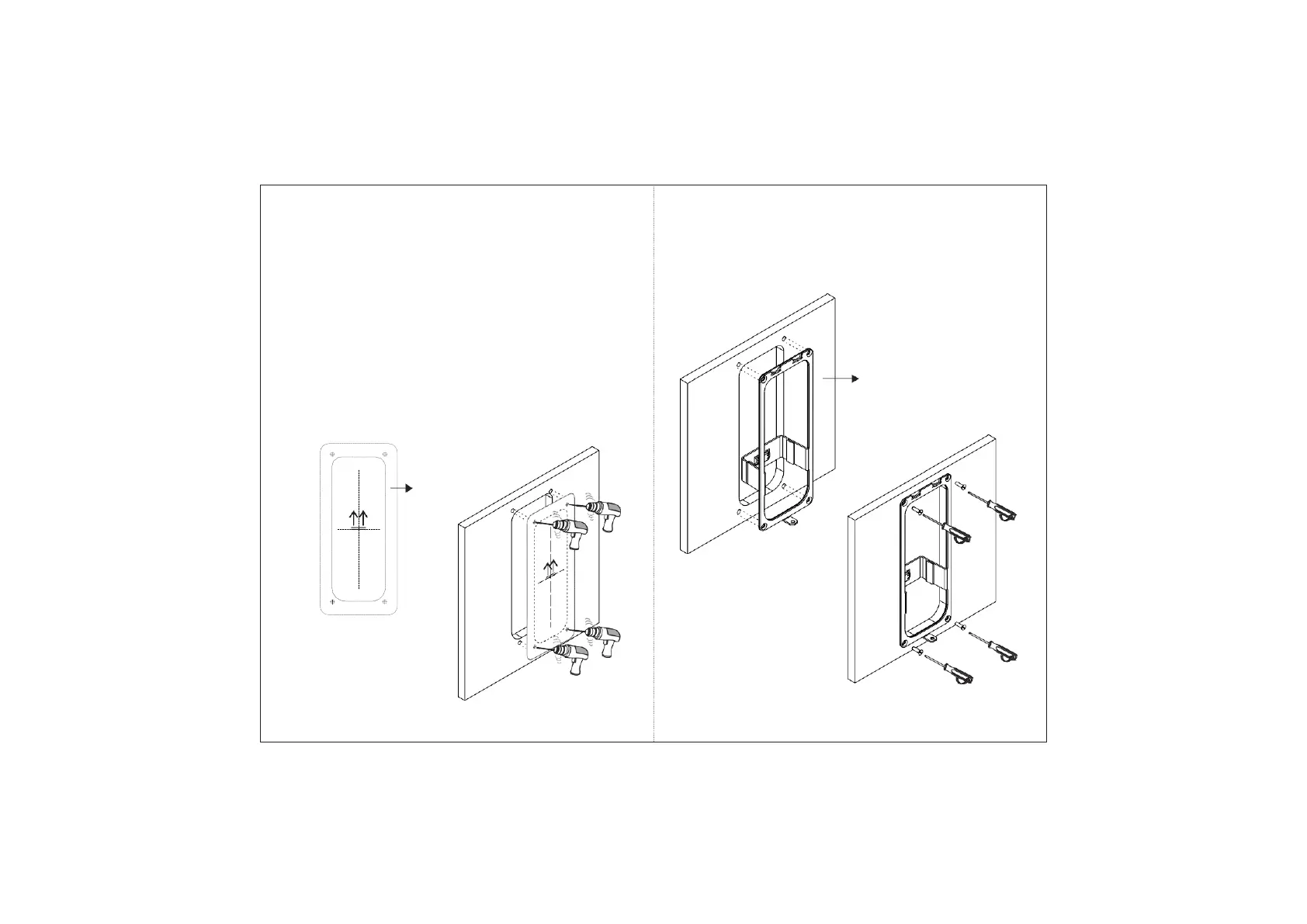

Step 1: Place the Flush Mounting Template on the desired
installation surface.
• Mark the area along the dotted line and trace the four screw
holes (say A,B,C,D) on the wall as shown in Figure 7.
• Now drill the dotted line area and four screw holes (say
A,B,C,D) on the wall as illustrated in Figure 8.
