Matrix COSEC ARGO User Manual

17

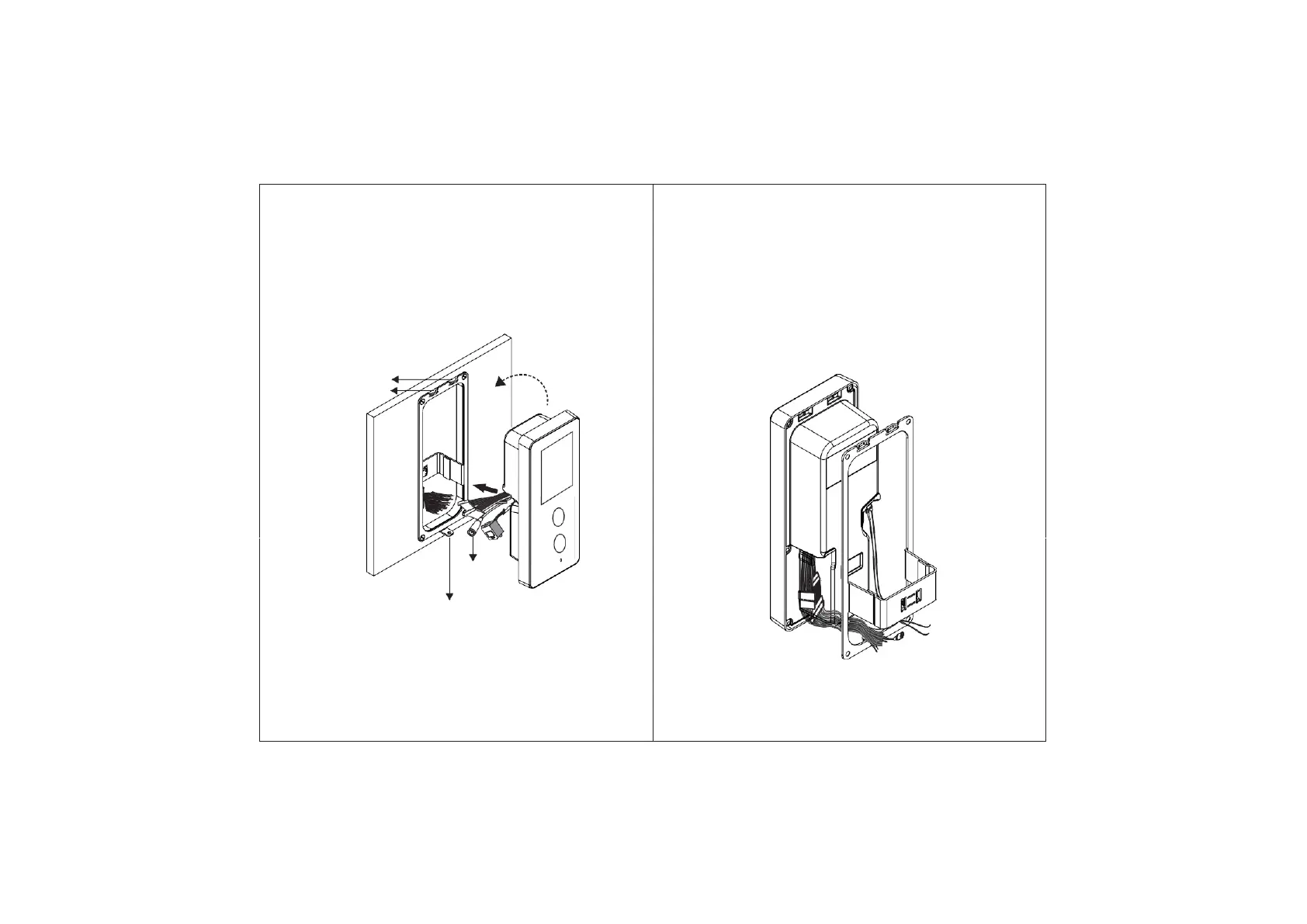

Step 3: Connect the cables of the COSEC ARGO unit and lead
all the cables through the Flush Mounting plate into the
electrical box recessed in the wall.
Figure 10
Mounting
Slots
Cable
Connectors
Mounting
Screw hole
• Keep all the cables parallel to the side of the COSEC ARGO
FACE body in such a way that it should not cover the back
portion of the unit as illustrated in the figure below.
• Radially curve all the cables and lead it through the duct to
fit the flush mounting plate easily with COSEC ARGO.
Figure 11
18

Matrix COSEC ARGO Specifications

General

Brand	Matrix
Model	COSEC ARGO
Category	Controller
Language	English
