Matrix G7-S12 User Manual

12

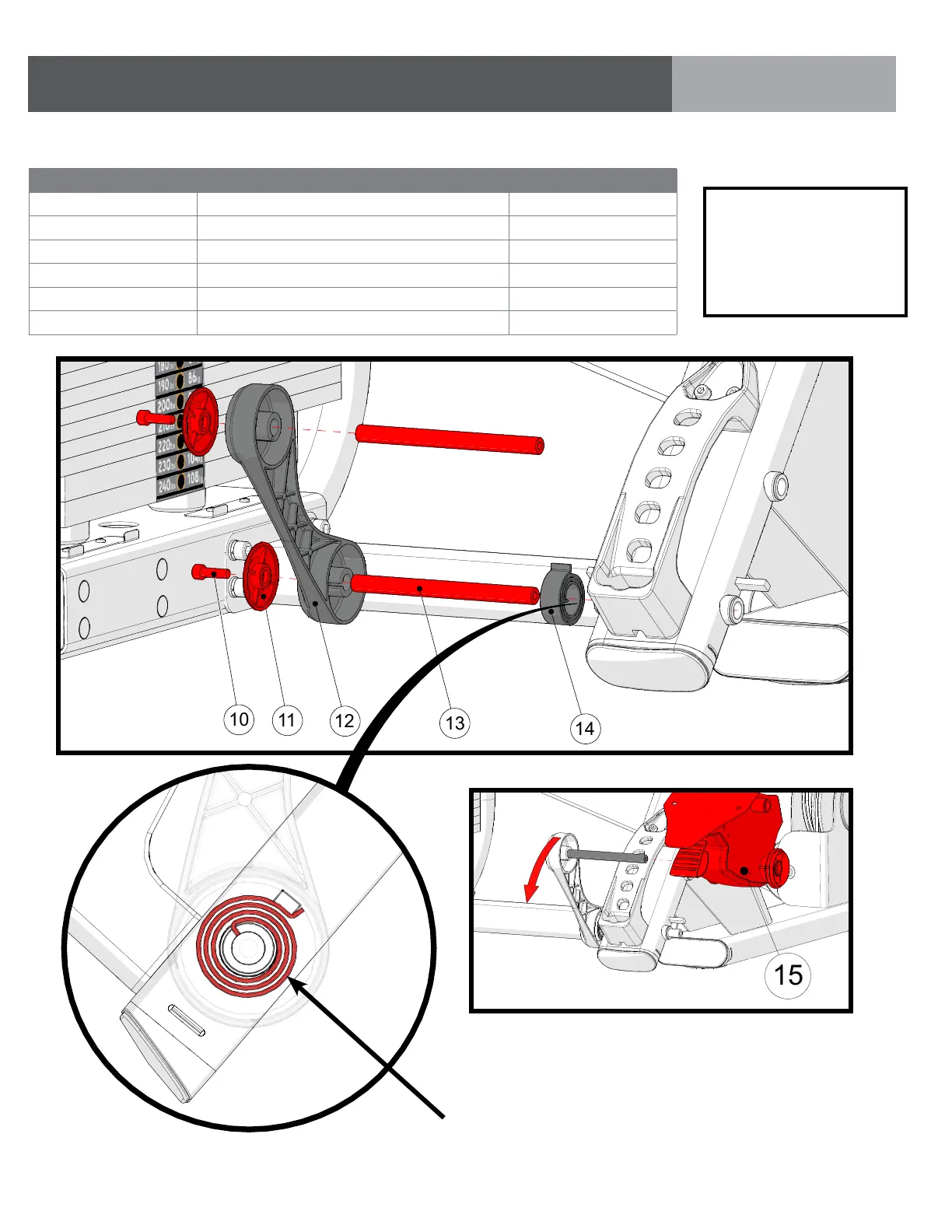

STEP 1 | SEAT LINK ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
10 M8 X 25L SHC 2
11 Medium Pivot Cap 2
12 Seat Link 1
13 Axle 2
14 Spring 1
15 Seat 1
ASSEMBLY
PART 2: SEAT ASSEMBLY
Tightento39N-m/29ft-
lbs.
Outer tab of spring must be secured behind
frame reaction bar.
Ensure bottom links are assembled correctly
by testing spring tension.
10
11
12
13
14
15
*Note: Shoulder Press
seat assembly is shown
-butstepsandcompo-
nents are identical for
the Pec Fly

Matrix G7-S12 Specifications

General

Upholstery Color	Black
Rep Counter	Yes
Weight Stack	250 lb / 125 kg
Weight Stack Increments	5 lb / 2.5 kg
Machine Weight	597 lb / 271 kg
Overall Dimensions	165 x 128 x 173 cm
