ASSEMBLY

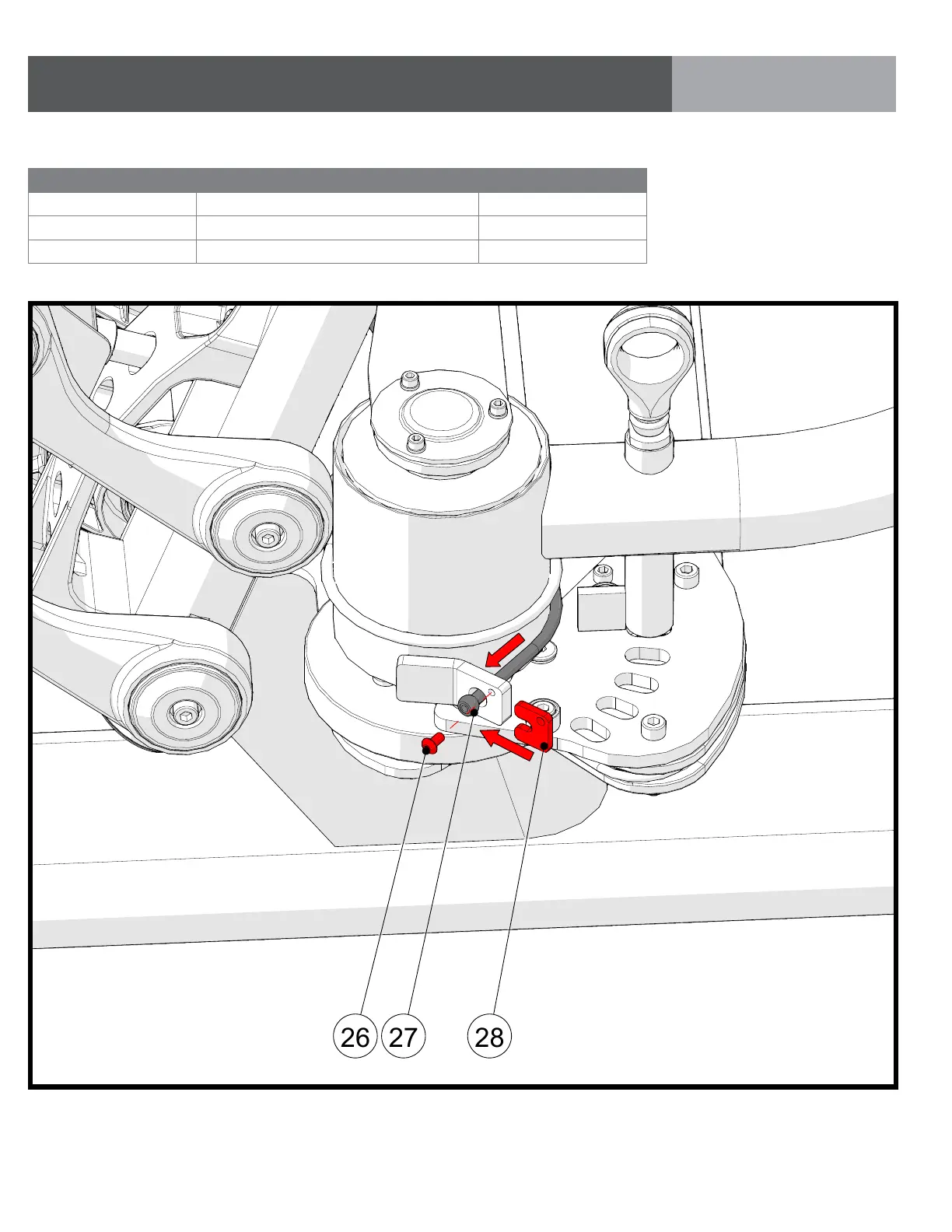

STEP 5 | ROM ADJUSTMENT CABLE ASSEMBLY INSTRUCTIONS & NOTES
PART 3: ARM ASSEMBLY
27
28
26
Torqueto7N-m/5ft-lbs.
ID DESCRIPTION QUANITY
26 M5 X 12L BHC 2
27 ROM Adjustment Cable 2
28 Cable Retainer 2
