Matrix G7-S12 User Manual

20
ASSEMBLY

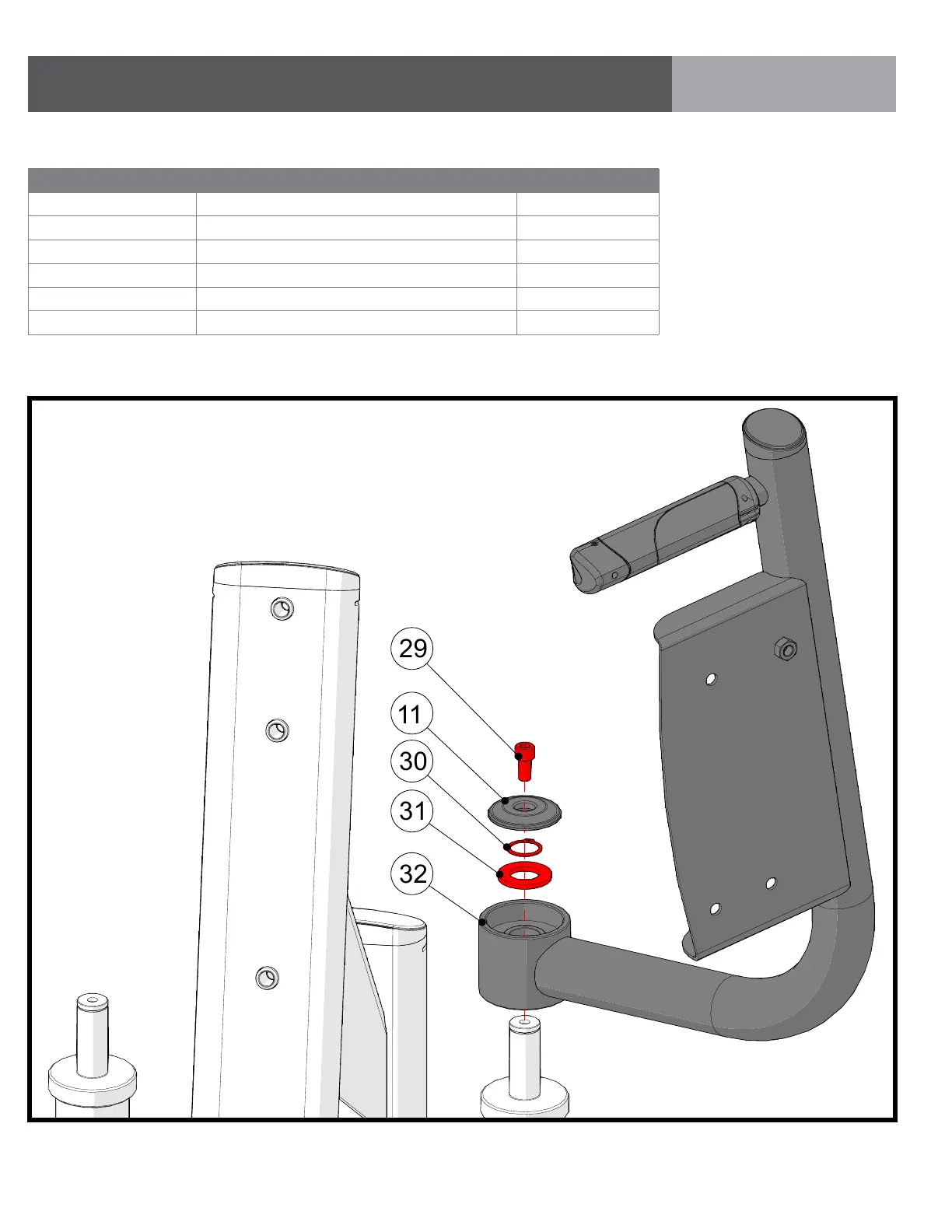

STEP 6 | UPPER ARM ASSEMBLY INSTRUCTIONS & NOTES
PART 3: ARM ASSEMBLY
ID DESCRIPTION QUANITY
11 Medium Pivot Cap 2
29 M10 X 20L SHC 2
30 Snap Ring 2
31 Washer (38 OD) 12
32 Left Upper Arm Assembly 1
33 Right Upper Arm Assembly (Not Shown) 1
32
31
30
11
29
Torqueto77N-m/57ft-lbs.
*Note:Onlyleftsideisshown,quantitiesreectbothleftandright.
