22

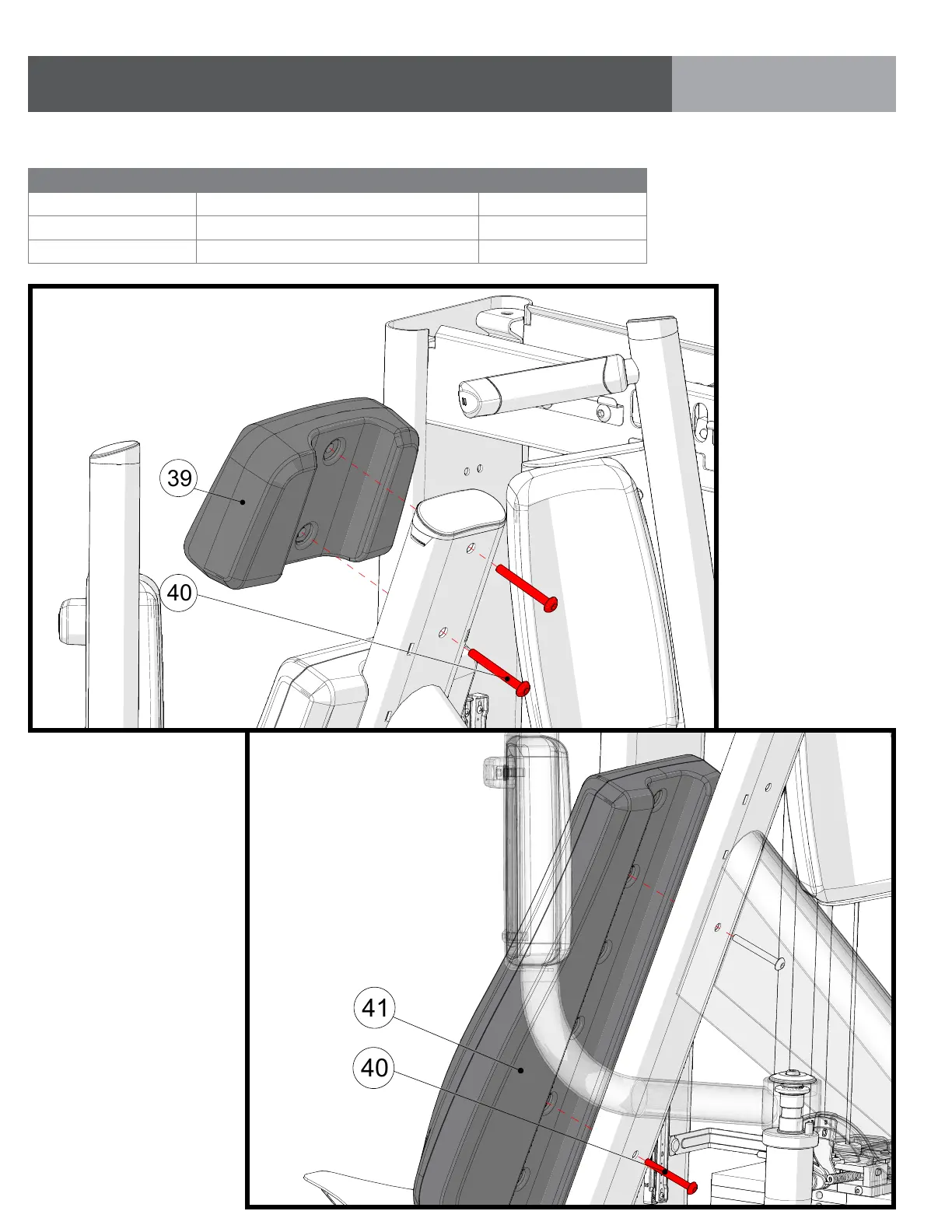

STEP 2 | BACK PAD ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
39 Head Rest Assembly 1
40 M10 X 75L BHC 4
41 Back Pad Assembly 1
ASSEMBLY
PART 4: PAD ASSEMBLY
Install the pads as
shown.
Tightento27N-m/
20ft-lbs.
40
41
39
40
