11
PART 1: USER FRAME ASSEMBLY
STEP 2 | USER FRAME INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
3 M10 X 30L Hex Bolt 4
4 M10 Saddle Washer 4
5 Left Footpad Frame 1

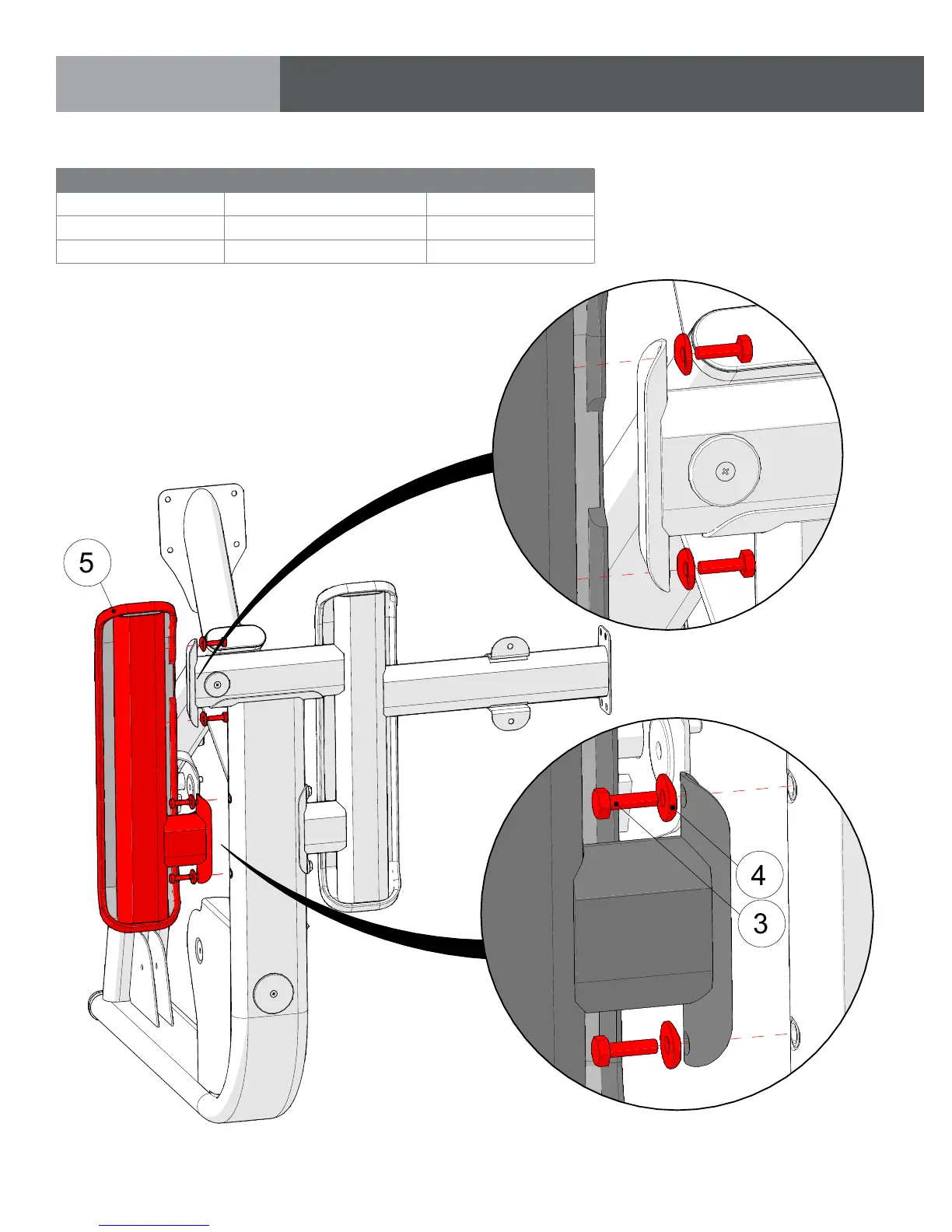

ASSEMBLY
5
4
3
Tip frame as shown to access hardware.
DO NOT FULLY TIGHTEN
