Matrix G7-S33 User Manual

15
STEP 1 | CAM & CABLE ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
7 M10 Flat Washer 1
9 M10 Nylock Nut 1
12 M10 X 110L SHC 1
13 Large Pivot Cap 1
14 CAM 1
15 Weight Stack Cable 1
ASSEMBLY

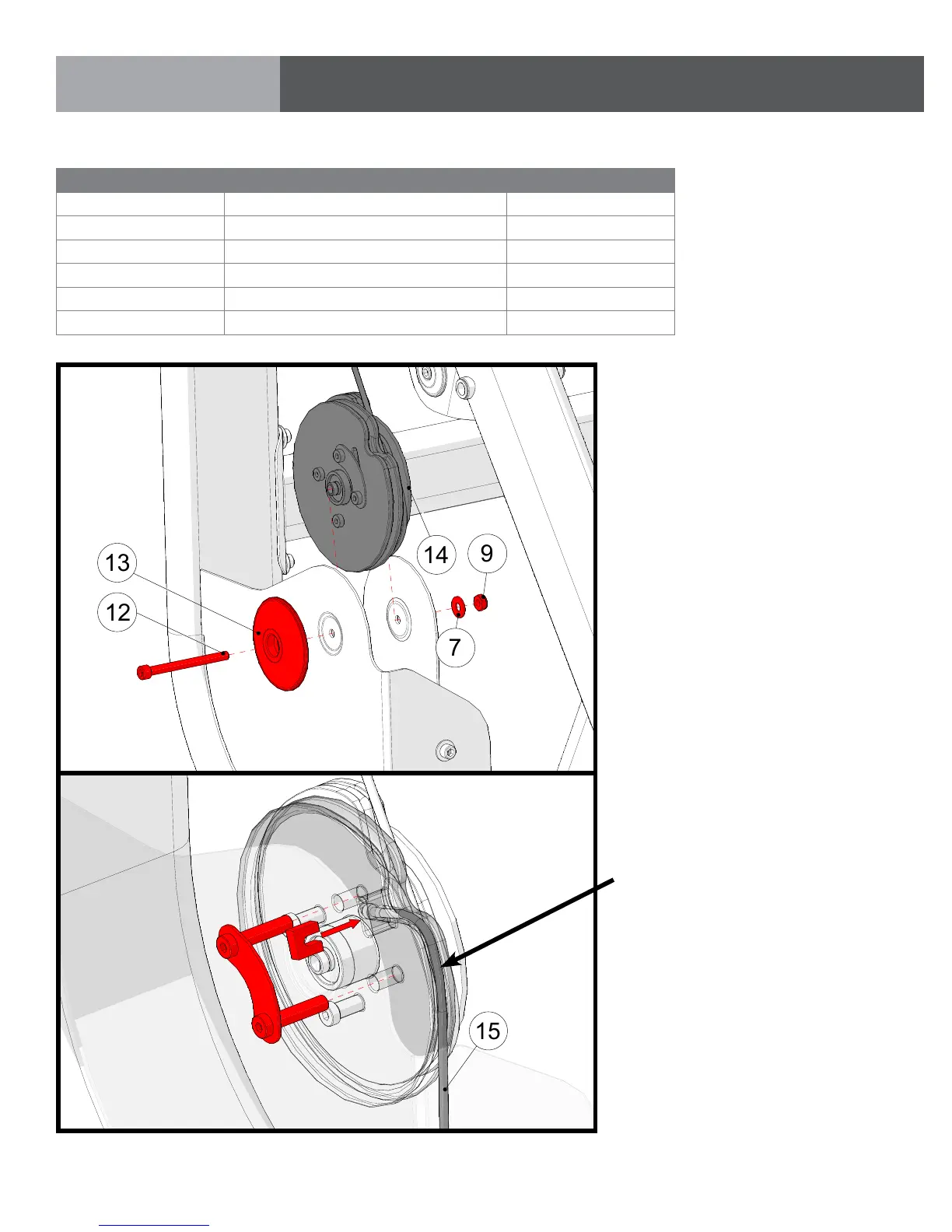

PART 2: CAM/CABLE ASSEMBLY
Assemble CAM as shown, locat-
ing the larger CAM away from
the weight stack. Tighten to 77
N-m/57 ft-lbs.
7
9
13
14
12
15
Separate CAM to assemble
weight stack cable as shown.
Capture cable with forked clip
and orient as shown. Tighten to
16 N-m/142 in-lbs.
