16

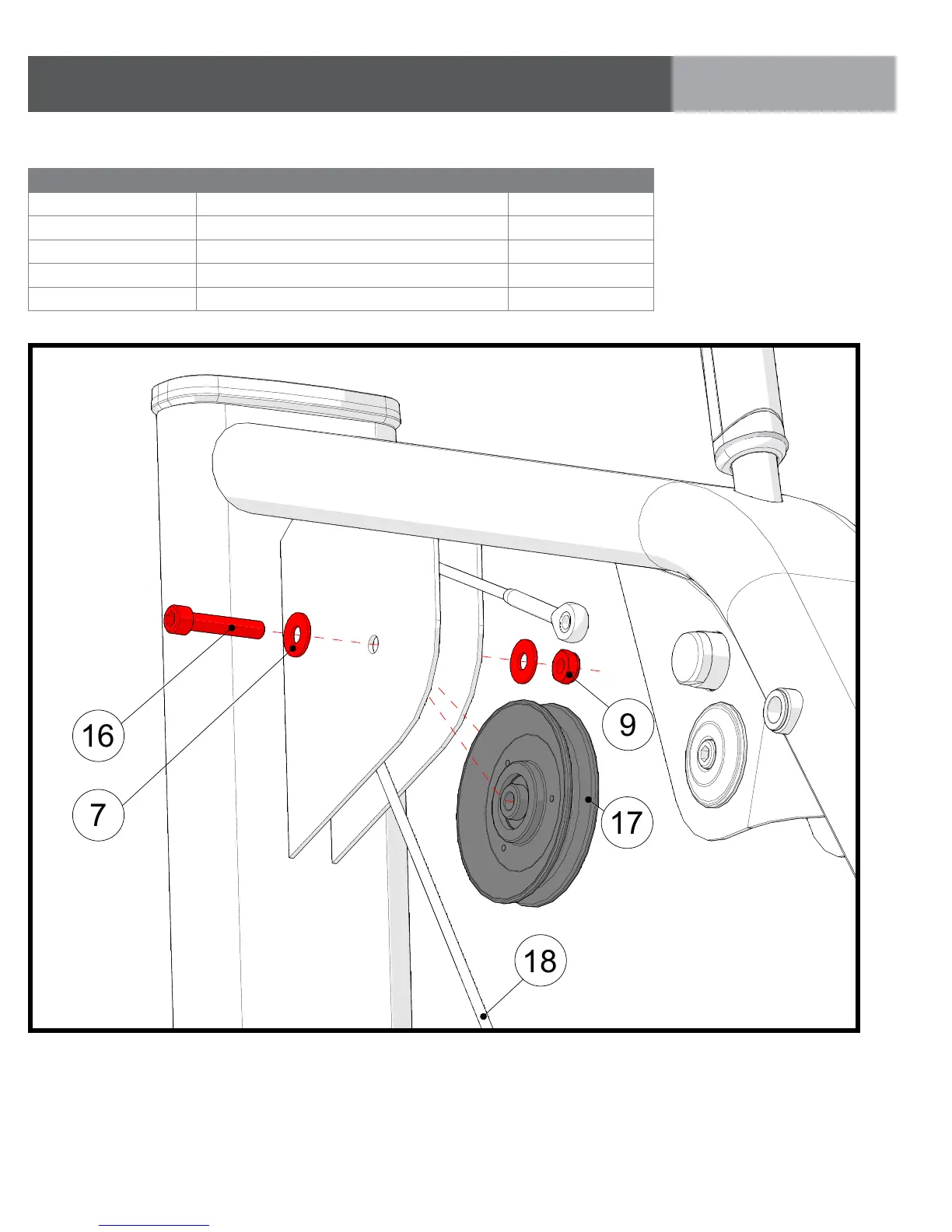

STEP 2 | USER FRAME CABLE INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
7 M10 Flat Washer 2
9 M10 Nylock Nut 1
16 M10 X 50L SHC 1
17 Pulley 1
18 User Frame Cable (Preassembled to CAM) 1
ASSEMBLY
PART 2: CAM/CABLE ASSEMBLY
Torque to: 77 N-m/57 ft-lbs.
9
7
16
17
18
