23

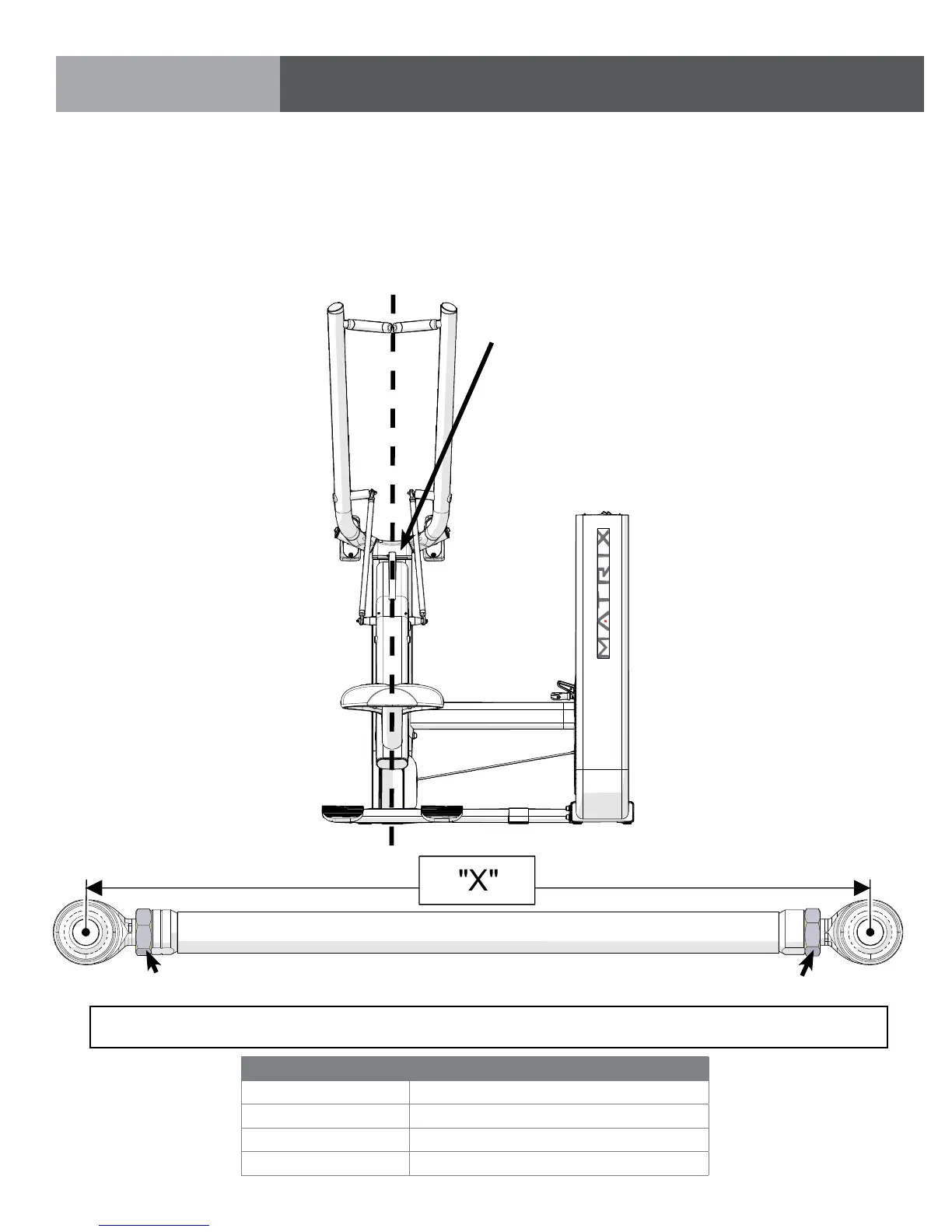

Before fully tightening the pivot block, ensure that the arms are symmetrical
about the centerline of the machine. The left and right hand grips should be cen-
tered to the user.
ASSEMBLY
STEP 6 | ARM POSITIONING INSTRUCTIONS & NOTES
PART 3: ARM ASSEMBLY
Tie Rod lengths must be adjusted according to machine.
To adjust length: loosen jam nuts, turn center rod, tighten jam nuts
Machine Tie Rod Length (“X”)
Chest Press 722.5 mm (28.4”)
Shoulder Press 360.0 mm (14.2”)
Lat Pulldown 555.0 mm (21.9”)
Seated Row 350.0 mm (13.8”)
Jam Nut
Jam Nut
Tighten pivot block to 77 N-m/57 ft-lbs.
Tighten four bolts of pivot block, and then back
out one bolt to apply red Loctite 272, replace
bolt to proper torque. Repeat steps for three
remaining bollts.
