Powering the Camera
• Connect the Ethernet cable to LAN port and Power cable to the 12V
DC power supply.
Power over Ethernet (PoE)
The IP camera is PoE- compliant, allowing transmission of power and
data via a single Ethernet cable connected to PoE switch.
In Premium variants, connect Audio I/O cables if required.
1. Audio Input device such as Mike to the Audio input cable of the
camera can be connected. The audio when enabled will be recorded
with the video and will be available at the monitoring location.
2. Audio Output device such as earphone or speaker to the Audio
Output cable of the camera can be connected. This will generate audio
received from the network.

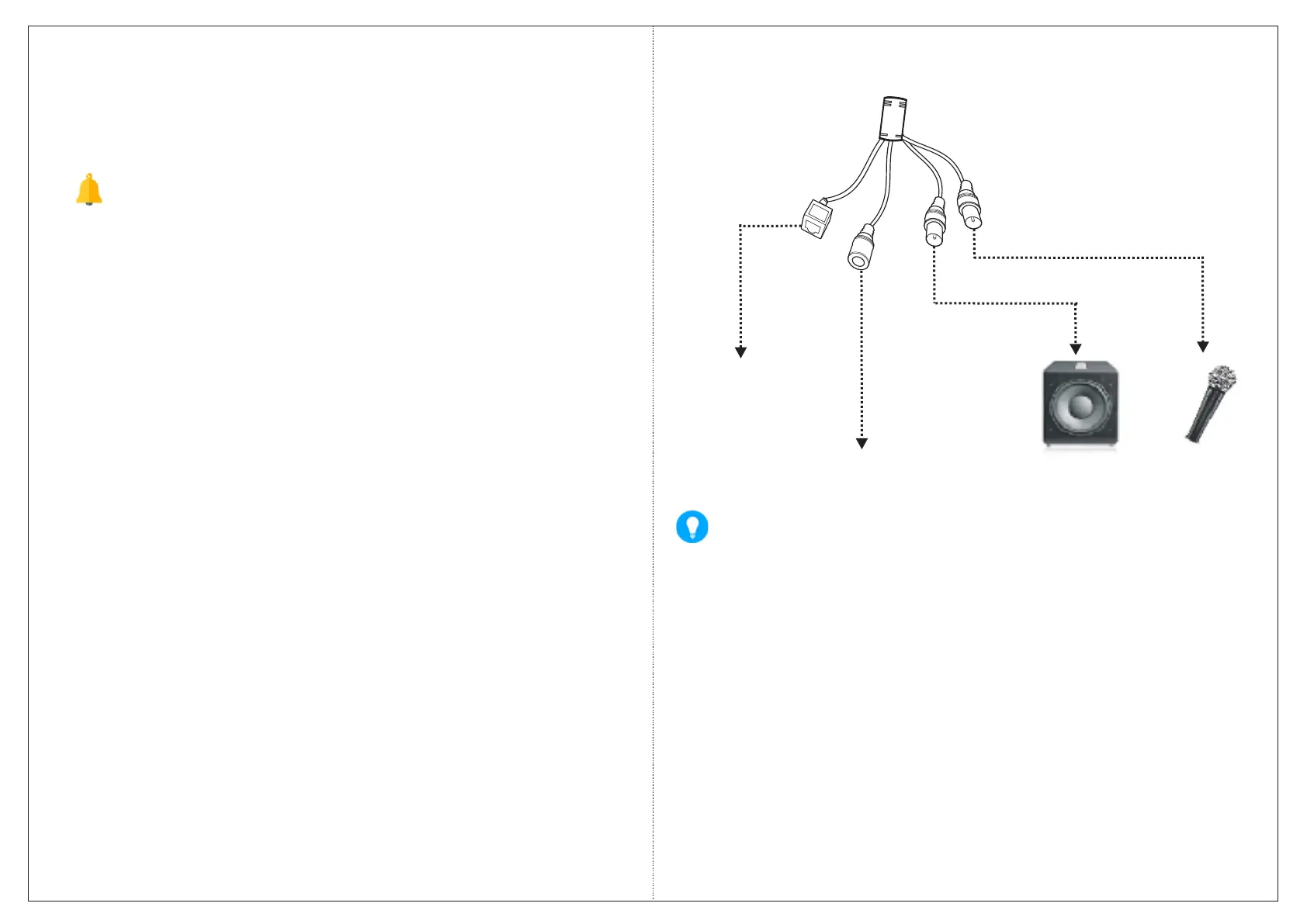

19
20
Audio IN
Audio Out
12V DC @2A
Ethernet
LED: CLASS1 (Category RS1)
Never look at the transmit laser while the power is on. Never
look directly at the fiber ports and the fiber cable ends when
they are powered on.
Use of controls or adjustment to the performance or procedure
other than those specified herein may result in hazardous laser
emission.
If devices such as Mike and Speaker can be connected to
Audio IN and Audio OUT, you may need to connect an external
power source if their power requirements are not fulfilled with
the camera adapter.
