Matrix SETU VFX Quick Start 3
Ports and Connectors

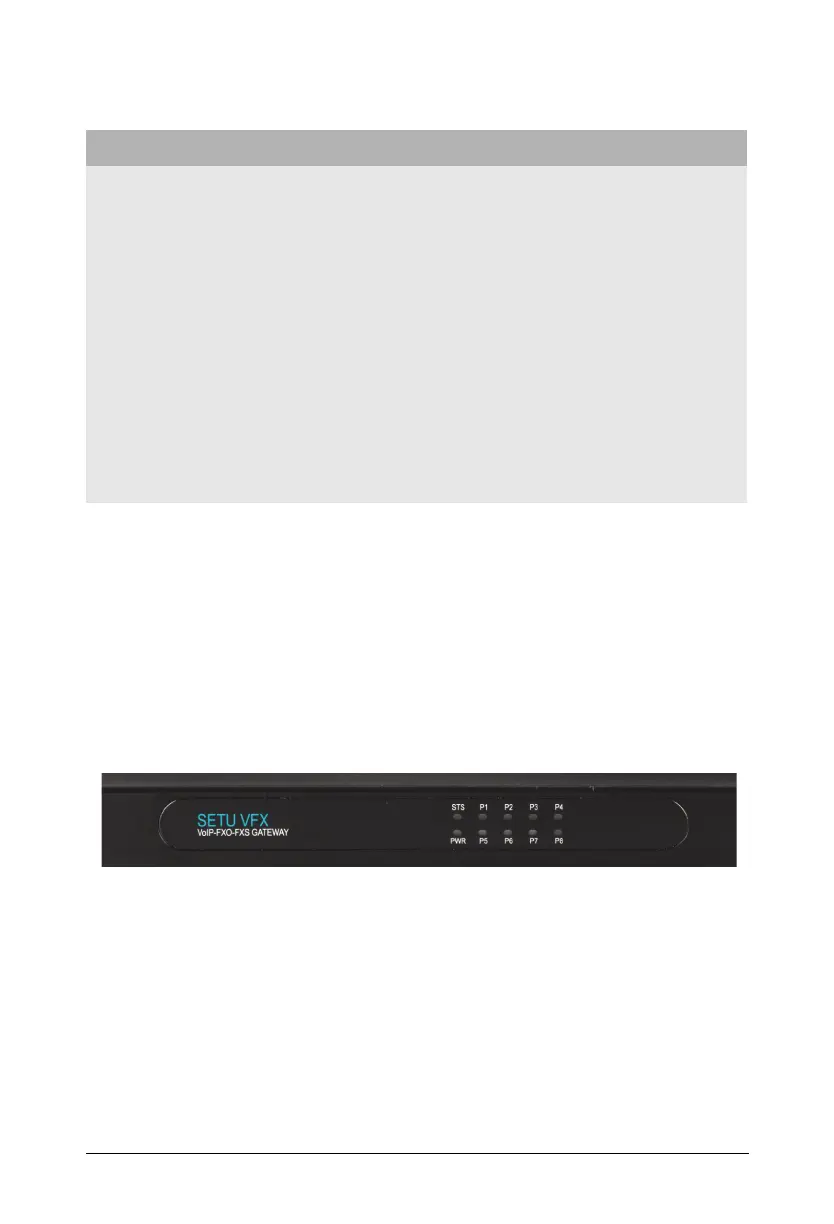

LEDs
SETU VFX has total 10 LEDs. One for Power (PWR), one for Status (STS) and eight Port LEDs (P1
to P8). The LEDs indicate the status of the ports and various events occurring on the ports,
including errors.
To each LED, except Power and Status, you can assign a port of your choice. So, if required, you
can assign some or all of these LEDs to SIP Trunks. To know more, see Port LED topic under
Maintenance in the System Manual.
SETU VFX is easy to install and operate. The built-in web server, Jeeves, allows you to configure
the system parameters and features on-site as well as from a remote location.
Port Connector Description
12VDC-2A DC Jack To connect 12VDC, 2A Power Adapter.
P1 to P8 (FXO
a
)
a. FXO Port is available only in VoIP-FXO Gateway.
RJ11 To connect PSTN lines or a PBX.
P1 to P8 (FXS
b
)
b. FXS Port is available only in VoIP-FXS Gateway.
RJ11
To connect standard Telephone Instruments, or a Fax Machine or
a PBX.
LifeLine Port
c
c. Life Line Port is available only in VoIP-FXS Gateway.
RJ11 To access PSTN line during power failure/emergency conditions.
Reset Button --- To restart the system or to restore the default LAN IP Address.
USB Port --- Unused
WAN Port RJ45
To connect to the IP network over a DSL Modem or Router or a
LAN Switch.
LAN Port RJ45 To connect a computer or a LAN Switch.
