Matrix SETU VFXTH User Manual

6 Matrix SETU VFXTH Quick Start
If connecting to a Private Network (Behind a NAT Router),
• Plug one end of the Ethernet cable into the Ethernet Port of SETU VFXTH and the other
end into the LAN Switch/Hub.
The default IP Address of the Ethernet Port is: 192.168.1.100
The default Subnet Mask of the Ethernet Port is: 255.255.255.0
Connecting to the CO Network
• Connect the Trunk Lines from the CO Network to the FXO Ports of SETU VFXTH using
standard, good quality, twisted-wire pair of cables with RJ11 plugs.
You may also connect a PBX to the FXO port.
Connecting Telephone instruments
• Connect the analog single line telephone instruments to the FXS ports of SETU VFXTH using
standard, good quality, twisted-wire pair of cables with RJ11 plugs.
You may also connect a Fax machine or a PBX to the FXS port.

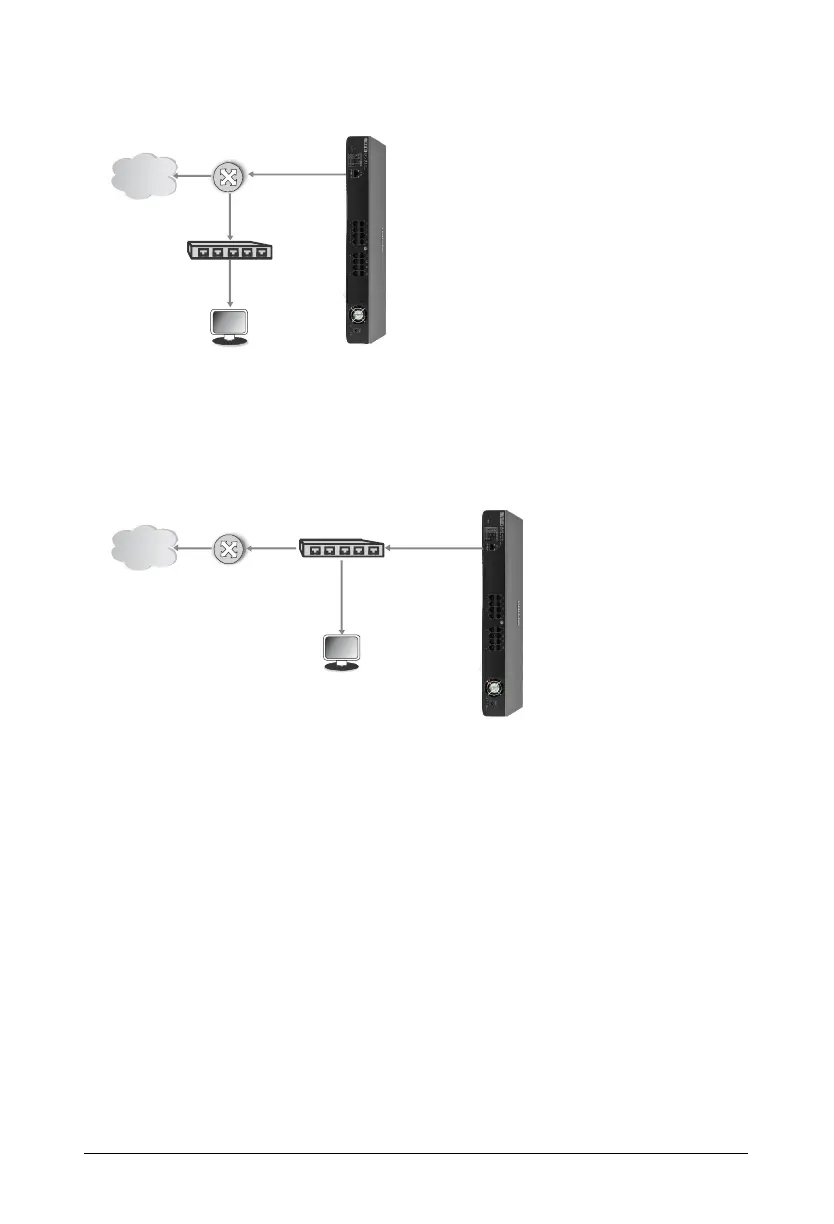

IP
Router/
Modem
SETU VFXTH
LAN Switch/
HUB
Computer
Ethernet
WAN
IP
Router/
Modem
SETU VFXTH
LAN Switch/
HUB
Computer
Ethernet
WAN

Matrix SETU VFXTH Specifications

General

Brand	Matrix
Model	SETU VFXTH
Category	Gateway
Language	English
